Crestron MPC-M5-W

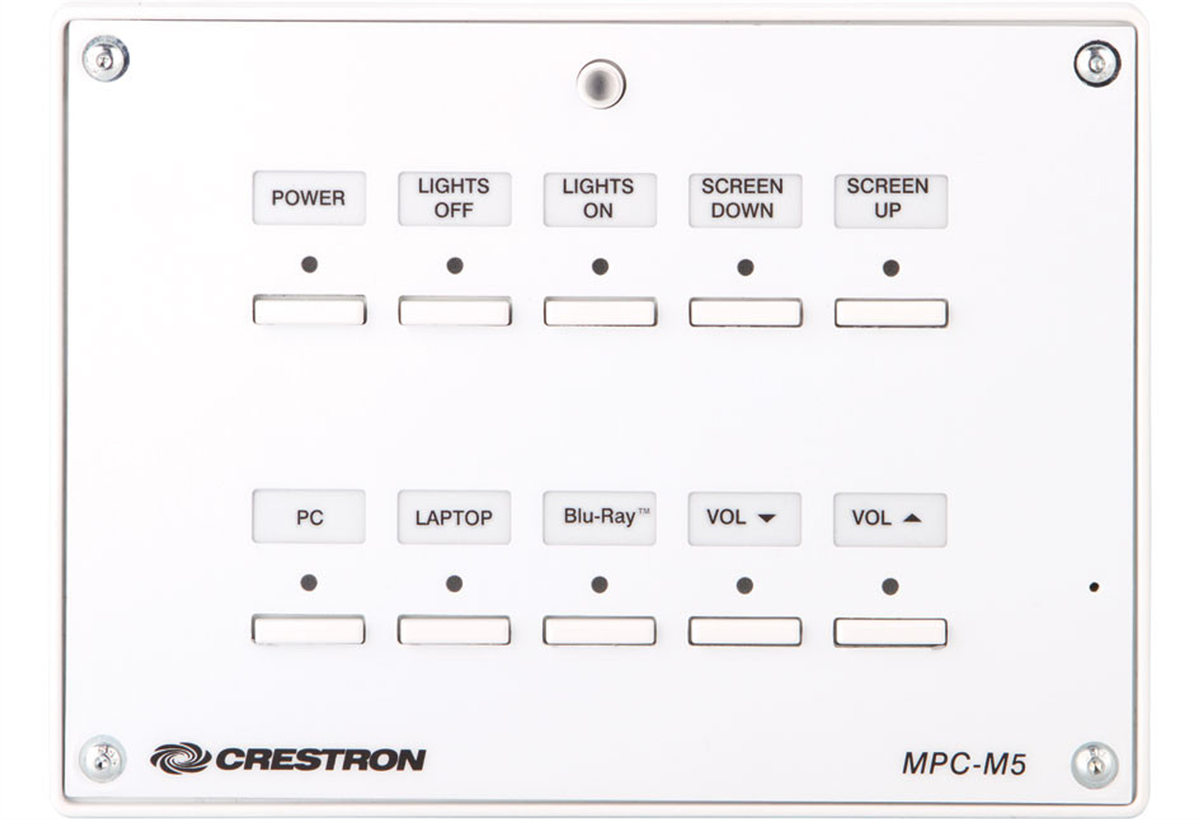

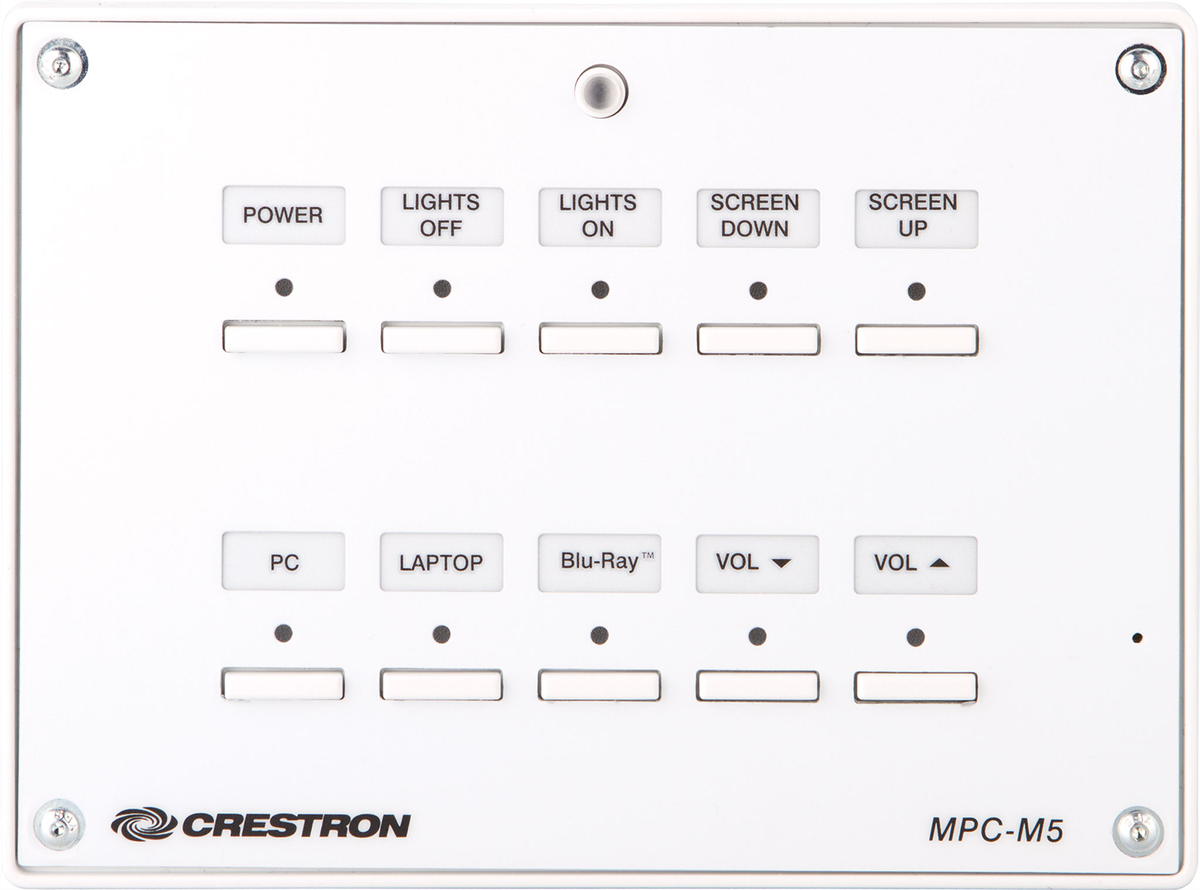

The Crestron MPC-M5 Media Presentation Controller combines a ten-button control keypad and a control processor in a single wall-mounted unit, giving a classroom or meeting room a simple front panel for power, source, and volume. Each button carries LED feedback and customizable backlit labels, and a built-in IR receiver lets it respond to Crestron or RC-5 handheld remotes. It runs on a Crestron 2-Series engine with a real-time, preemptive multitasking kernel.

The MPC-M5 interfaces with projectors, displays, lighting, shades, and other room gear through onboard RS-232, IR/serial, two Versiport inputs, and two isolated relays. It draws its operating power over the network through a single PoE Ethernet connection, hosts an e-Control web server for browser-based control, and integrates with Crestron Fusion Cloud for enterprise room management. This is the white version.
