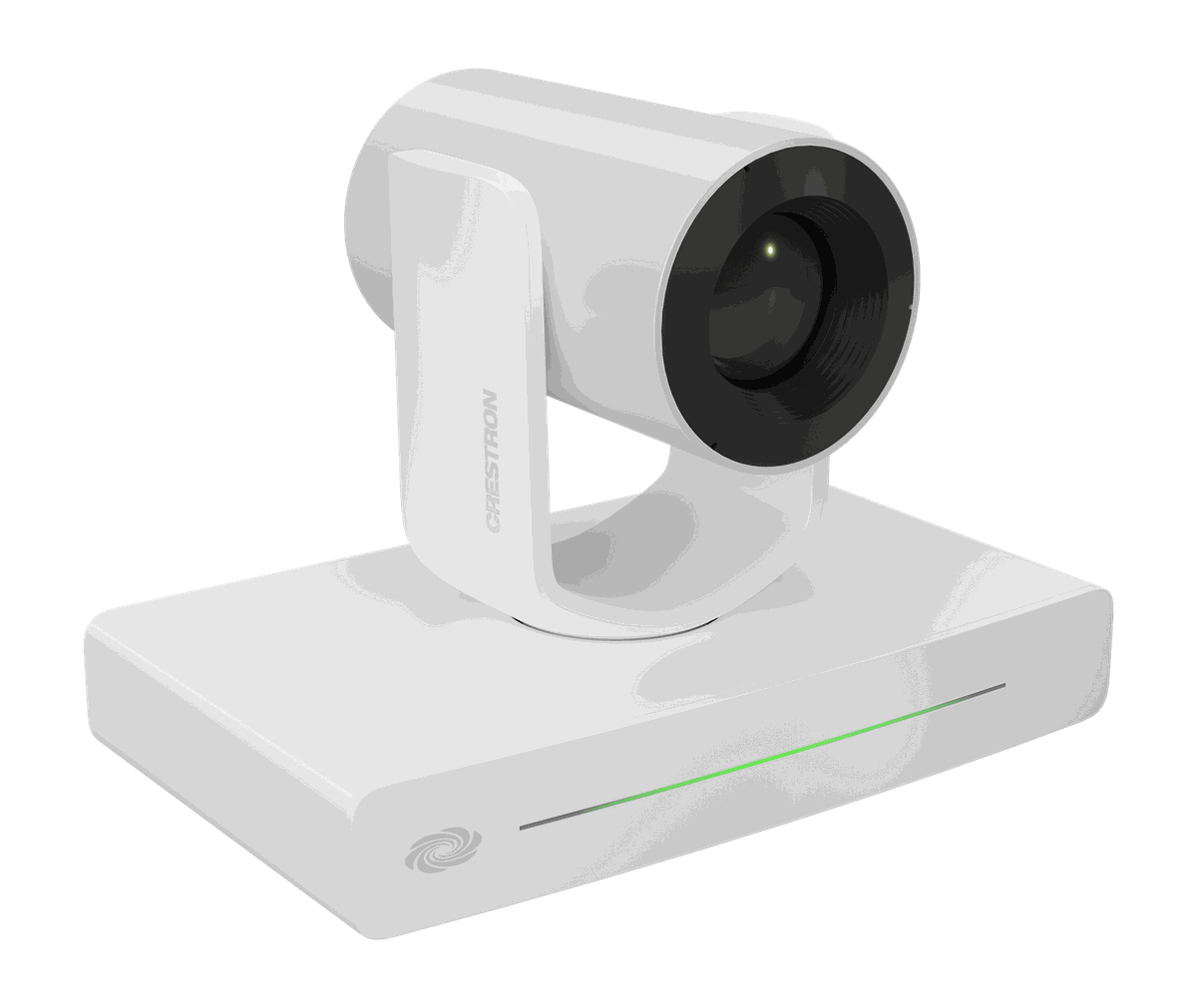

Crestron 1 Beyond IV-CAM-P20 PTZ Camera, 20x Zoom

The p20 covers the same ground as the p12 with longer glass: a 1/2.8 Sony CMOS sensor behind a 20x optical block at up to 1080p60, sized for large and extra-large rooms where a single camera has to reach several seating areas from the back wall. Image flip allows inverted mounting, and up to 256 presets hold the standing shots. In an Automate VX system it takes the close-up on the active speaker.

A single Ethernet cable carries PoE power, viewing, control and NDI|HX2 video, with 3G-SDI, HDMI, USB, ONVIF, RTSP and UVC also available. Control runs over VISCA on TCP or UDP, PELCO-D, PELCO-P or ONVIF, plus RS-232/485 on a detachable terminal block. The rear USB port connects to a codec for Microsoft Teams and Zoom Rooms use, and setup is through Crestron 1 Beyond Camera Manager 2. A colour-matched IV-CAMA-UMB universal mounting bracket is included.

Image Sensor	1/2.8 Sony CMOS sensor
Optical Zoom	20x; focal length F=5.2-94 mm, iris F1.5-F3.0
Field of View	56.45 degrees horizontal; pan -130 to 130 degrees, tilt -30 to 90 degrees
Video Outputs	3G-SDI, HDMI, USB, NDI\|HX2, ONVIF, RTSP, UVC; up to 1080p60
Presets	Up to 256 configurable presets
Power	IEEE 802.3af Class 3 PoE, 15.4 W; PW-1225DU power pack sold separately
Included	IV-CAMA-UMB universal mounting bracket, colour matched
Dimensions	6.51 in H x 8.90 in W x 5.86 in D (165 x 226 x 149 mm); 4.12 lb (1.87 kg)
