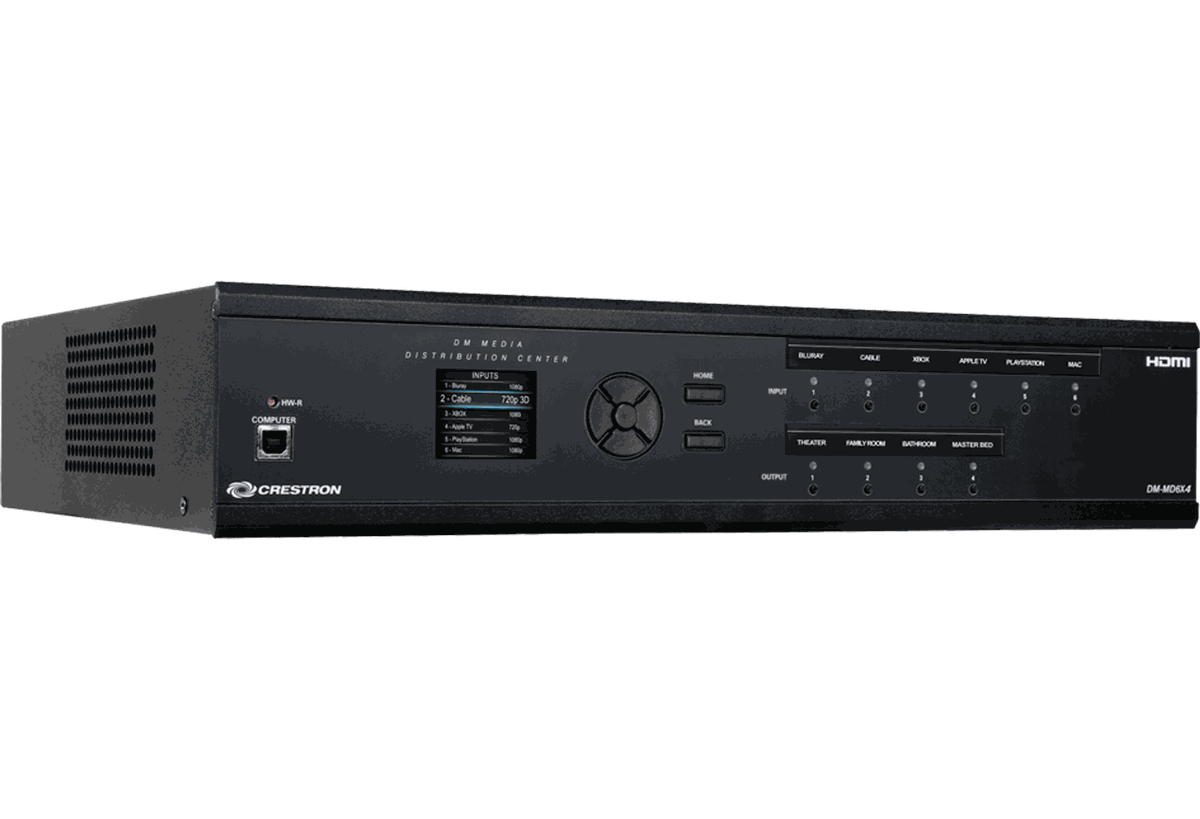

Crestron DM-MD6X4 6x4 DigitalMedia Distribution Center

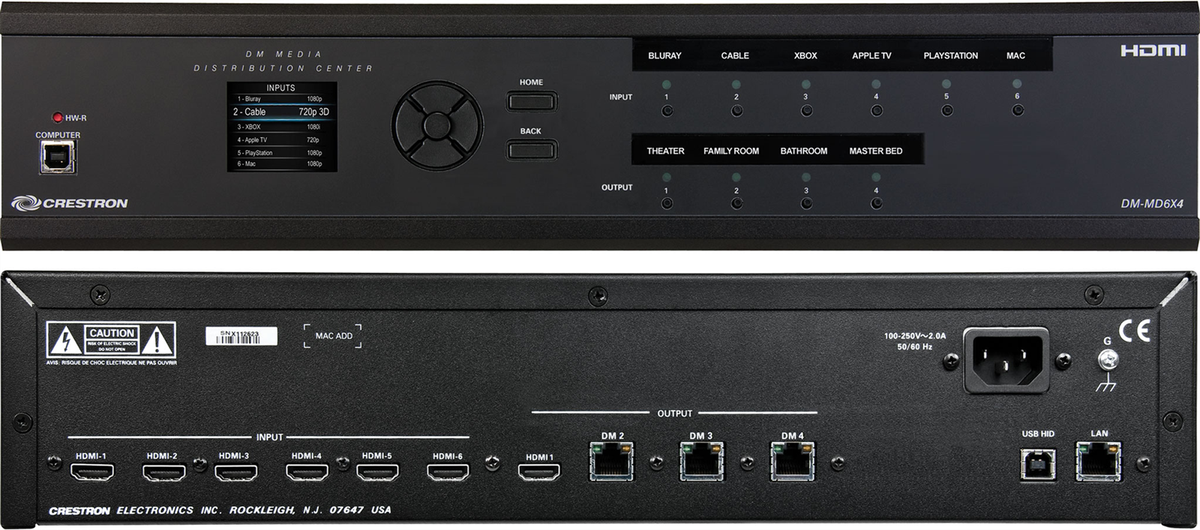

The Crestron DM-MD6X4 DigitalMedia Distribution Center is a compact, fixed 6x4 matrix that distributes multiple high-definition sources to as many as four rooms as part of a complete Crestron system. It takes six HDMI inputs and provides four outputs: one local HDMI for a display or audio processor at the head end, and three DM 8G display outputs that carry uncompressed HD video, audio, and Ethernet over a single CAT5e run to remote displays up to 330 feet away.

Built on DigitalMedia 8G+ and HDBaseT with Crestron QuickSwitch HD, the DM-MD6X4 routes any source to any display while supporting resolutions up to WUXGA 1920x1200 and 1080p60, HDMI Deep Color, and 7.1-channel lossless audio. It gives smaller whole-home and light-commercial jobs true one-wire distribution without the cost of a modular card-frame switcher.
