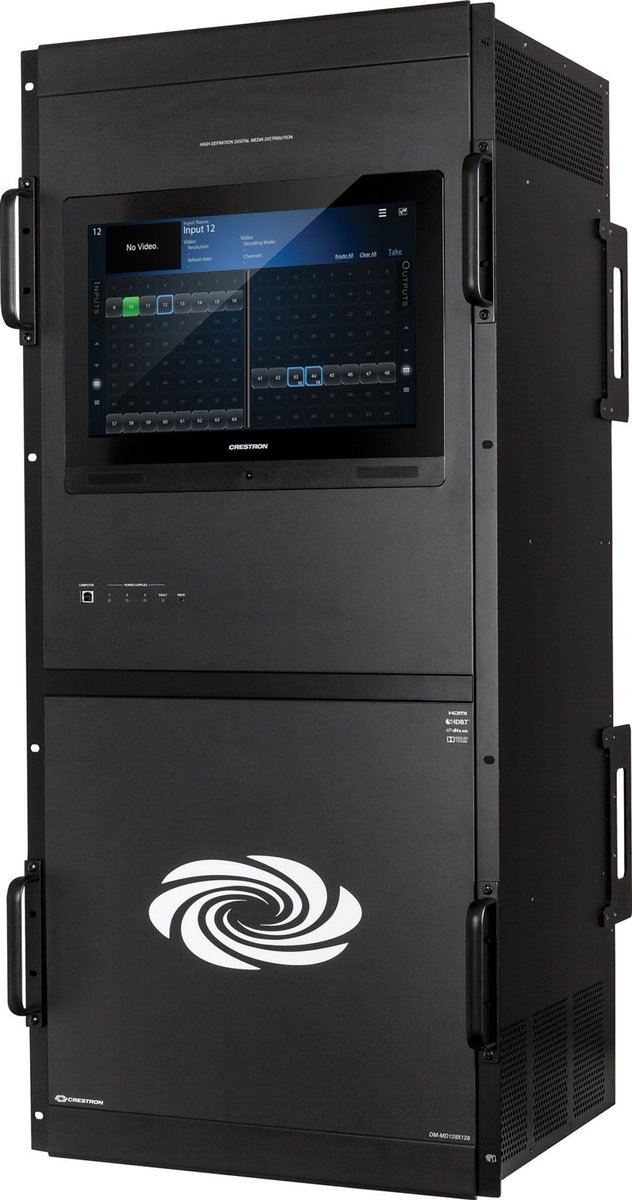

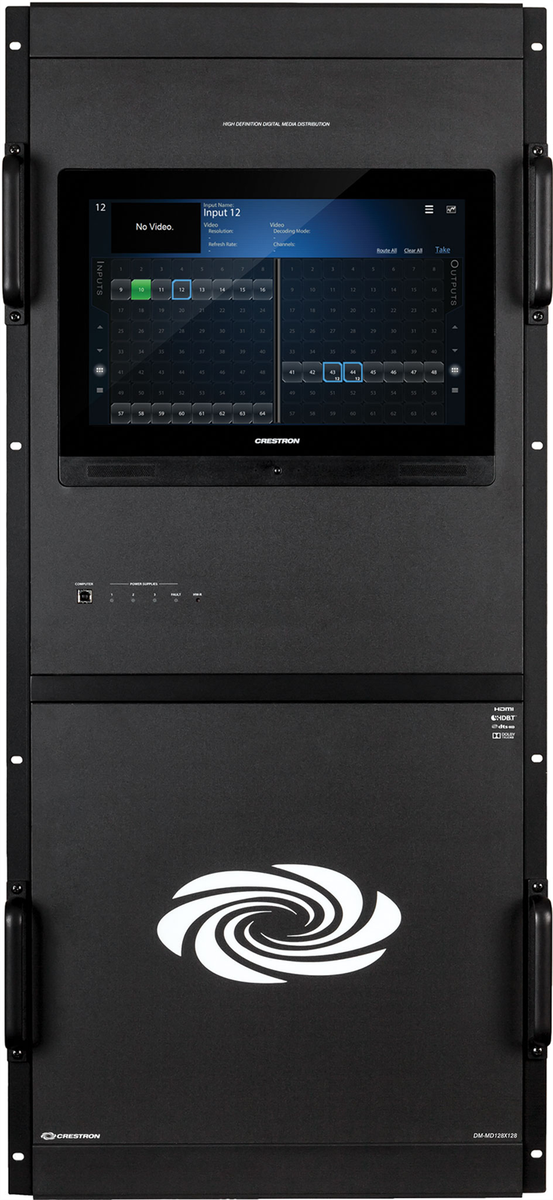

Crestron DM-MD128X128 128x128 DigitalMedia Switcher

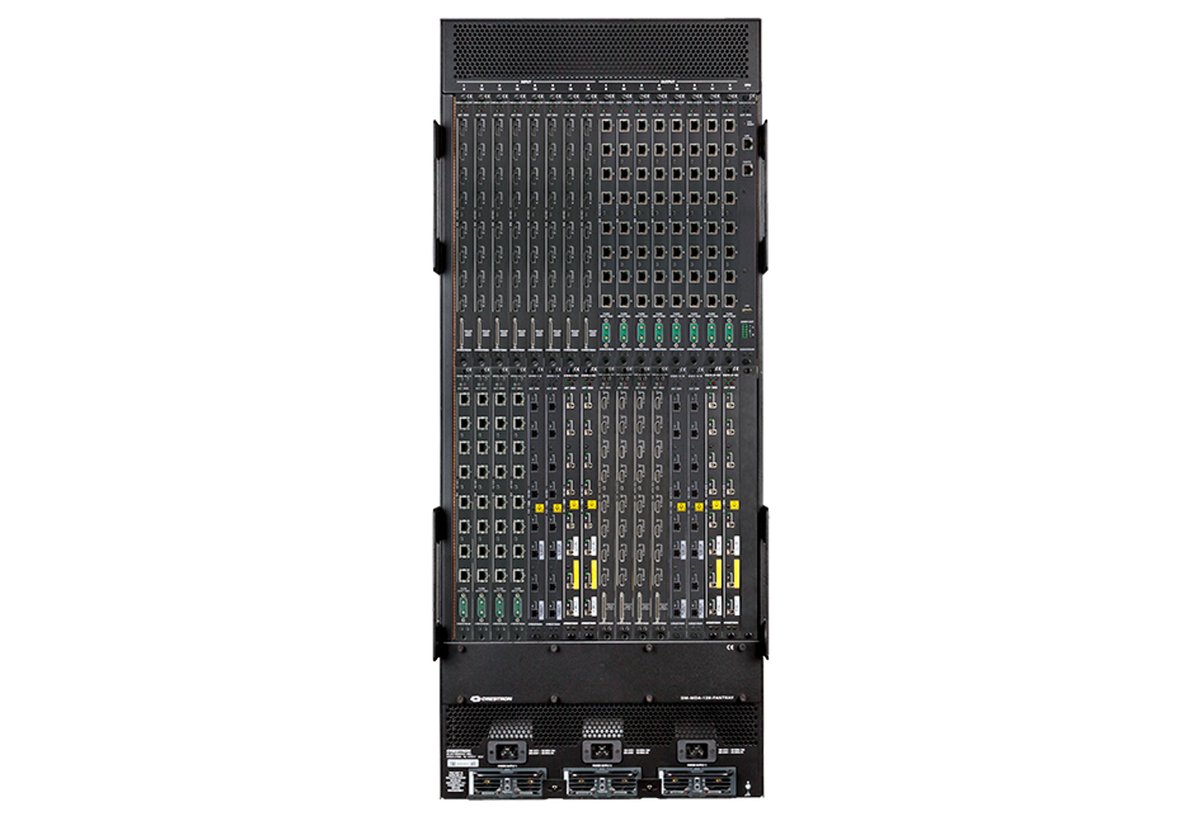

The Crestron DM-MD128X128 is a blade-based 128x128 DigitalMedia matrix switcher for the largest signal-routing projects, moving lossless HD and 4K video and audio from up to 128 sources to 128 displays over CAT twisted pair or fiber. The chassis is populated with hot-swappable input and output blades, sixteen of each, so a very large system can be expanded or serviced a blade at a time without dropping the entire matrix.

It provides complete management for SD, HD, UHD, 2K, 4K, and computer signals, with HDCP support, EDID resolution management, CEC signal management, USB signal routing, and an integrated Ethernet switch. For mission-critical reliability the switcher ships with three hot-swappable DM-MDA-128-PWS power supplies and continues to operate if one fails. The DMB-4K-CPU-128 blade runs the chassis, which mounts in a 24U rack.
