Crestron AMP 8075
The Crestron AMP-8075 is an eight-channel Class D power amplifier in the Avia AMP-8000 series, designed to feed the loudspeakers in a commercial installation driven by an Avia DSP. Each channel delivers 75 watts into 4 or 8 ohm Lo-Z loads, and any channel can be switched in software to Hi-Z operation for 70V distributed speaker lines. Adjacent channel pairs can run as a stereo pair under a single set of controls, or be bridged to combine into a single 150 watt output into 8 ohms.
This is the North America and Japan model, running on 100-120V AC line power. Balanced line-level inputs on detachable terminal blocks accept levels up to +24 dBu, and the eight channels of amplification fit in a single rack unit. Front rack ears and rear support brackets are included for freestanding or 1U 19-inch rack mounting.
| Channels | 8 |
|---|---|
| Power Output | 75 W per channel at 4-8 ohms or 70V |
| Bridged Output | 150 W per channel pair at 8 ohms |
| Frequency Response | 20 Hz to 20 kHz +/-0.5 dB at 1 W, 4-8 ohms |
| THD+N | <0.1% at 1 kHz, 3 dB below clipping |
| S/N Ratio | >103 dBA, 20 Hz to 20 kHz |

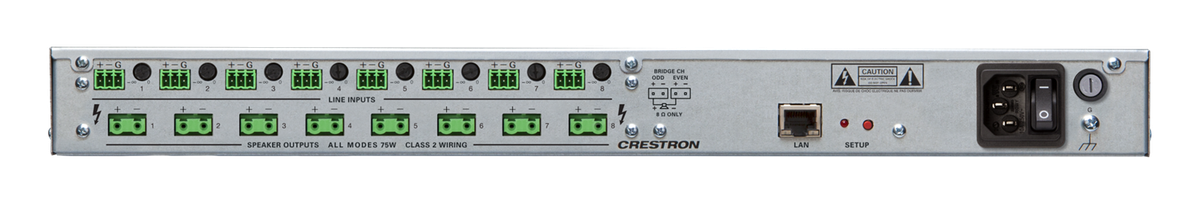

| Inputs | Balanced line-level, max +24 dBu, 20k ohm |
| Form Factor | 1U 19-inch rack-mountable |
| Power | 100-120V AC (North America and Japan) |
| Weight | 12.6 lb |
