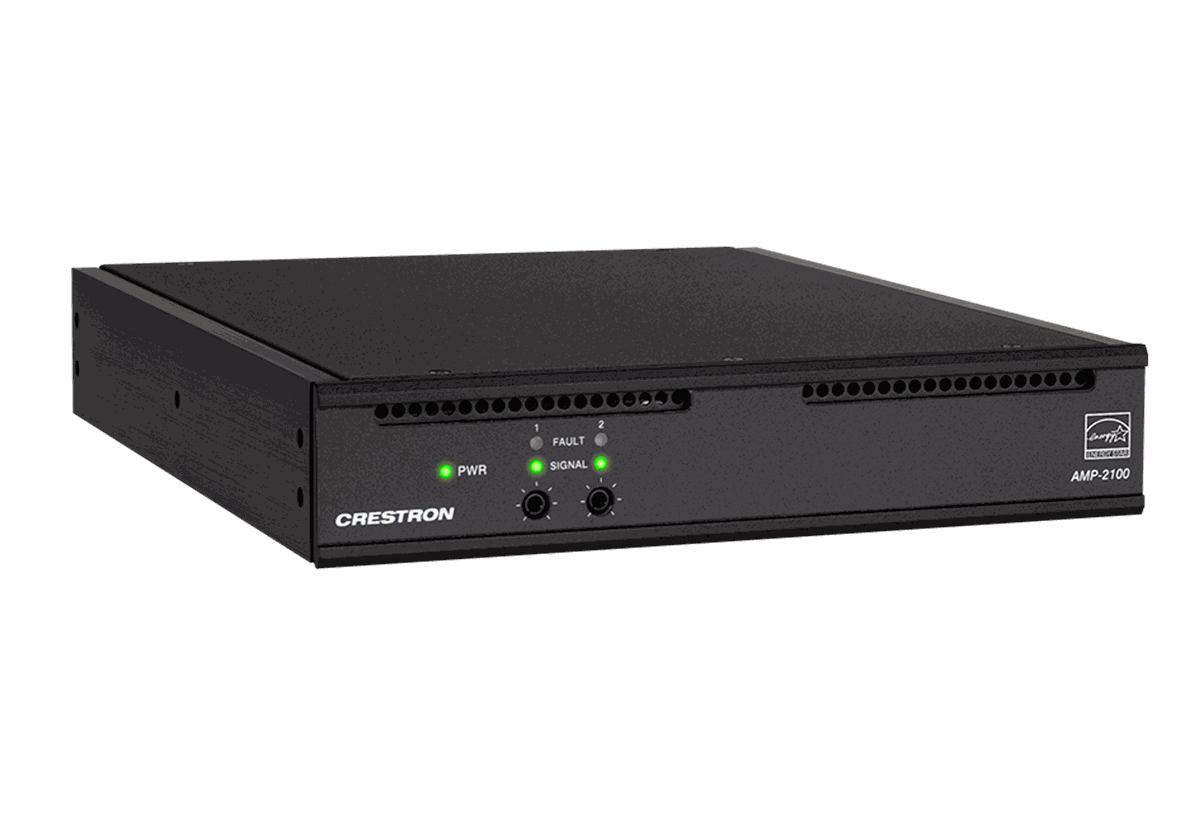

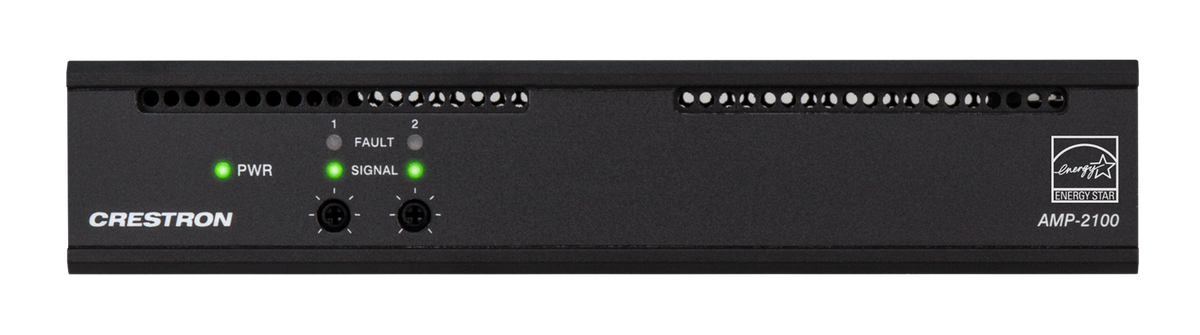

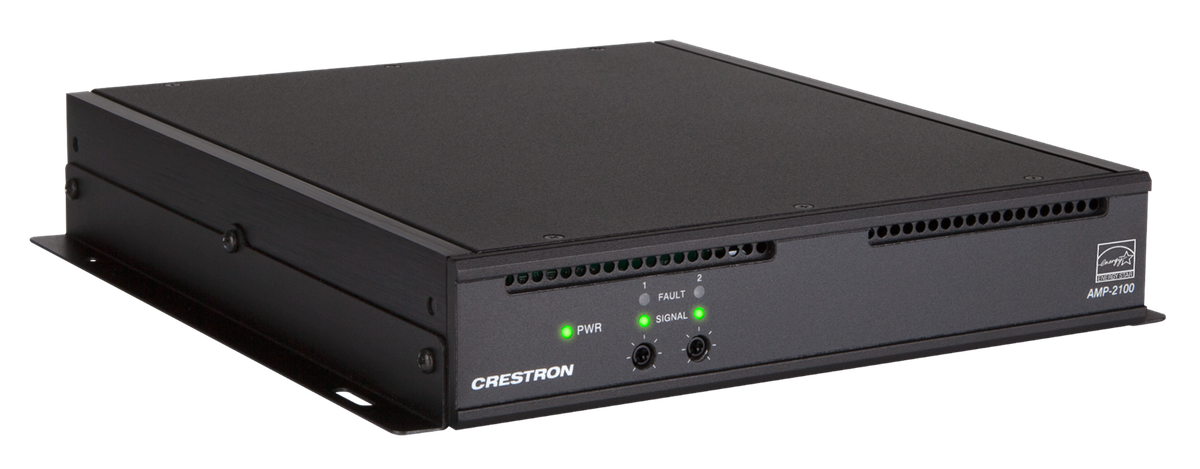

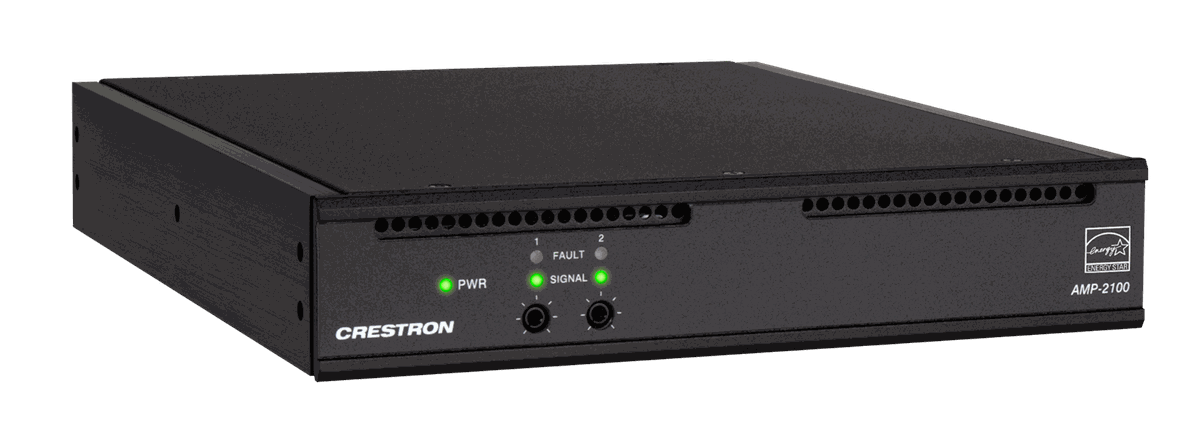

Crestron AMP 2100 70
The Crestron AMP-2100-70 is a two-channel Class D power amplifier that delivers 100 watts per channel onto 70V constant-voltage distribution lines. Constant-voltage wiring lets each channel feed a long run of ceiling or wall speakers over inexpensive cable, which makes it a flexible engine for two-zone paging and background music in commercial spaces.

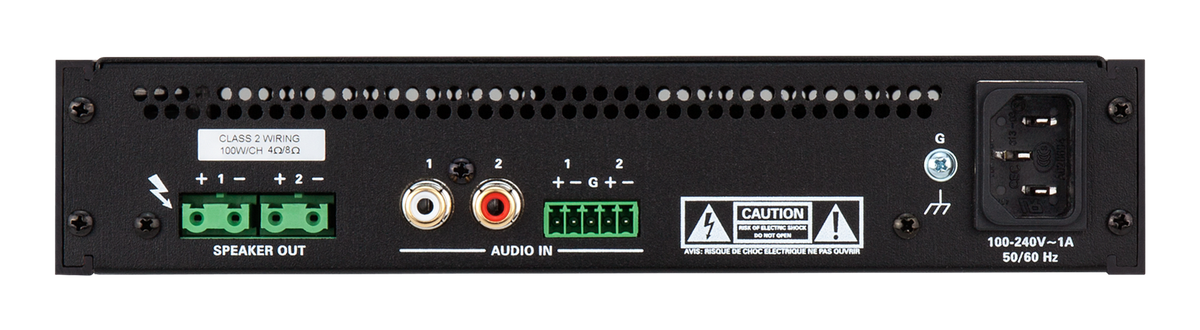

Class D output keeps the amplifier efficient and cool enough to run without a fan, and it enters a low-power standby state when no signal is present. Balanced and unbalanced inputs connect one stereo or two mono sources through a detachable terminal block or RCA jacks, and onboard protection guards against clipping, over-current, over-temperature, and DC offset. The unit ships with hardware to surface mount, rack mount, or gang beside other Crestron modular amplifiers.
| Channels | 2 |
|---|---|
| Output Power | 100 W per channel at 70V |
| Amplifier Class | Class D |
| Signal-to-Noise | >100 dBA, 20 Hz to 20 kHz, balanced |
| Crosstalk | -75 dB at 1 kHz |
| Input Sensitivity | 1.23 Vrms (+4 dBu) balanced; 0.316 Vrms (-10 dBV) unbalanced |
| Dimensions | 1.74 x 8.65 x 10.46 in (H x W x D) |
| Weight | 4.2 lb |
