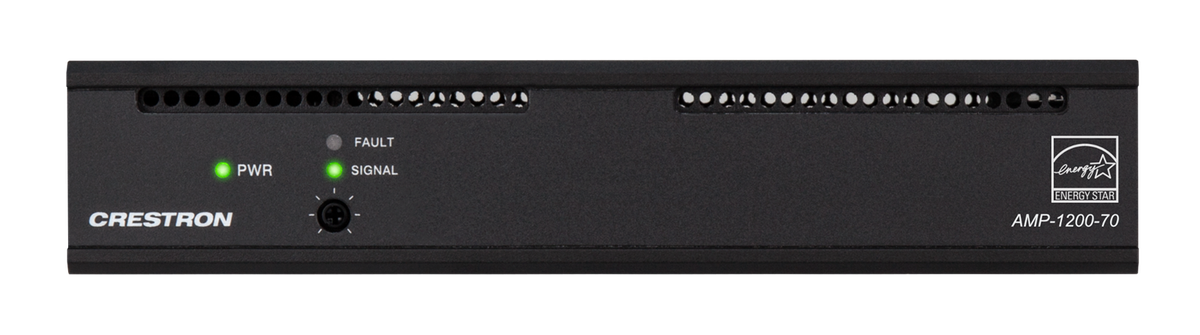

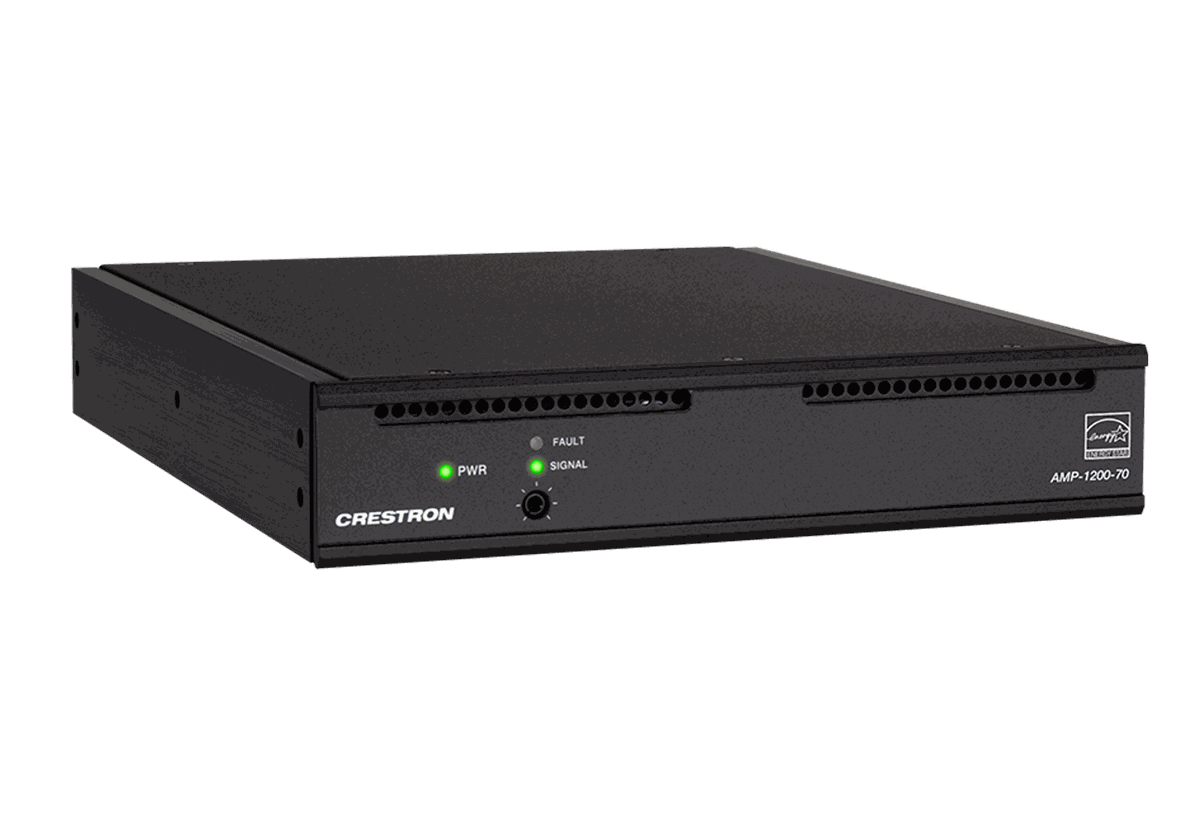

Crestron AMP 1200 70
The Crestron AMP-1200-70 is a single-channel Class D power amplifier that delivers 200 watts onto a 70V constant-voltage distribution line. Constant-voltage wiring lets one amplifier feed a long chain of ceiling or wall speakers with minimal loss over inexpensive cable, which makes it a practical engine for paging, background music, and commercial sound across a building.

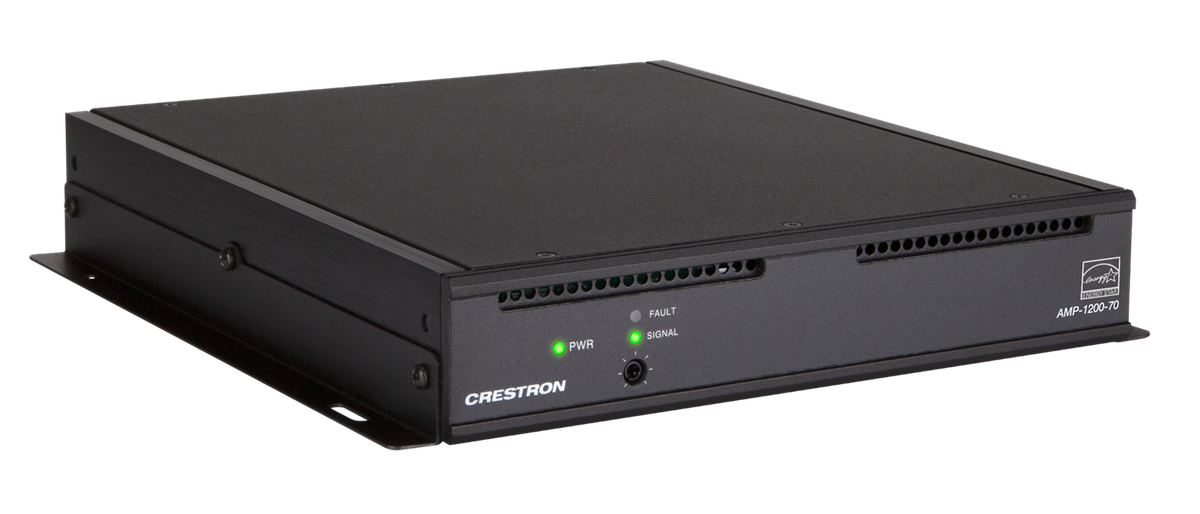

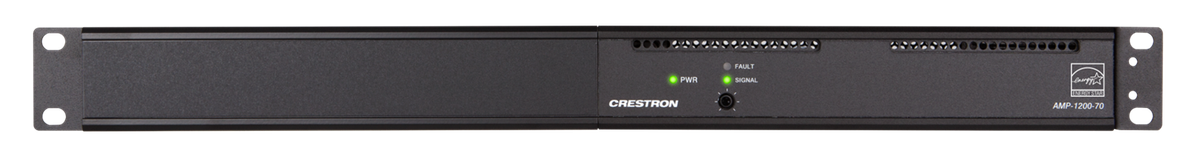

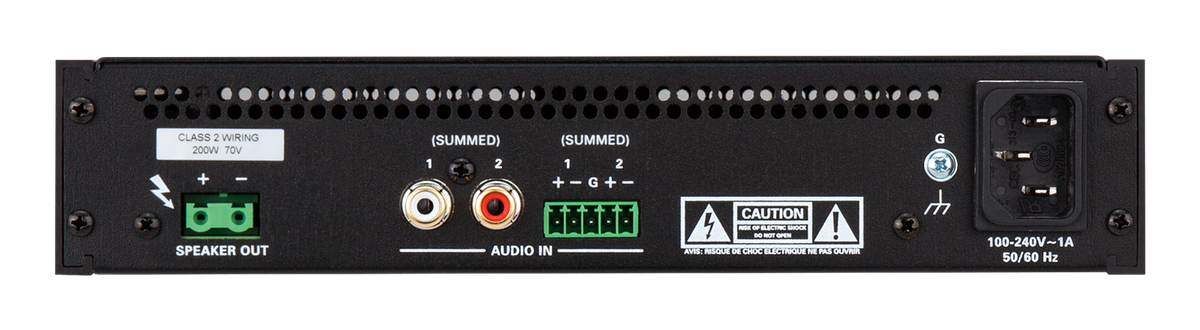

A modular chassis is the point of the AMP-1200 series. Each unit ships with the hardware to surface mount, rack mount, or gang alongside other Crestron modular amplifiers, so a rack can be built up channel by channel as a job requires. Convection cooling keeps it fanless and silent, balanced and unbalanced inputs accept a mono or summed stereo source through a detachable terminal block or RCA jacks, and the amplifier drops into a low-power standby state after 25 minutes without signal, returning to full output the instant audio reappears.
| Channels | 1 |
|---|---|
| Output Power | 200 W at 70V |
| Amplifier Class | Class D |
| Signal-to-Noise | >100 dBA, 20 Hz to 20 kHz, balanced |
| Input Sensitivity | 1.29 Vrms (+4 dBu) balanced; 0.316 Vrms (-10 dBV) unbalanced |
| Cooling | Convection cooled, fanless |
| Standby | Auto low-power standby after 25 minutes with no signal |
| Mounting | Surface, rack, or ganged |
