Community VSB-BFR22 Dual Vertical Splay Kit

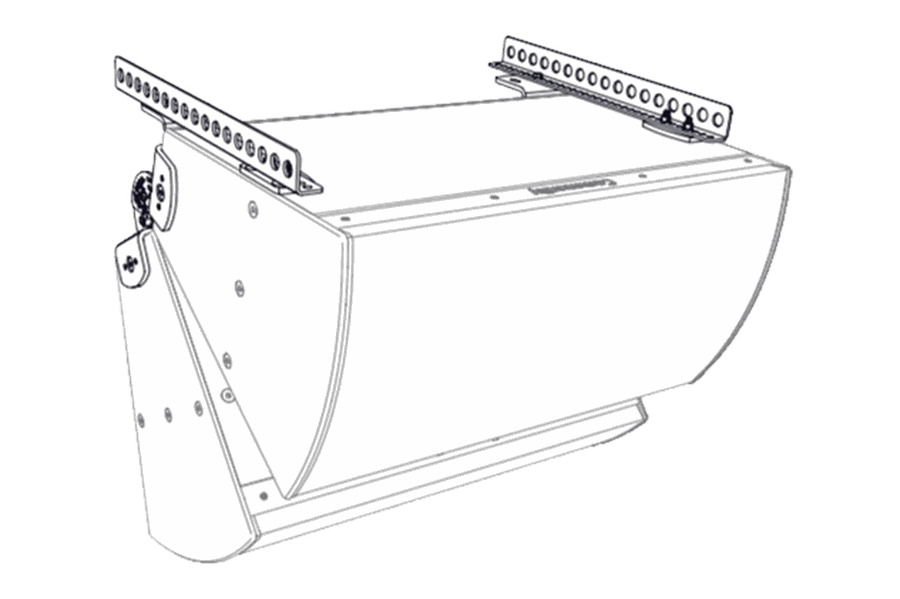

The VSB-BFR22 suspends and vertically arrays two full-range two-way I SERIES loudspeakers in landscape orientation, hung from a pair of 22 inch BalancePoint fly rails. It is the two-way member of the family: the 1122 and 1152 cabinets take this kit, while the three-way 1153 takes the VSB3-BFR22 instead. Ordering the wrong one is the usual mistake here, and the bolt pattern is what differs.

The kit ships as two fly rails, two universal mounting plates, two dual L brackets, four cabinet brackets and four hinge brackets, with the 6, 8 and 10mm hardware to assemble them. Splay is set on the rotational hinge bracket before the array goes up, and Community is explicit that the printed angle is between adjacent enclosure surfaces rather than the center-to-center aiming angle: the trapezoidal cabinets add 30 degrees, so a 45 degree aim is set at the 15 degree holes. The array can be built from the top cabinet down as it is flown, or assembled on its side on the floor and lifted. Black and white are separate part numbers, selectable above.
