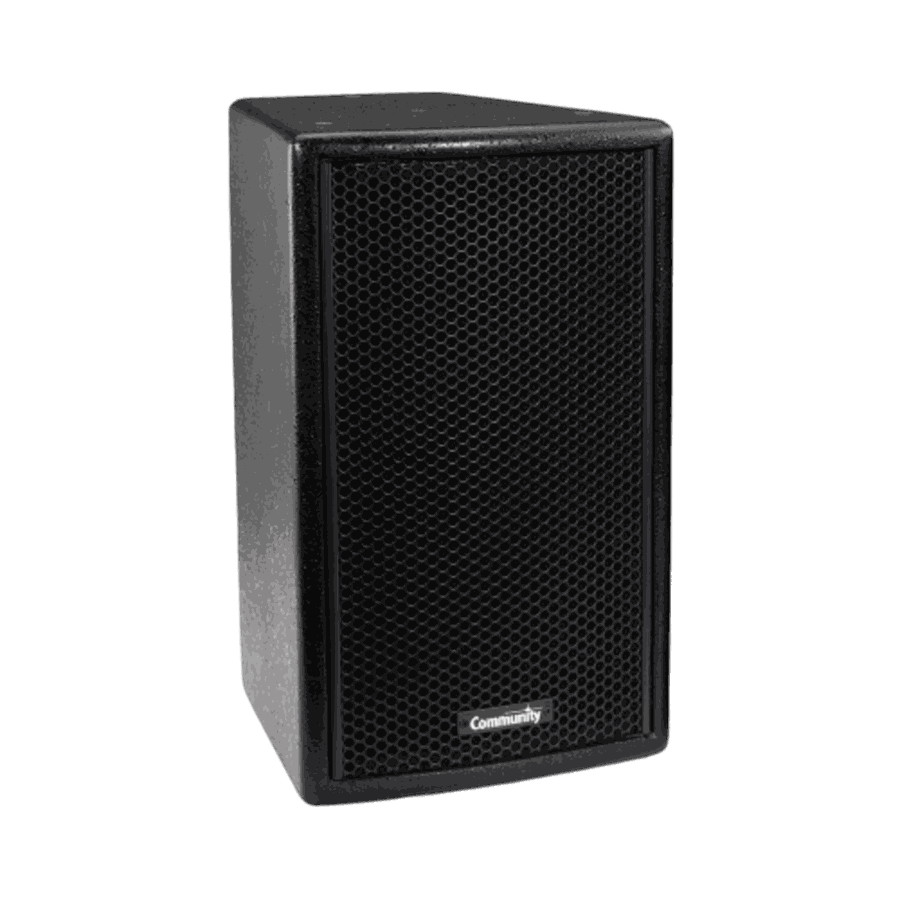

Community V2-6 6-inch 2-Way Point Source Loudspeaker

The Community V2-6 is a 6-inch 2-Way point source loudspeaker. Frequency response is 110 Hz to 16 kHz (+/-3 dB). It runs operating range: 90 hz to 18 khz (-10 db). Power handling: . Community positions it for large venue work.

The family covers 90 x 70 degrees nominal patterns, in white. Mounting: Mounting/Rigging Provisions: 9 x M6 threaded rigging fittings 4 x M6 threaded fittings for third-party suspension products. Enclosure: Trapezoidal (22.5 degrees included angle) 18mm, 11-ply cross-laminated birch. Operating environment: Indoor. Every part number in the family is listed above; pick the coverage and finish the room needs.

Dimensions (H x W x D)	15.5 inches (395 mm) x 9.8 inches (249 mm) x 10.1 inches (258 mm)
Loudspeaker System	.
Type	Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn
Drivers	Drivers - LF: 1 x 6.5-inch cone; Drivers - HF: 1 x 1-inch; Driver Protection: DYNA-TECH protection circuitry
Frequency Response	110 Hz to 16 kHz (+/-3 dB)
Beamwidth	Nominal -6dB Beamwidth: 90 degrees H x 70 degrees V (in vertical position)
Sensitivity	Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
Power	.
