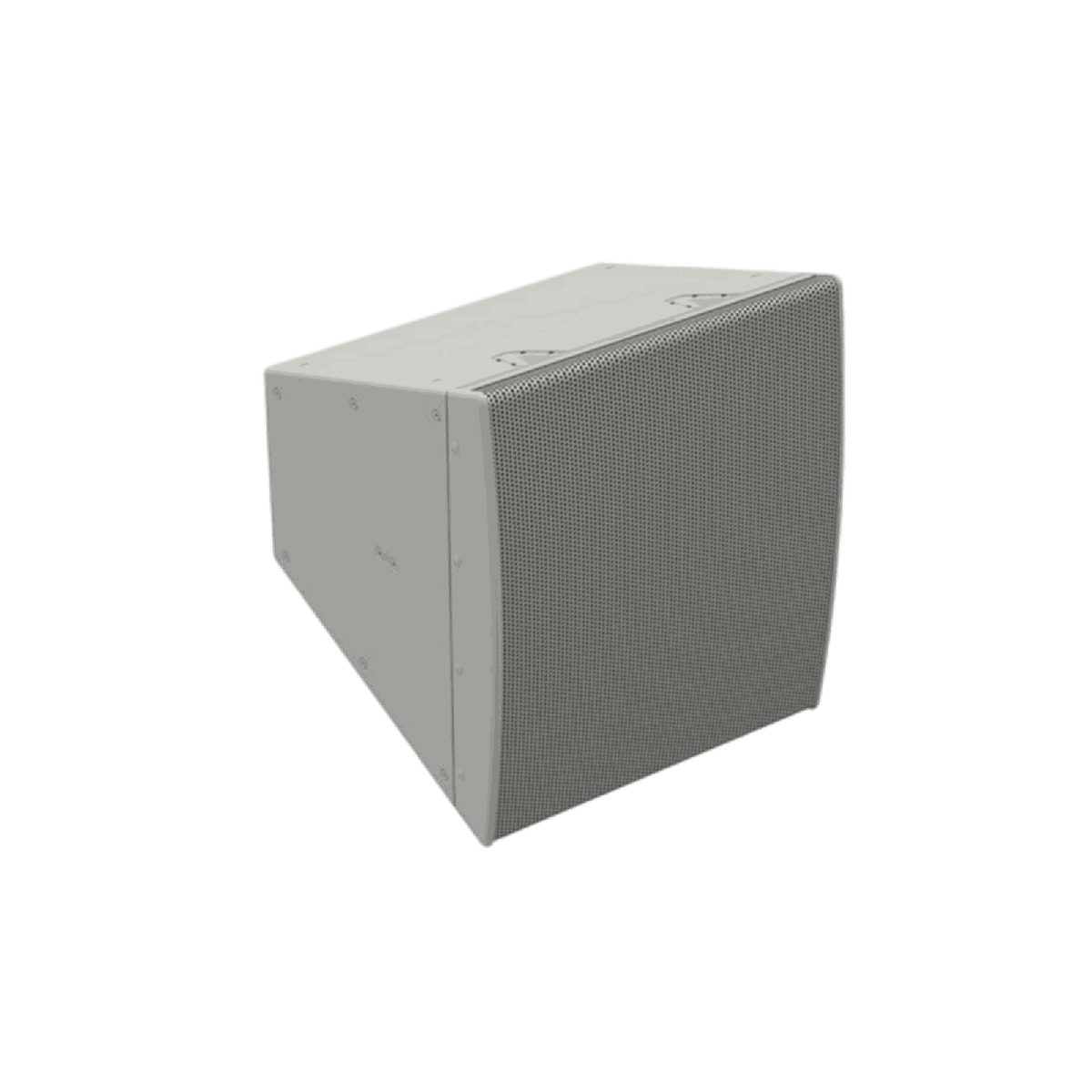

Community Professional Biamp Community LVH-909C/AS Steerable Venue Horn Loudspeaker
The Biamp Community LVH-909C/AS Steerable Venue Horn is a arrayable, high output point source loudspeaker (Active Standard) built for large-venue and performance systems. Drivers are LF 4 x 12"; MF 3 x 2"; HF 4 x 1.5" voice coil. Its operating range is 60 Hz - 18 kHz. Maximum output is Max Output @1m1: 135 dB Cont.; 141 dB Peak.

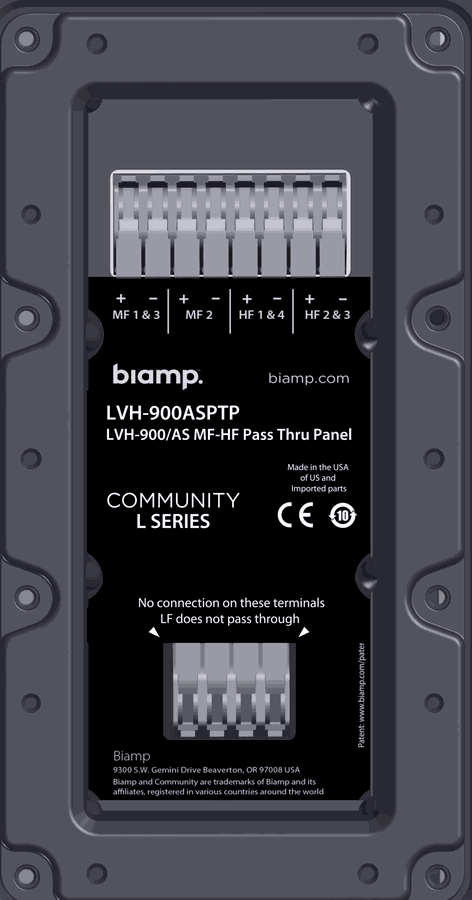

It is rated for Outdoor PolyGlas Models use. It weighs 250 lbs (113.4 kg). Finish: . It measures 37.3 inches (948 mm) high by 31.4 inches (797 mm) wide by 30.5 inches (775 mm) deep. Order it in 29 versions: LVH-909C/AS Steerable Venue Horn, LVH-900ASPTP, LVH-906/APB Steerable Venue Horn, LVH-906/APW Steerable Venue Horn, LVH-906/ASB Steerable Venue Horn, LVH-906/ASW Steerable Venue Horn, LVH-906C/AP Steerable Venue Horn, LVH-906C/AS Steerable Venue Horn, LVH-906WR/APB Steerable Venue Horn, LVH-906WR/APG Steerable Venue Horn, LVH-906WR/APW Steerable Venue Horn, LVH-906WR/ASB Steerable Venue Horn, LVH-906WR/ASG Steerable Venue Horn, LVH-906WR/ASW Steerable Venue Horn, LVH-906WRC/AP Steerable Venue Horn, LVH-906WRC/AS Steerable Venue Horn, LVH-909/APB Steerable Venue Horn, LVH-909/APW Steerable Venue Horn, LVH-909/ASB Steerable Venue Horn, LVH-909/ASW Steerable Venue Horn, LVH-909C/AP Steerable Venue Horn, LVH-909WR/APB Steerable Venue Horn, LVH-909WR/APG Steerable Venue Horn, LVH-909WR/APW Steerable Venue Horn, LVH-909WR/ASB Steerable Venue Horn, LVH-909WR/ASG Steerable Venue Horn, LVH-909WR/ASW Steerable Venue Horn, LVH-909WRC/AP Steerable Venue Horn, LVH-909WRC/AS Steerable Venue Horn.
| Loudspeaker Type | Arrayable, high output point source loudspeaker (Active Standard) |
|---|---|
| Drivers | LF 4 x 12"; MF 3 x 2"; HF 4 x 1.5" voice coil |
| Operating Range | 60 Hz - 18 kHz |
| Maximum Output | Max Output @1m1: 135 dB Cont.; 141 dB Peak |
| Operating Environment | Outdoor PolyGlas Models |
| Weight | 250 lbs (113.4 kg) |
| Dimensions (H x W x D) | 37.3 inches (948 mm) x 31.4 inches (797 mm) x 30.5 inches (775 mm) |
| Coverage | Horizontal Coverage: 90 deg; Vertical Coverage: 20 deg, 40 deg or 60 deg |
