Chief PNR2000B Large Flat Panel Swing Arm Wall Mount, 25 in (without interface)

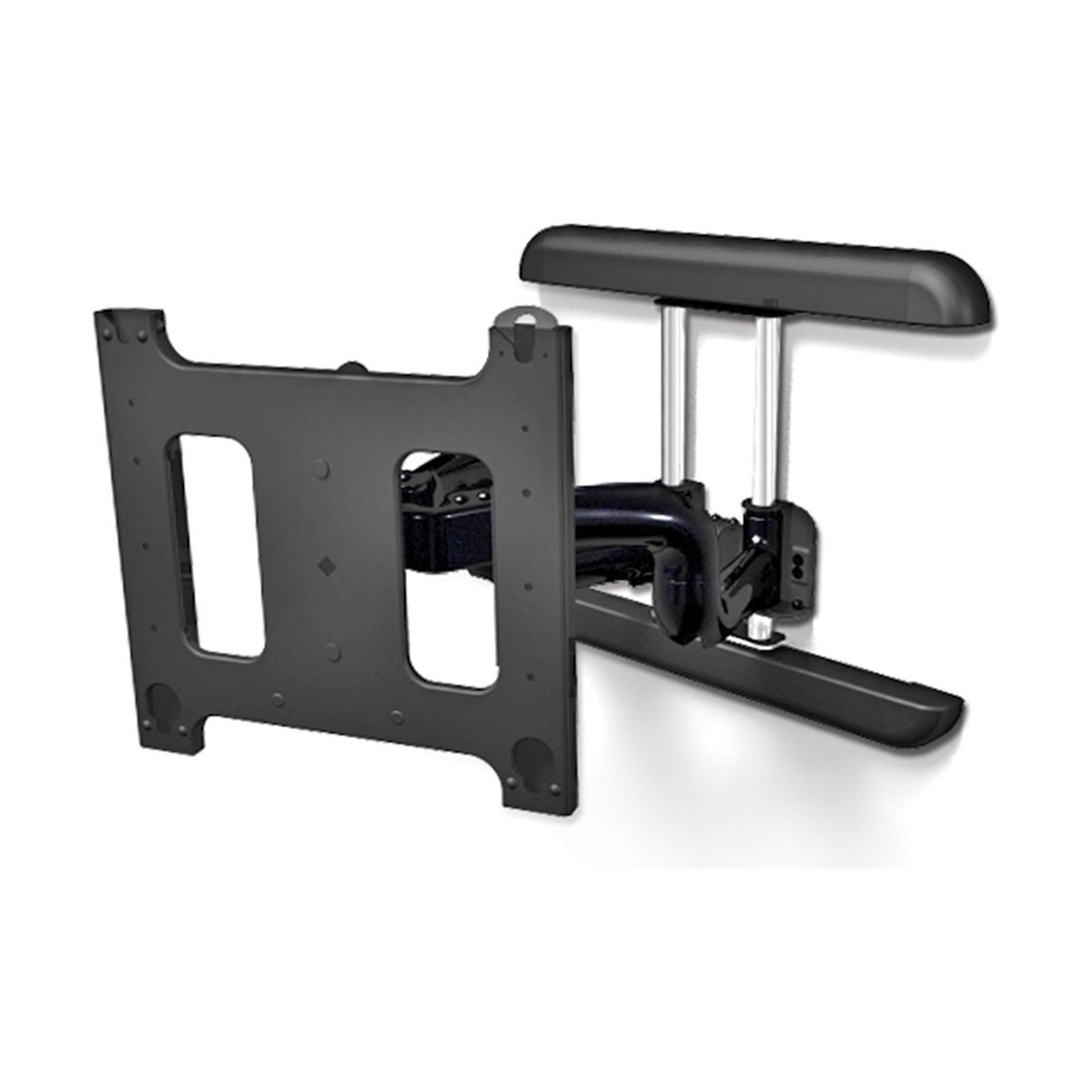

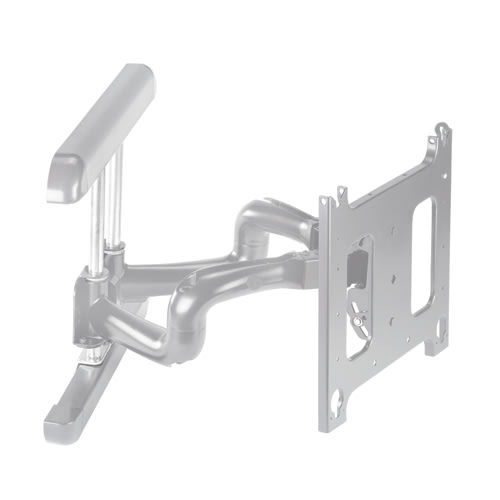

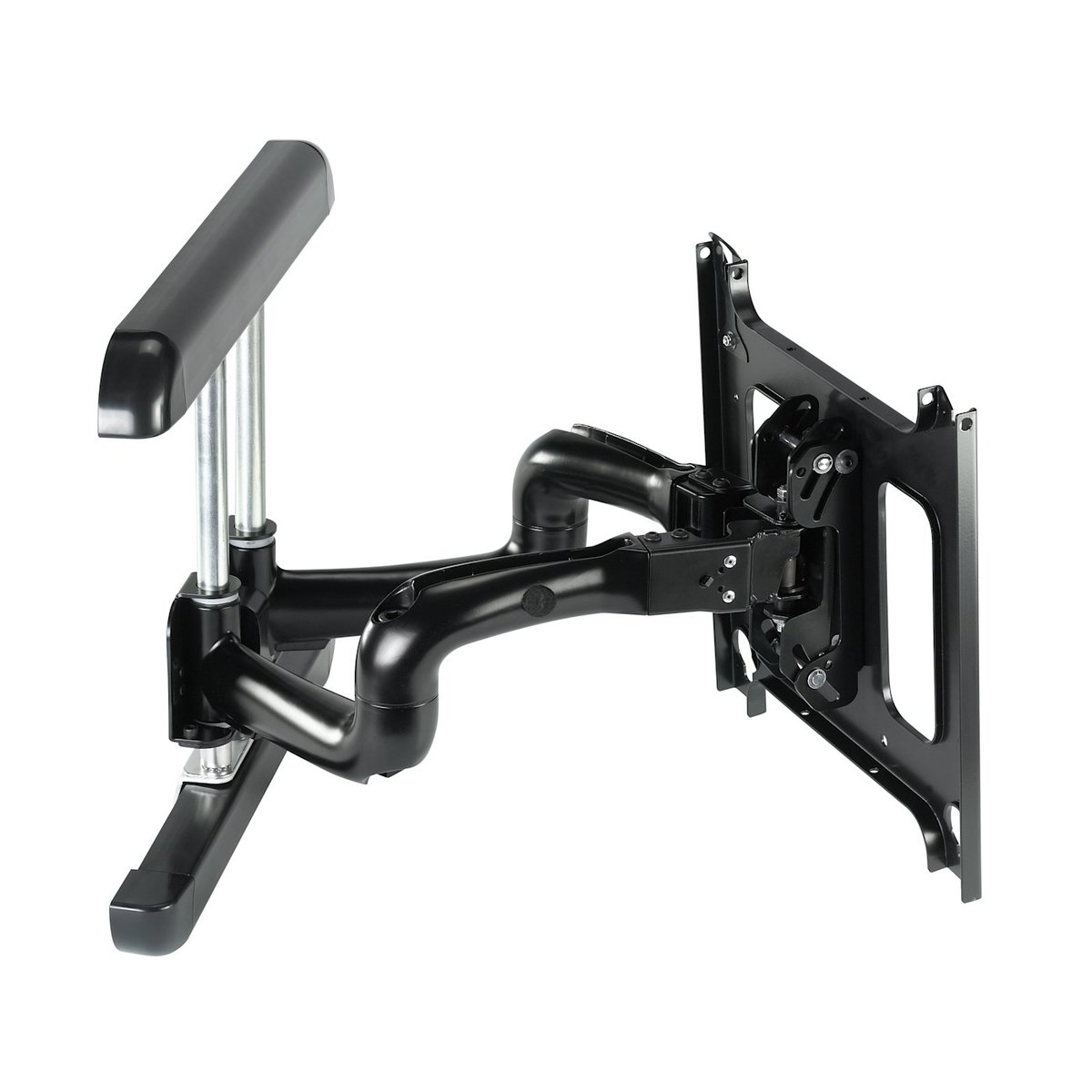

The PNR series is Chief's heavier swing arm - 42 to 86 inch panels, up to 200 lb, extending 25 inches from the wall so a big display can be turned toward a different part of the room. The 2000B is the no-interface version: pair it with the PSB custom or universal bracket the display requires.
Centris fingertip tilt lets you set the tension to the screen's centre of gravity rather than fighting a fixed detent, and there is up to 1 inch of post-installation height adjustment plus 9 inches of lateral shift for centring after the plate is fixed. The Q-Latch system seats and releases the panel without tools, and CableTrac gives a channelled path for the cable run. Landscape or portrait, with a PAC400 accessory if you want to rotate without dismounting. Depth and extension exclude the interface bracket, which adds 0.5 to 1.5 inches.
| Display size | 42 - 86 in (1067 - 2184 mm) |
|---|---|
| Weight capacity | 200 lb (90.7 kg) |
| VESA mounting pattern | 200 x 200 mm - 862 x 517 mm |
| Interface | Not included - PSB custom or universal interface ordered separately |
| Extension | Up to 25 in (635 mm); minimum depth 3.25 in (8.3 cm) |
| Lateral shift | 9 in (228.6 mm) |
| Tilt | +5 / -15 degrees (Centris) |
| Wall stud compatibility | 16 in (406 mm) on centre; UL Listed |
