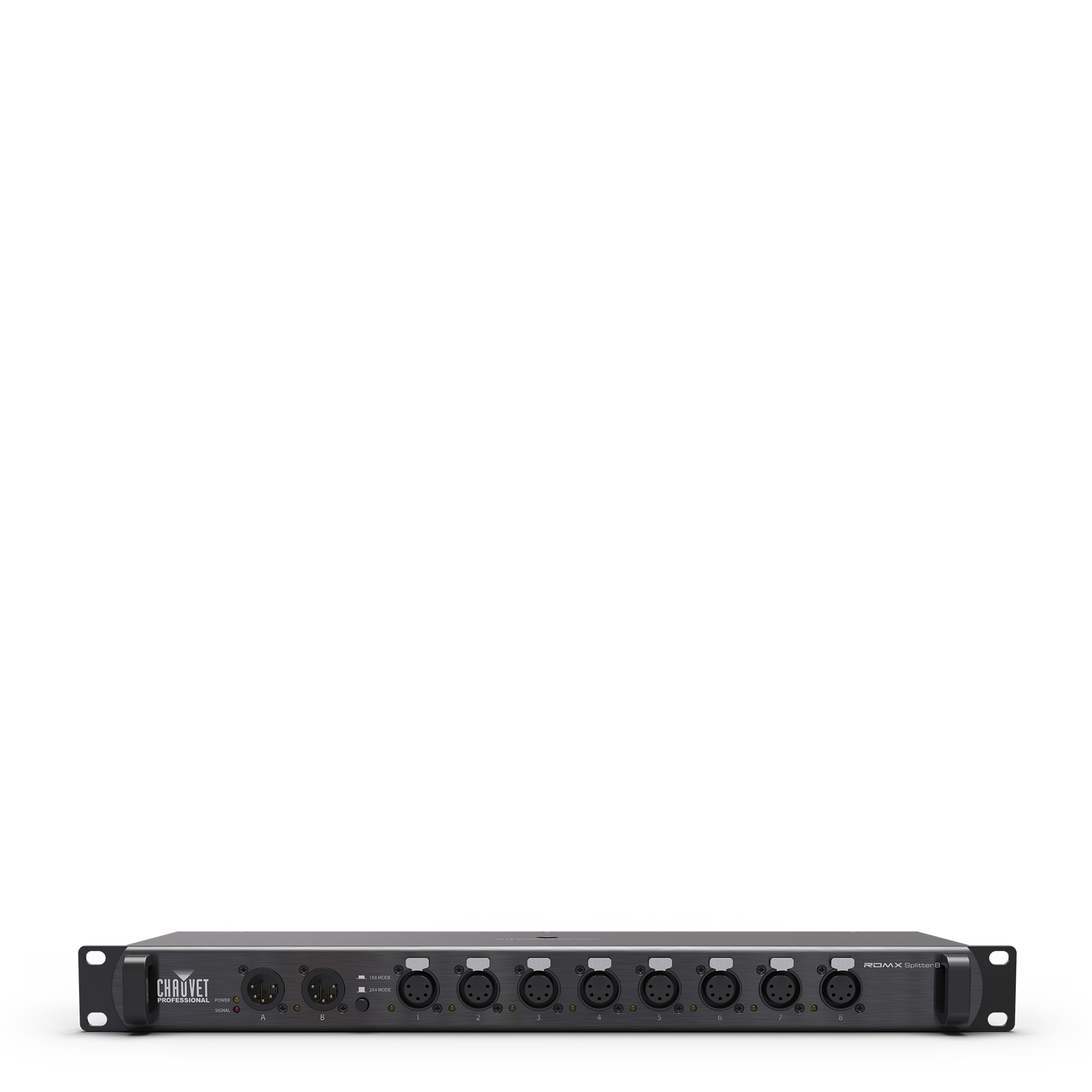

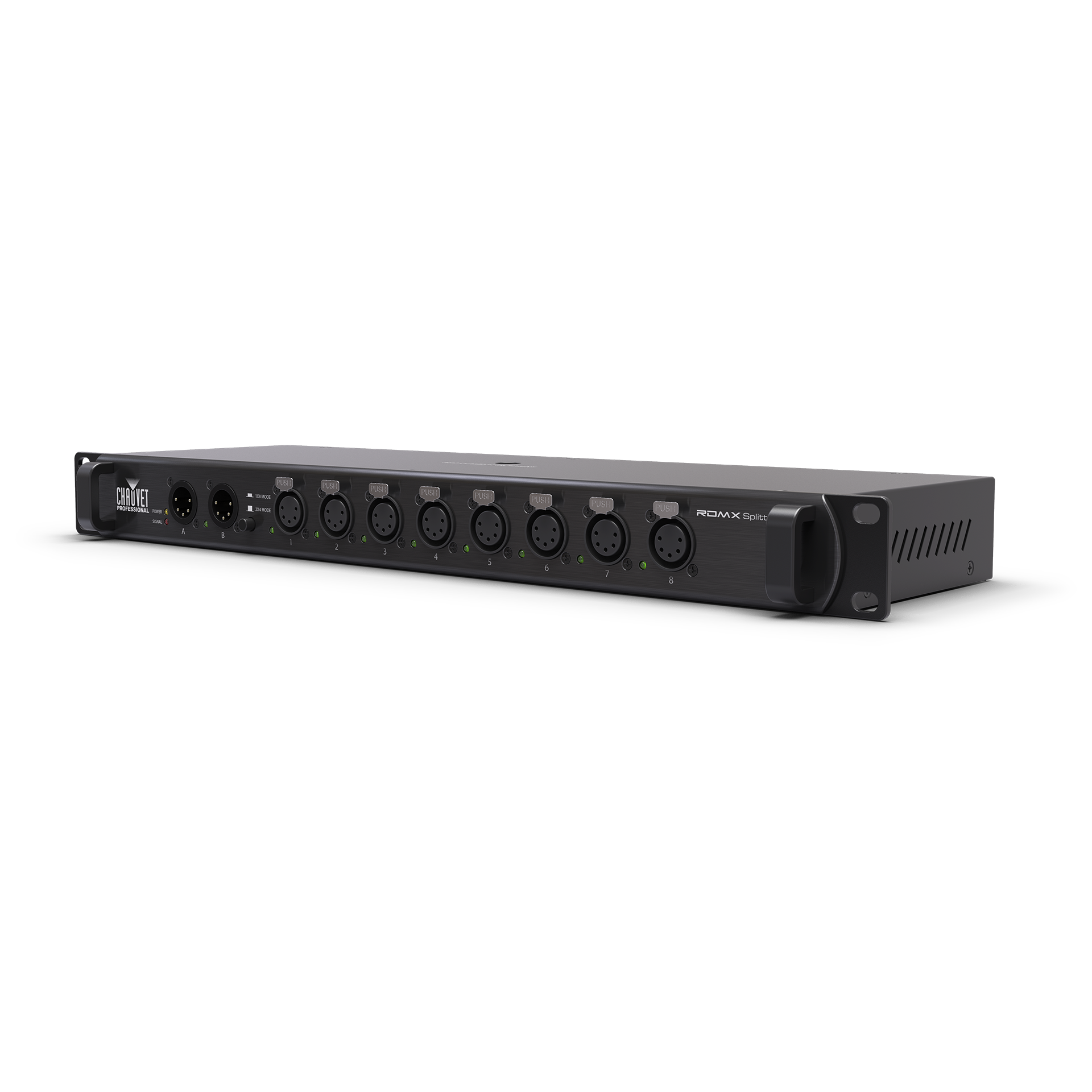

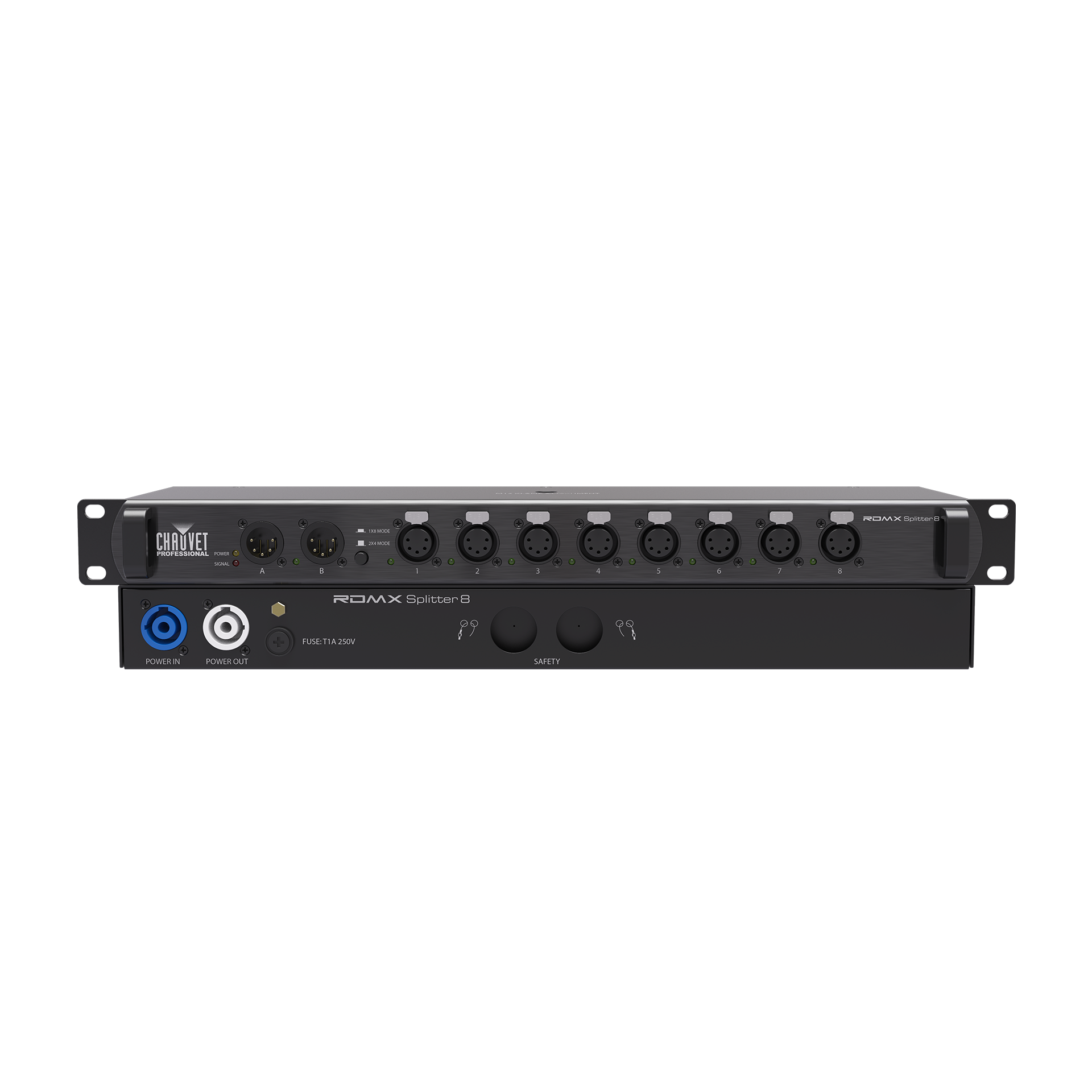

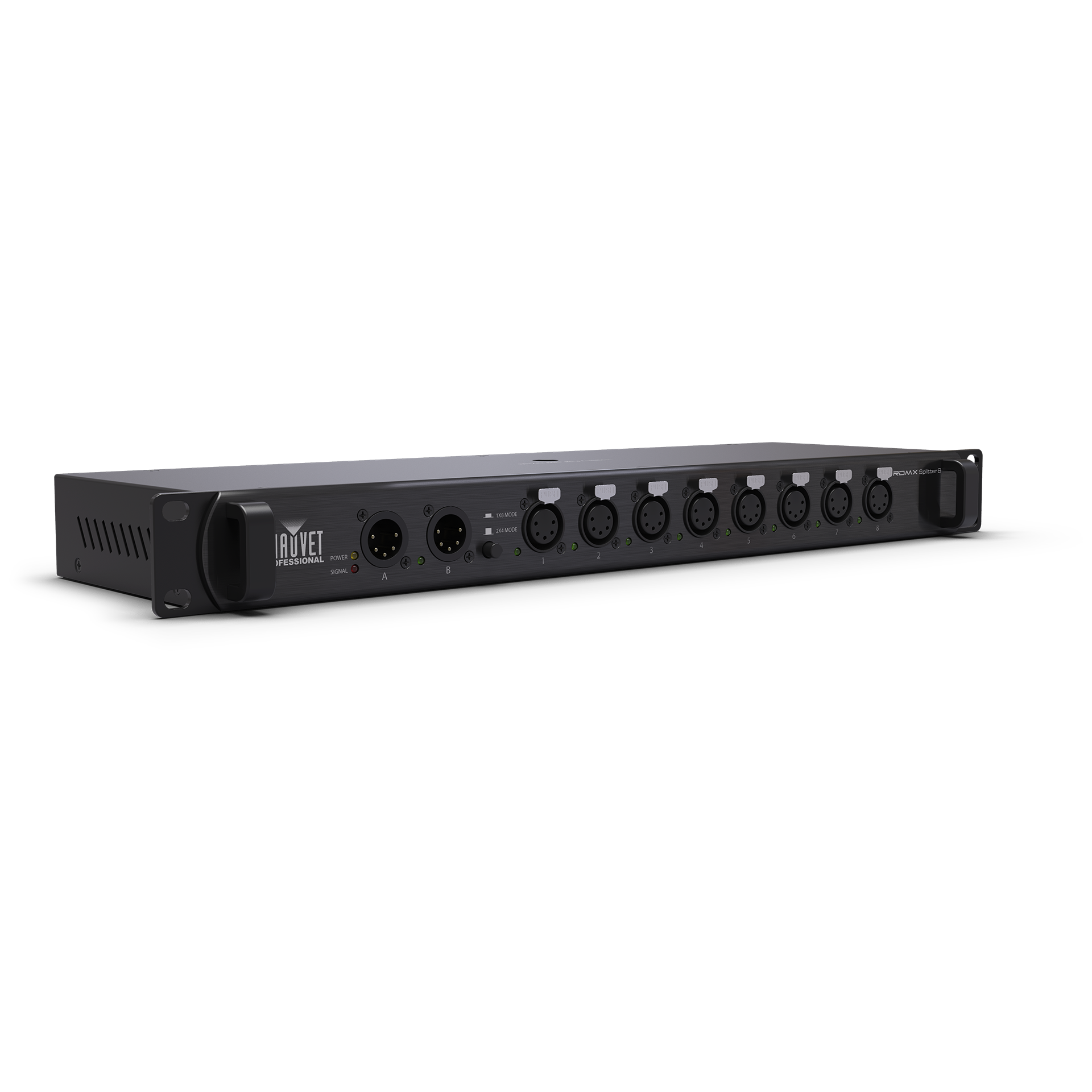

Chauvet Professional RDMX Splitter 8

RDMX Splitter 8 isolates, amplifies, and distributes DMX signal across a complex lighting rig, delivering 1,000V of electrical isolation between its two inputs and eight outputs so a fault on one data line cannot cascade through the rest of the run. It switches between a single 1x8 universe or a dual 2x4 configuration, covering both a simple large-fixture-count rig and a show running two separate universes off one box.

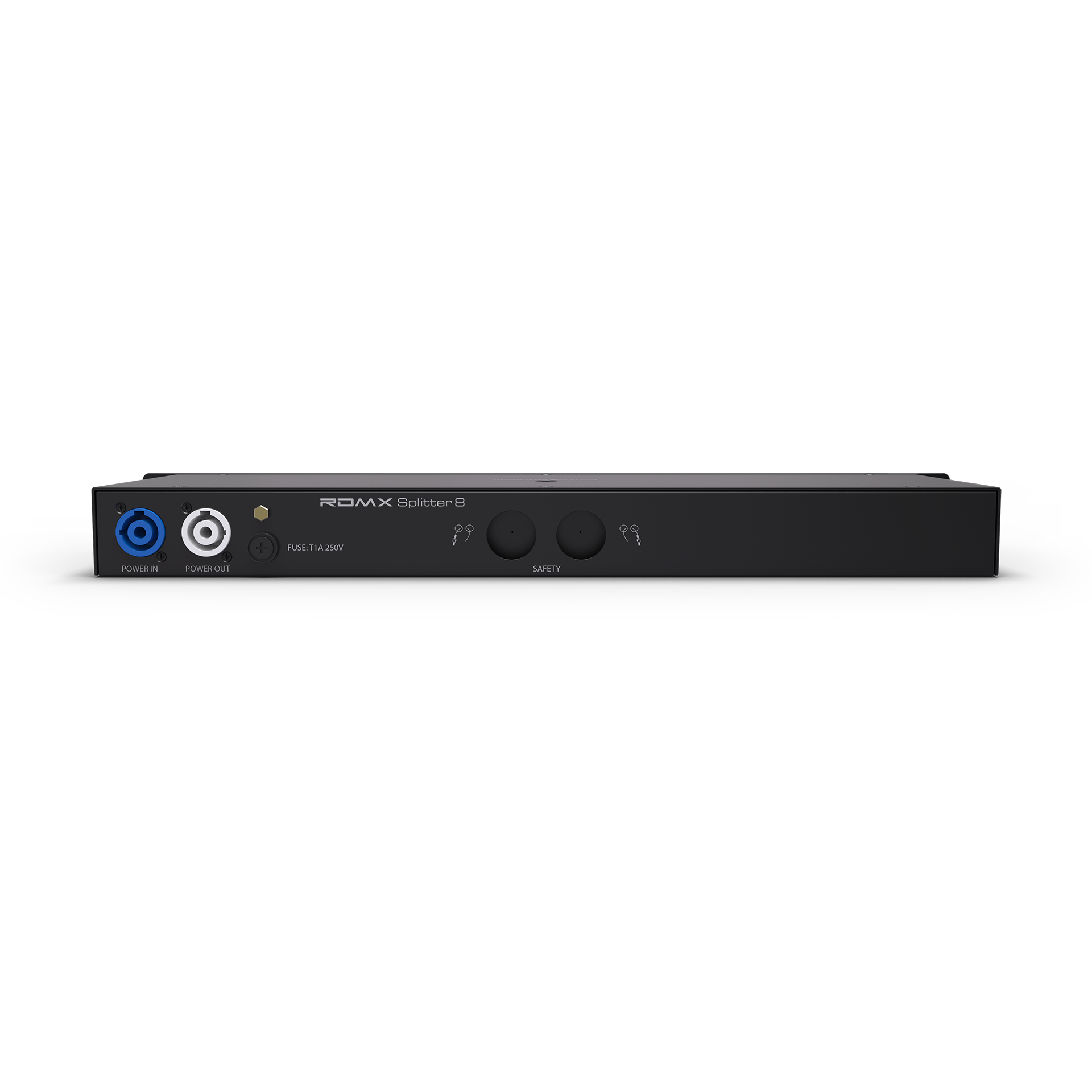

RDM pass-thru keeps remote device management working end to end for fixtures that support it, and PowerCON in/out linking simplifies power runs in a touring or theatrical rack. The 1U steel-and-aluminum housing is built for the road rather than a fixed install.
