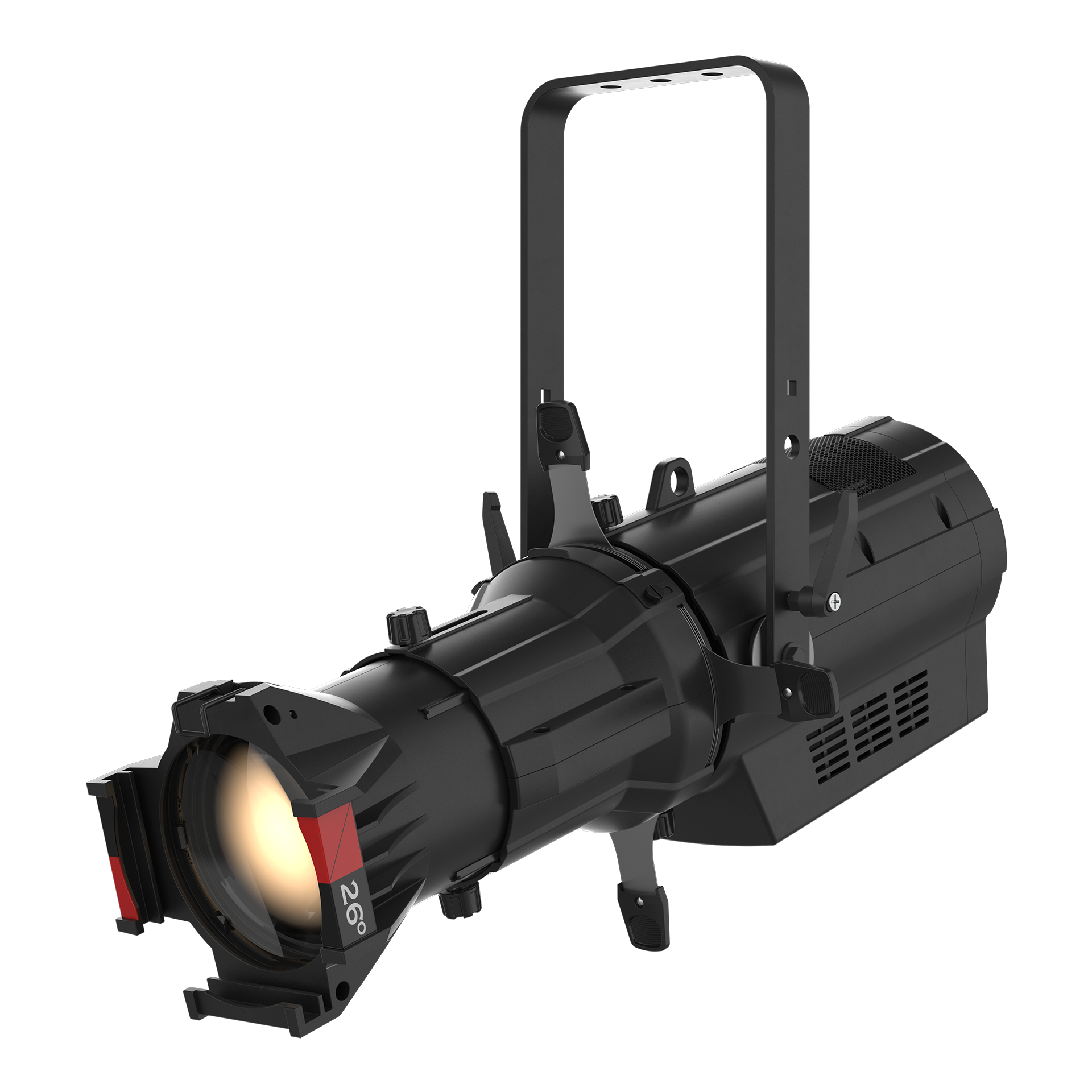

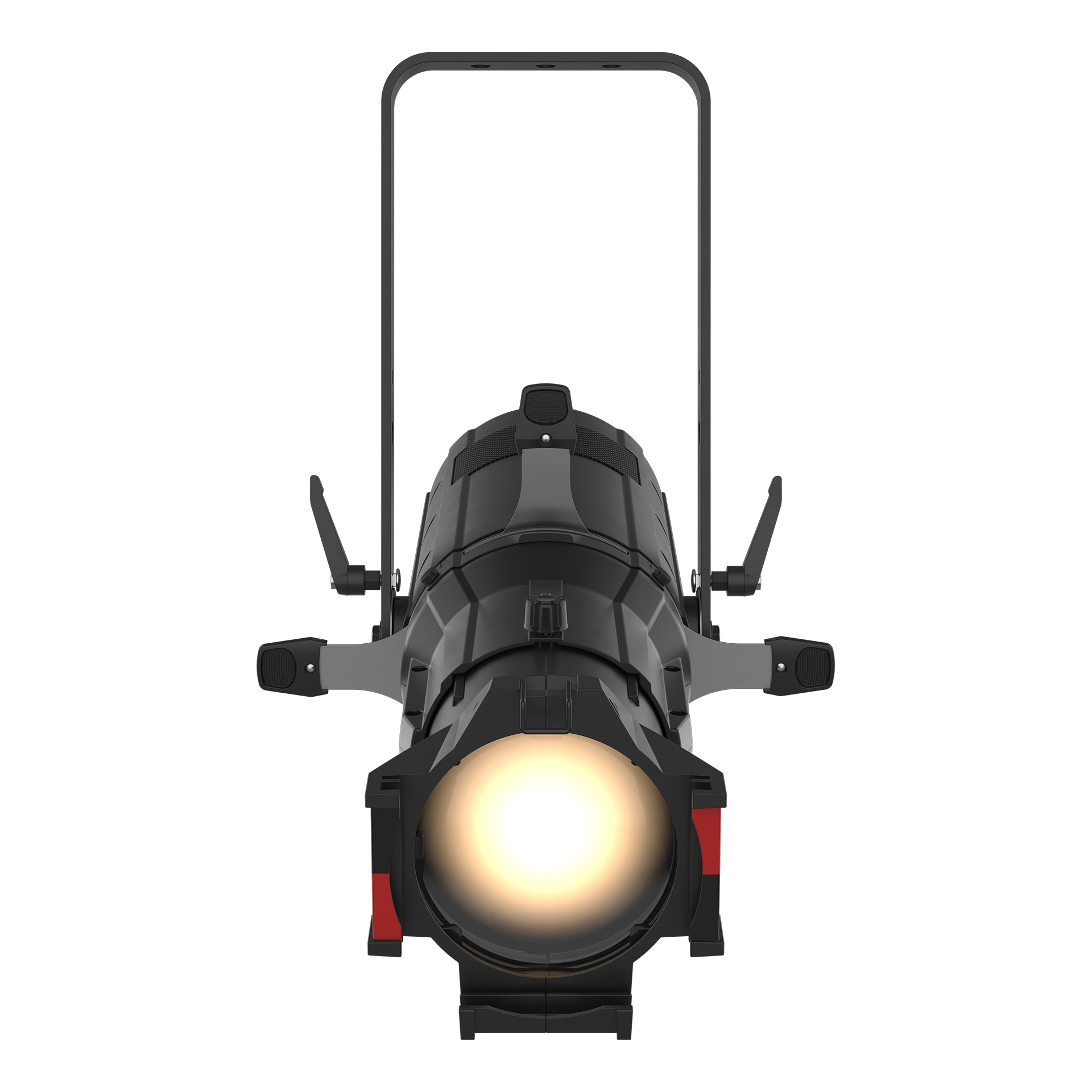

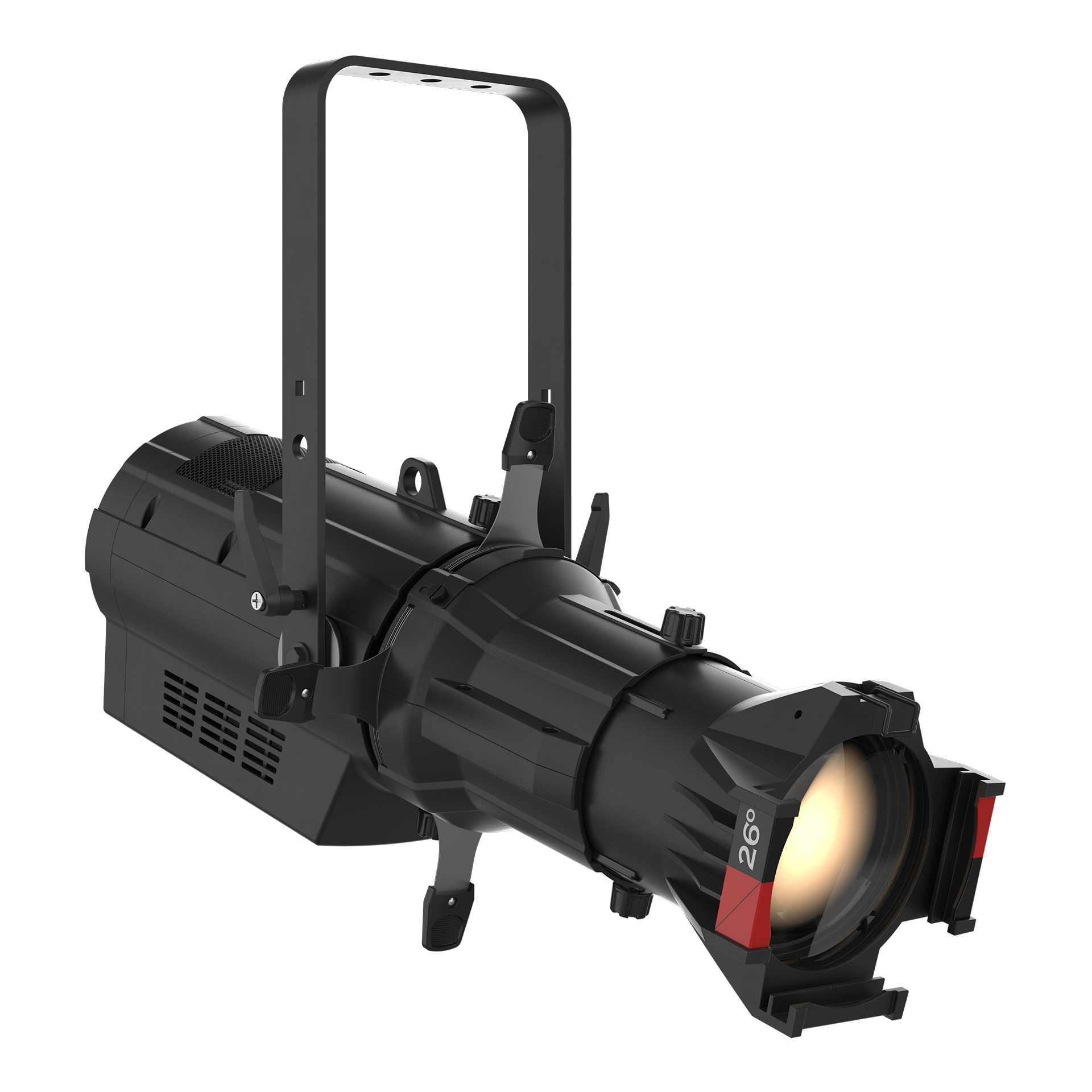

Chauvet Professional Ovation E-160WW LED Ellipsoidal
Ovation E-160WW is built to replace a 575W tungsten ellipsoidal without the audience or the crew noticing the swap: 90 CRI warm white output at 3031K reads as tungsten, and a single 86W LED source draws a fraction of the power while running silently, which matters in a theater or broadcast studio where fan noise is not an option. Six selectable lens tubes from 5 to 50 degrees let one fixture cover anything from a tight special to a wide wash.
Control runs 1, 2, 3, or 6 DMX channels across four personalities, keeping it simple to patch alongside conventional dimmers or a modern LED rig. Like every Ovation ellipsoidal, gobo projection stays crisp because the dual aspheric lens system is designed specifically for gobo work rather than general wash output.
| Light Source | 1 warm white LED, 86 W, 3031 K, 50,000-hour life |
|---|---|
| CRI | 90 |
| Beam Angle | 4 - 31 degrees (varies by lens tube) |
| Lens Options | 5, 10, 14, 19, 26, 36, 50 degrees, plus zoom |
| DMX Channels | 1, 2, 3, or 6 (4 personalities) |
| Control Protocols | DMX, RDM |
| Power | 100 - 101 W @ 120 V, 0.86 A |
| Size / Weight (fixture only) | 19.49 x 11.22 x 19.17 in; 14.2 lb |
