BZBGear BG-MV41A 4x1 1080p HDMI Switcher, Scaler and Multiviewer

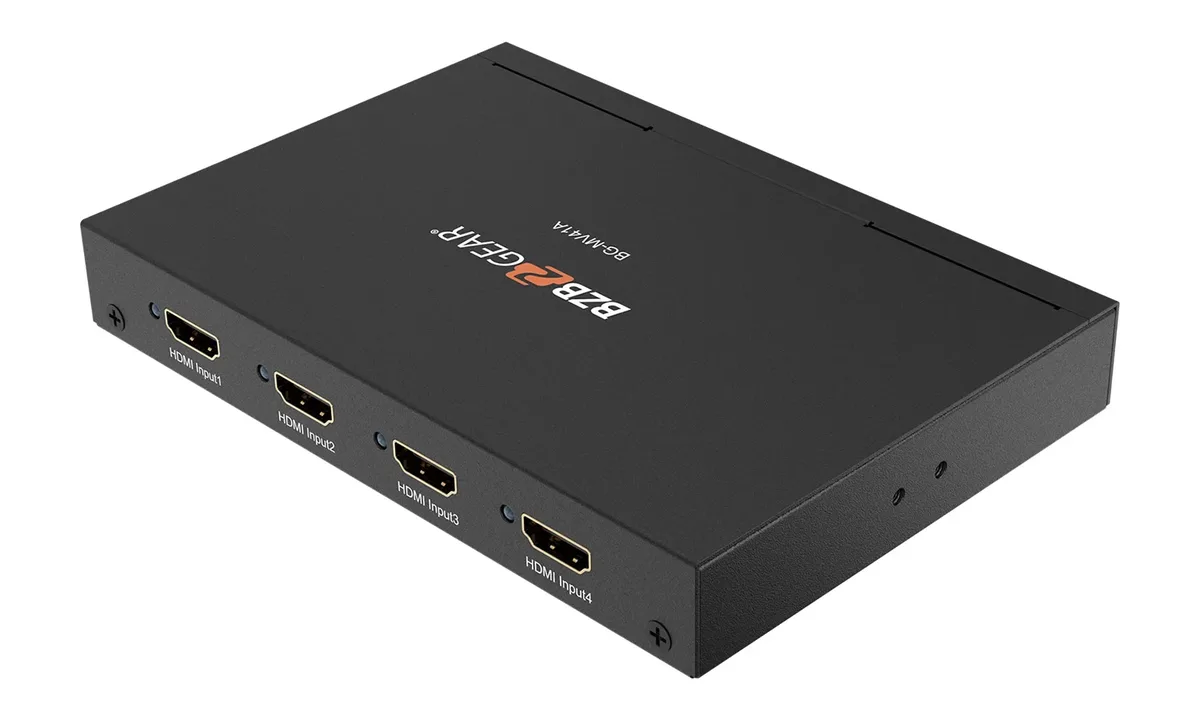

The BG-MV41A takes four HDMI sources to a single HDMI output and lets you show them together in a quad multiview or switch between them full screen. The switch does not black the screen, and the built-in scaler upscales 720p to 1080p and downscales 1080p to 720p so mismatched sources do not fight over the output format. Five display modes cover the usual jobs, from a four-up security wall to a single presenter feed.

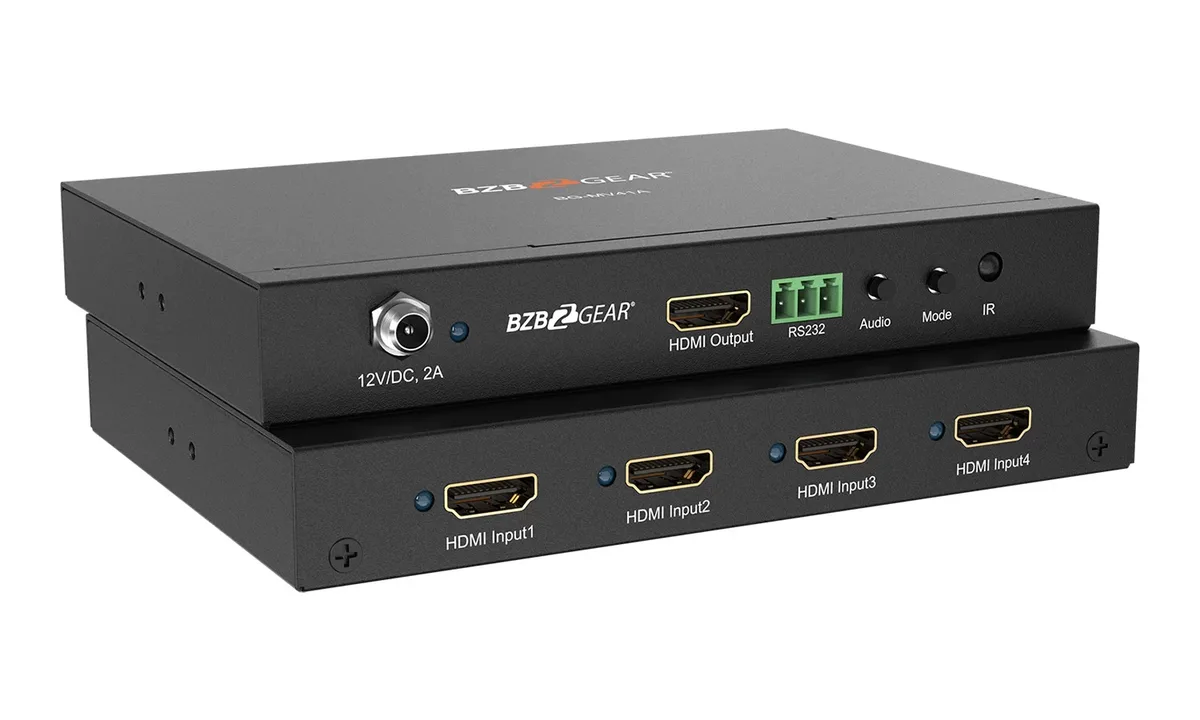

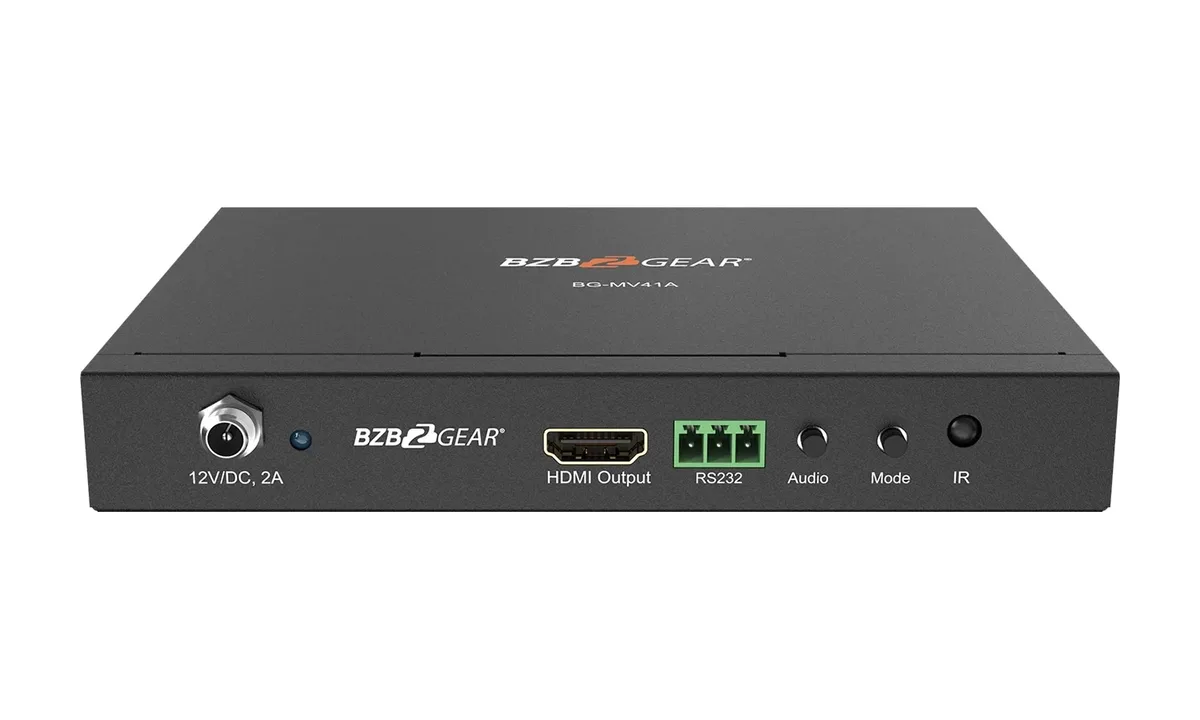

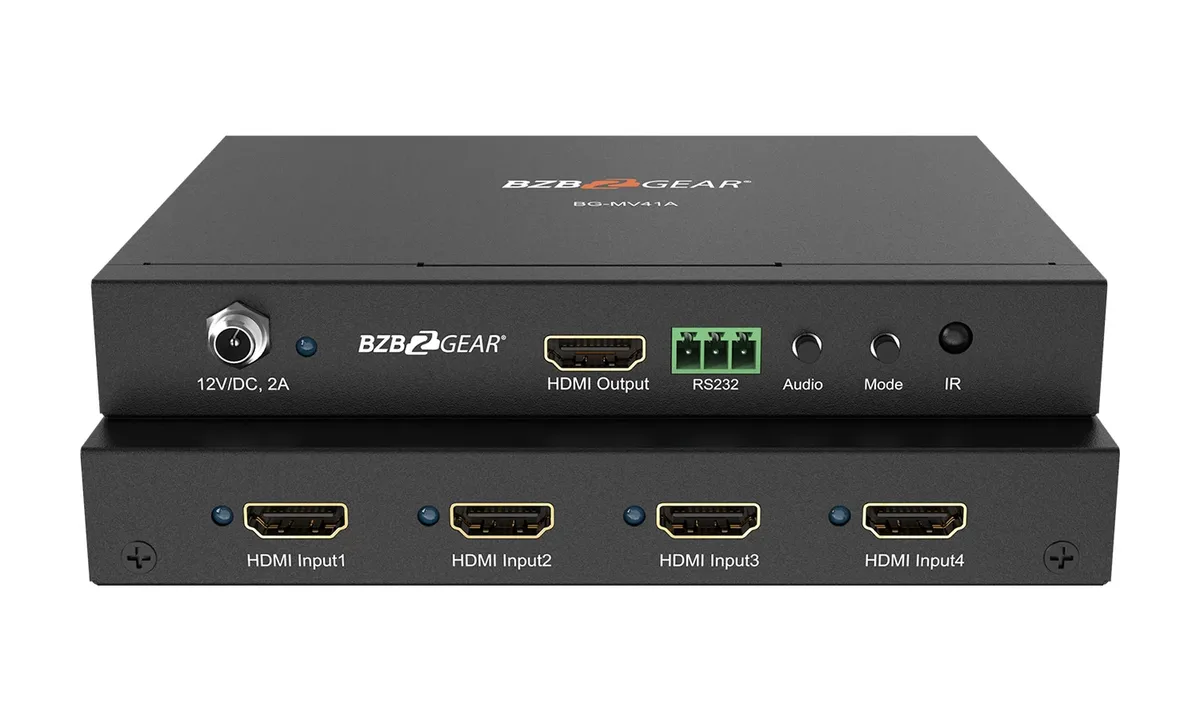

Operation is straightforward: front-panel buttons select the layout and the active source, and a separate audio button picks which input's audio goes to the output. For a rack or a lectern out of reach, the unit answers to the supplied IR remote or to RS-232, and RS-232 passthrough is available. The chassis is metal, the supply is a locking connector, and maximum draw is 10 W.
| Configuration | 4x1 switcher, scaler and multiviewer |
|---|---|
| Inputs | 4x HDMI |
| Outputs | 1x HDMI |
| Maximum Resolution | 1080p@60Hz |
| Compliance | HDMI 1.3a, HDCP 1.2 |
| Scaling | Upscale 720p to 1080p, downscale 1080p to 720p |
| Display Modes | 5 modes including quad multiview and full screen |
| Control | Front panel buttons, IR remote, RS-232 with passthrough |
| Power Consumption | 10 W maximum |
| Dimensions | 5.8"(W) X 4.0"(D) X 0.83”(H) [148.5mm(W) X 103mm (D) X 21.5mm(H)] |
| Weight | 0.75lbs [342g] |
| HDCP | High-Bandwidth Digital Content Protection Supported |
