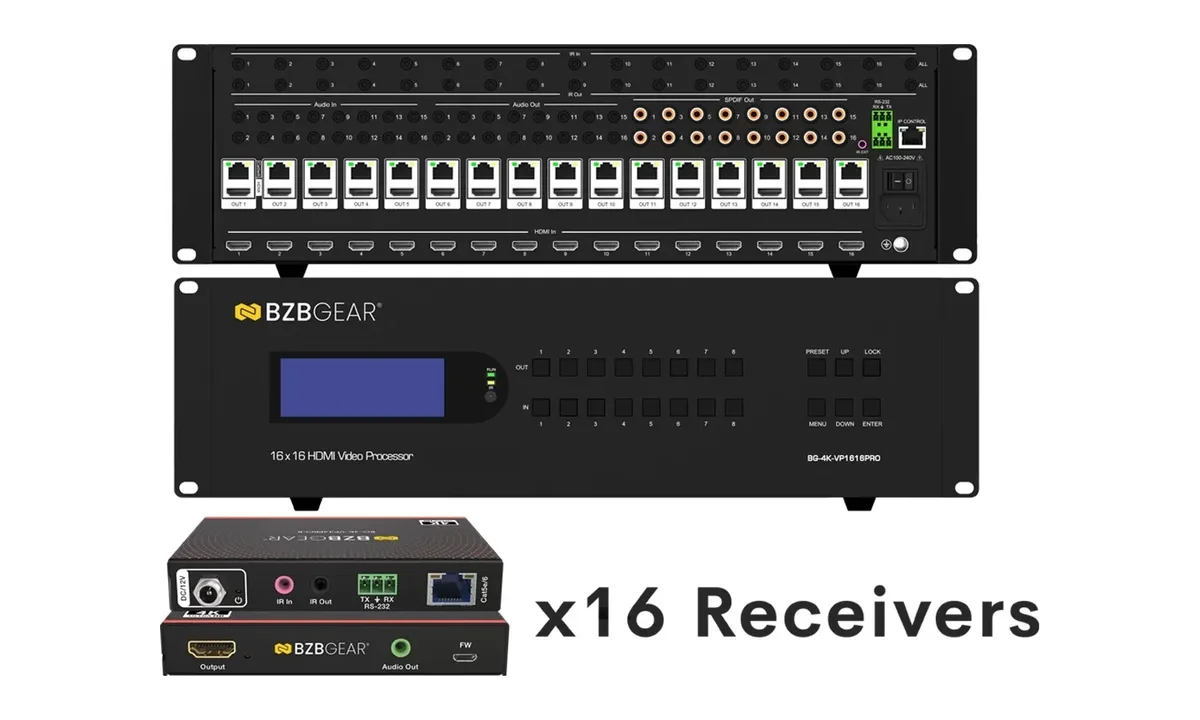

BZBGear BG-4K-VP1616PRO 16x16 Seamless Matrix, Video Wall and Multiviewer Kit with 16 Receivers

The BG-4K-VP1616PRO takes sixteen HDMI inputs and routes each one independently to an HDMI output or out over the LAN, and the kit ships with sixteen receivers so a full sixteen-display run is covered without sourcing extenders separately. Switching is seamless, so a source change does not drop a black frame in front of an audience, and the scaler holds a consistent output format when the incoming resolutions do not match.

The same frame builds video walls in up to seven modes per monitor and runs multiview layouts that put as many as sixteen pictures on one screen. Video runs to 4K at 60 Hz 4:4:4 with HDCP 2.2 on every HDMI port, HDMI audio formats including Dolby 5.1 and DTS 5.1 pass through, and analog audio can be extracted and switched independently of video. Control is available from the front panel, the supplied IR remote, RS-232, or IP, including the BZBGEAR switch control app for Windows, macOS, iOS and Android.
