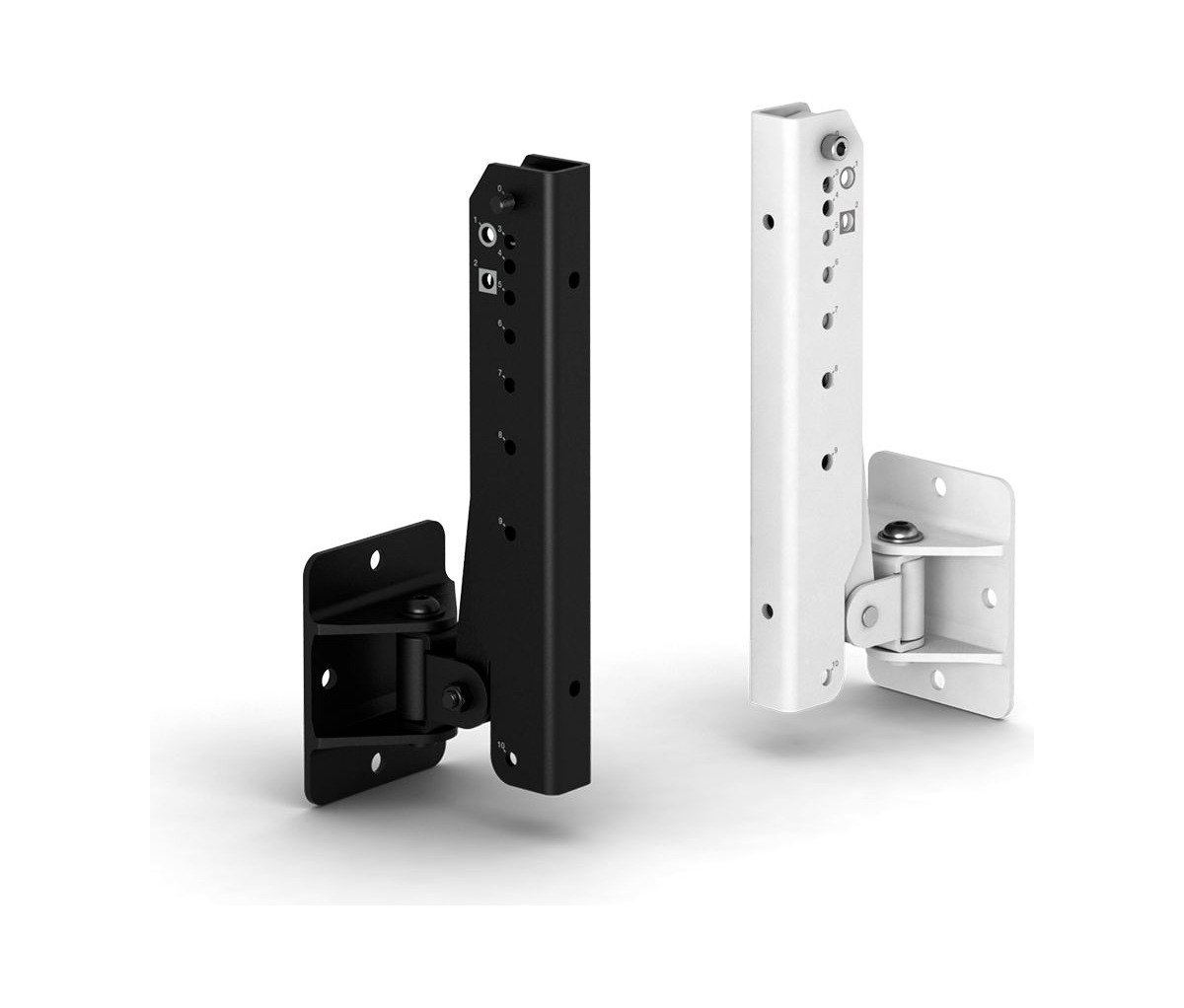

Bose Professional Bose WMB2-MA12/MA12EX Pitch-Lock Upper Bracket

The WMB2-MA12/MA12EX pitch-lock upper bracket works alongside a WB-MA12/MA12EX or WMB-MA12/MA12EX lower bracket to hold 0 to 10 degrees of positive pitch on a stacked Bose MA12 or MA12EX array. It is rated for triple-stack configurations.

Rated for indoor or outdoor use, it ships with a bracket assembly and M6 mounting hardware.

Compatible WithBose MA12 and MA12EX column loudspeakers, stacked arrays
Pitch Retention0 - 10 degrees, positive
Stack RatingTriple-stack rated
Dimensions (H x W x D)9.1 in x 3.0 in x 3.8 in (232 x 76 x 97 mm)
ColorsBlack, White
Used WithWB-MA12/MA12EX or WMB-MA12/MA12EX lower bracket
Product Codes318337-0100 (Black), 318337-0200 (White)
