Bose Professional Bose ArenaMatch AM10 DeltaQ Array Loudspeaker

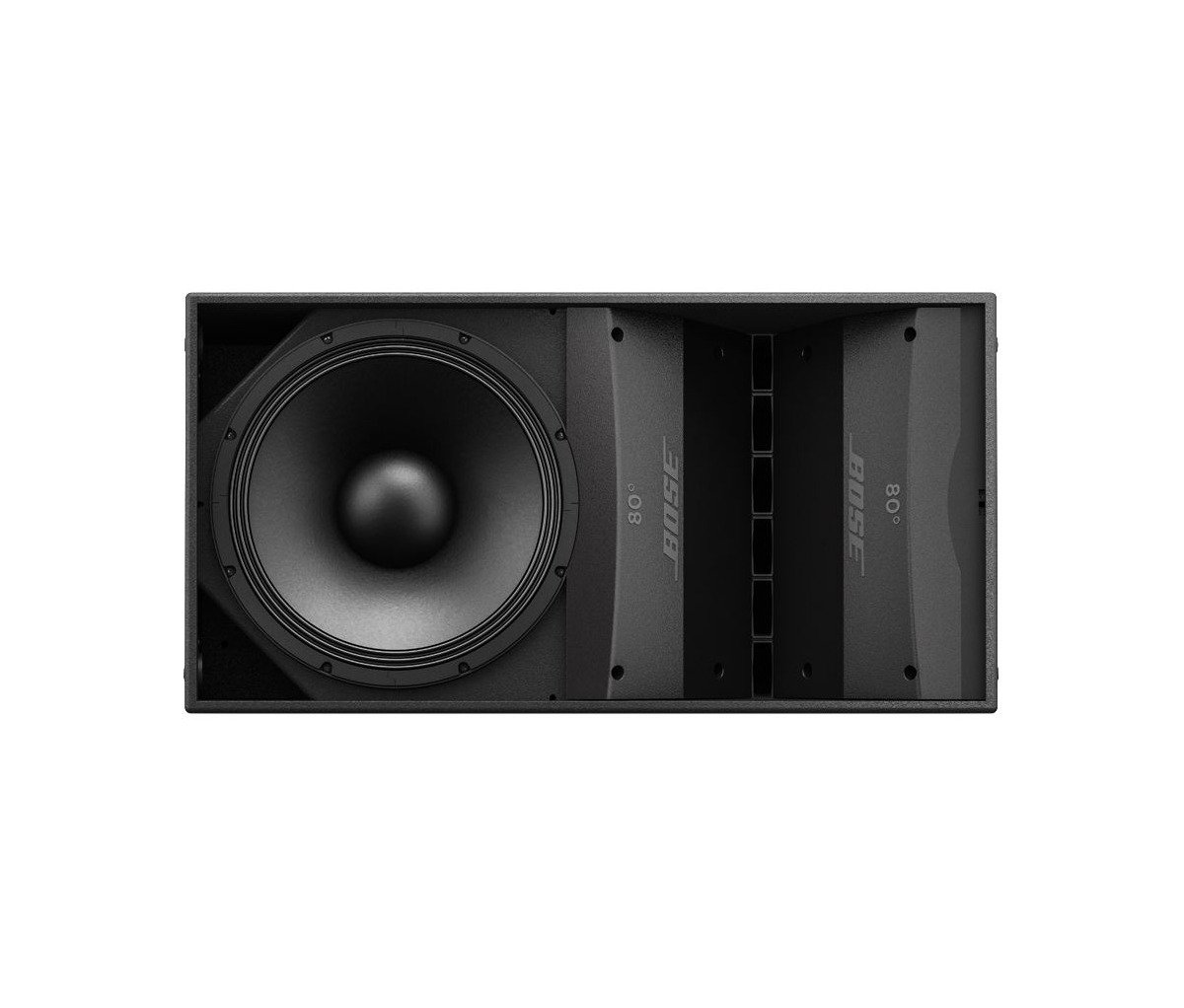

Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers.

Rated for direct-exposure outdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover.

Nominal ImpedancePassive: 8 ohms / Bi-amp: 8 ohms + 8 ohms
Enclosure MaterialExterior-grade birch plywood
ColorsBlack
Net Weight80.0 lb (36.3 kg)
Safety Agency RatingsEN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
Calculated Maximum SPL @ 1 mAM10/60: 122 dB (LF) / 129 dB (HF) / 129 dB (passive). AM10/80: 122 dB (LF) / 128 dB (HF) / 128 dB (passive). AM10/100: 122 dB (LF) / 127 dB (HF) / 127 dB (passive)
Coverage, Horizontal60 deg (AM10/60), 80 deg (AM10/80), 100 deg (AM10/100)
Coverage, Vertical10 deg
Introducing Bose ArenaMatch DeltaQ Loudspeakers
