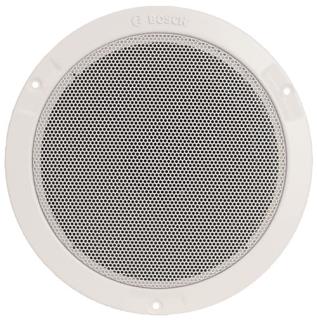

Bosch LHM0606 6 W Flush-Mount Ceiling Loudspeaker
The LHM0606 is a 6 W flush-mount ceiling loudspeaker for speech and background music in offices, corridors and retail. It drops into a ceiling cavity and sits flat with the tile, which is why it disappears in almost any interior.

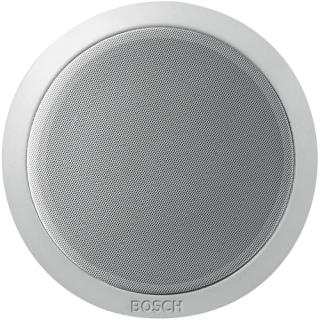

Power is set on the unit, so a zone can be balanced without going back to the amplifier. The /00-US version is the 70 V line model; the /10 is the metal version with mounting clamps for 100 V lines and ships with a 165 mm circular cutting template. Both cover 175 x 175 degrees at 1 kHz and run from 80 Hz to 18 kHz. Bosch lists the range as UL 2043 and UL 1480 certified.
| Rated power | 6 W |
|---|---|
| Rated input voltage | 70 V (LHM0606/00-US); 100 V (LHM0606/10) |
| Frequency range (-10 dB) | 80 - 18,000 Hz |
| Coverage angle HxV (-6 dB, 1 kHz) | 175 x 175 ° |
| Coverage angle HxV (-6 dB, 4 kHz) | 55 x 55 ° |
| Sensitivity (1 W, 1 m, 1 kHz octave) | 86 dB (LHM0606/00-US) |
| Mounting | Flush, in ceiling cavity |
| Color | White |
