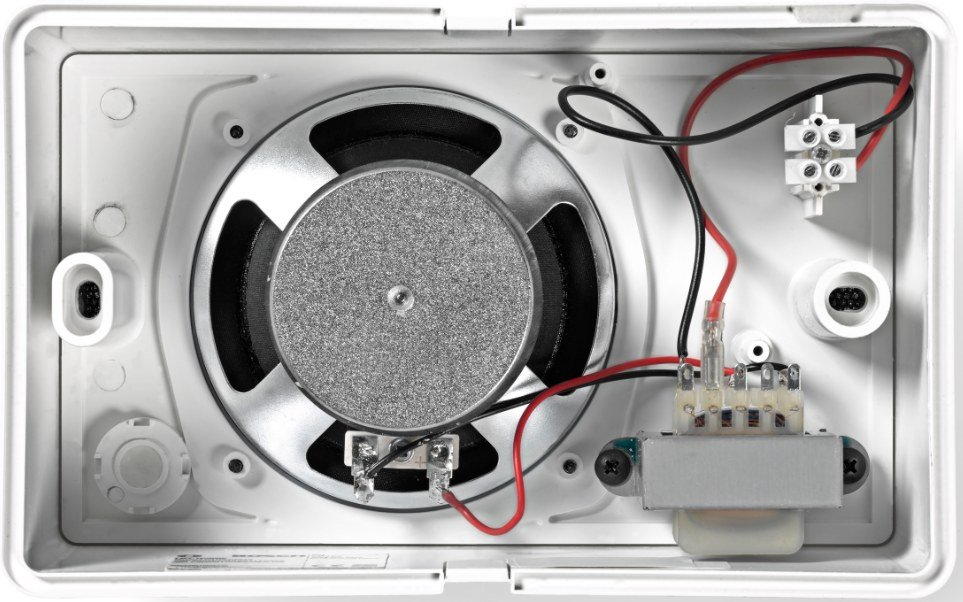

Bosch LB7-UC06 6 W ABS Cabinet Loudspeaker

The LB7-UC06 6 W ABS Cabinet Loudspeaker is a Bosch surface-mount cabinet loudspeaker for distributed paging and background music. It belongs to Bosch's public address and voice alarm range. It is rated at 6 W and Bosch quotes a 170 - 20000 Hz / 160 - 20000 Hz frequency response and 93 dB / 94 dB sensitivity.

It offers suitable for speech and music reproduction, compact size and knock-out ports for conduit - or cable entries. It ships with cabinet loudspeaker, installation instruction, 2 x mounting screws (4 x 38 mm) and 2 x rubber grommets. Pick the version you need from the options on this page; each one ships as its own Bosch part number.

Rated power (W)6 W
Rated input voltage (V)70 V; 100 V
Frequency range (-10 dB) (Hz)170 - 20000 Hz / 160 - 20000 Hz
Sensitivity (1 W, 1 m, 1 kHz octave) (dB)93 dB / 94 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB)79 dB
Coverage angle HxV (-6 dB, 1 kHz) (°)180 x 180 °
Coverage angle HxV (-6 dB, 4 kHz) (°)85 x 98 ° / 95 x 98 °

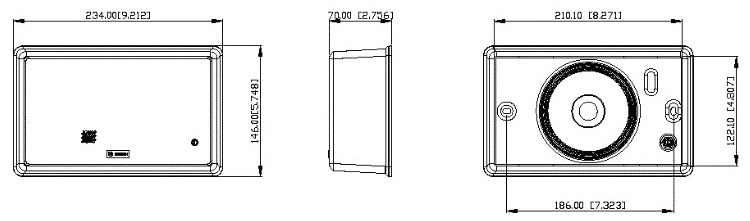

Dimensions (H x W x D) (mm)146 x 234 x 70 mm / 146 x 234 x 82 mm
