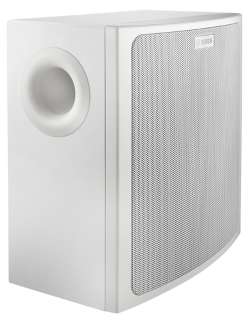

Bosch LB6-SW100 Wall Mount Cabinet Subwoofer
The LB6-SW100 Wall Mount Cabinet Subwoofer is a Bosch installation subwoofer that fills in the low end of a distributed sound system. It belongs to Bosch's public address and voice alarm range. Bosch quotes a 42 - 300 Hz frequency response and 88 dB sensitivity.
It offers A complete matched background/foreground music speaker solution in combination with optional available satellites LB6-S-D, large 8-inch (200 mm) woofer transducer for substantial low frequency output, direct connection of satellites to subwoofer - simplifies installation wiring, mounting bracket provides easy and secure mounting of speaker to wall and convenient detachable phoenix style signal connections speed up installation time. It ships with surface mount subwoofer, wall bracket, assembled in box, installation manual, 4 x M6 hex drive pan-head screws and 4 x rubber feet. Pick the version you need from the options on this page; each one ships as its own Bosch part number.
| Rated input voltage (V) | 70 V; 100 V |
|---|---|
| Frequency range (-10 dB) (Hz) | 42 - 300 Hz |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 88 dB |
| Dimensions (H x W x D) (mm) | 400 x 400 x 230 mm |
| Weight (kg) | 12.05 kg |
| Operating temperature (°C) | -25 - 55 °C |
| Storage temperature (°C) | -40 - 70 °C |
| Color | Black / White |
