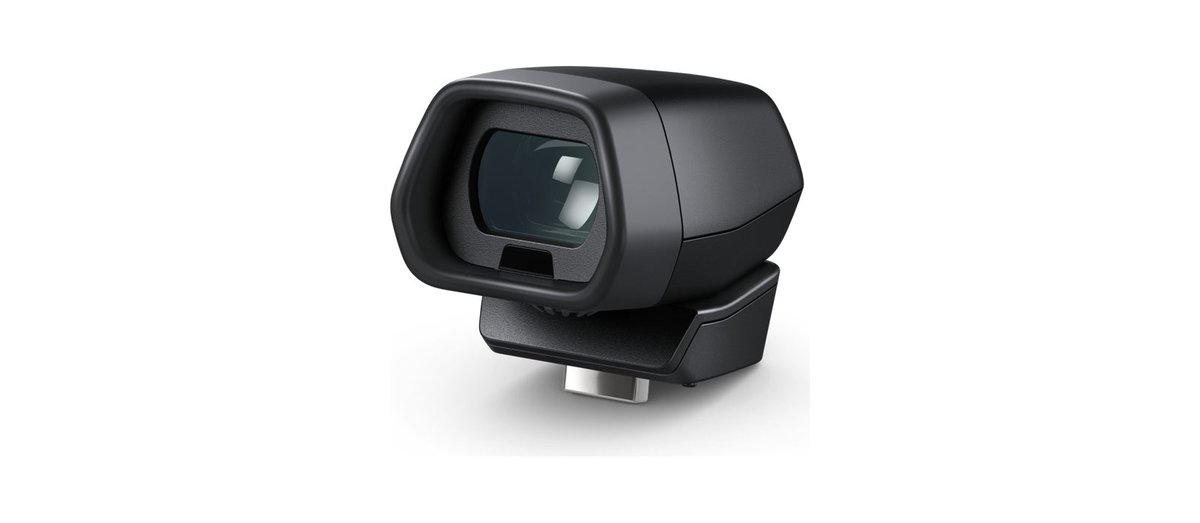

Blackmagic Pocket Cinema Camera Pro EVF
The Blackmagic Pocket Cinema Camera Pro EVF is an eye level viewfinder for the Pocket Cinema Camera 6K Pro. A 1280 x 960 micro OLED panel carries 3.68 million dots at 24 bit RGB, and a four element glass diopter adjusts from -4 to +4, so the image stays sharp for the operator's own eyesight without a corrective lens.
A built in proximity sensor switches the display on and off as the operator moves to and from the eyepiece, and camera settings, status and meters are drawn into the blank areas above and below the picture. The eyepiece tilts up to 70 degrees for low and shoulder mounted work, and four interchangeable silicone eye cups cover small, medium, left eye and right eye. Blackmagic part number BMD-CINECAMPOCHDMFTEVF.
| Display Type | Micro OLED |
|---|---|
| Display Resolution | 1280 x 960, 3.68 million dots |
| Color Precision | 24 bit RGB, 16.7 million colors |
| Frame Rates | Up to 60 fps |
| Focus | 4 element diopter, -4 to +4 |
| Power | Auto on and off controlled by built in proximity sensor |
| Eyepiece | Tilts up to 70 degrees vertically |
| Eye Cups | 4 interchangeable silicone cups: small, medium, left eye, right eye |
| Compatibility | Blackmagic Pocket Cinema Camera 6K Pro |
| Part Number | BMD-CINECAMPOCHDMFTEVF |
