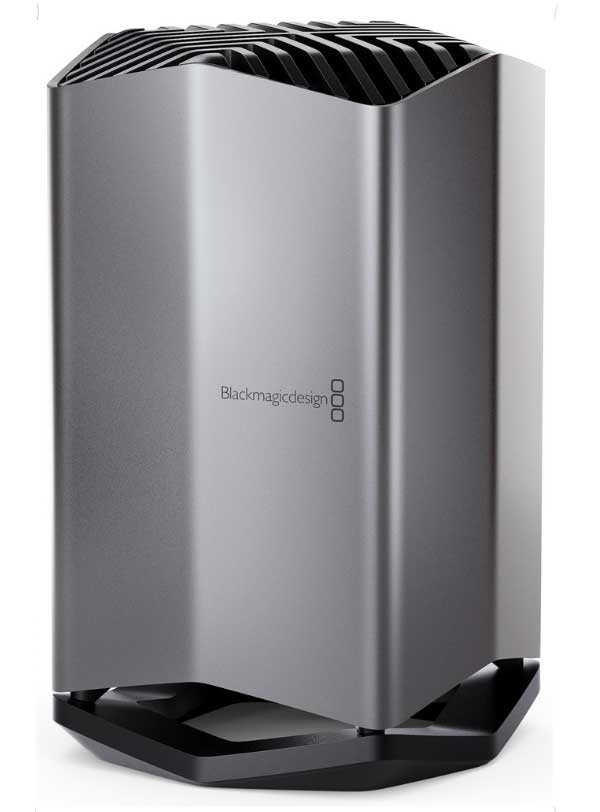

Blackmagic Cloud Store

High Performance Network Storage with Global Sync

The Blackmagic Cloud Store is a very fast high capacity network disk that's designed to handle large media files used on Hollywood feature films. The design uses advanced flash memory so it easily handles lots of simultaneous users. Plus it's extremely easy to set up! With Dropbox live sync, files can be distributed between multiple units globally for very fast local file access, even on lower cost internet connections. Unlike SAN systems, you don't need IT consultants and there are no subscription fees. There's even an HDMI monitor output with real time storage status! All this means you get much better features than discount storage products sold at office supply stores.

Designed for Film and Television

Blackmagic Cloud Store is the perfect network storage solution for any use! But it's perfect for film and television where large media files need to be shared between multiple users for editing, color correction, audio post and VFX work. It even handles massive 12K Blackmagic RAW digital cinema files! Each user gets zero latency and they don't need to store files on their local computer. It's the perfect solution for DaVinci Resolve! Dropbox sync allows multiple disks to be synchronized in different locations globally. Then each location gets the fastest editing experience possible. That’s critical for multicam editing where multiple media files are playing simultaneously!

Flash Memory Allows Multiple Simultaneous Users

The Blackmagic Cloud Store is available in 20 TB, 80 TB and massive 320 TB models, so you have lots of space for all your business files and video media. With video the standard for information delivery in business, that's enough capacity to store all your media in a single location on your network. M.2 flash memory cards are used for extreme reliability, high access speeds and zero seek times. Plus the M.2 cards are arranged in parallel RAID 5 groups so they can operate much faster than a single card. That ensures massive speed combined with fault tolerance. If a faulty M.2 card is detected, the cloud store will automatically enter read only, so you can still access your files.

High Performance for Digital Film Files

With 4 separate very high speed 10G Ethernet connections, Blackmagic Cloud Store is extremely fast. The internal memory core has been designed to saturate all four 10G Ethernet ports to their theoretical maximum speed, all at the same time! It’s so fast, most computers cannot keep up! Plus file access is very low latency, so responsiveness is fast. That’s possible because of the massive parallel processing used by the memory core. At maximum speed, the Blackmagic Cloud Store is extremely quiet with very little cooling fan noise. Even when editing large 12K digital film RAW files. It’s so fast, multicam editing is incredibly smooth, even if it’s used with massive digital film camera files!

Sync to Dropbox

Now you can setup a local cache of your Dropbox files! This makes working much faster because files are instantly available without needing to be loaded from the internet. Blackmagic Cloud Store will constantly work to stay in sync. Plus you can also save space on your computer by moving cached Dropbox files to the Blackmagic Cloud Store so they are accessible to everyone on your local network. You can even sync multiple Blackmagic Cloud Stores via Dropbox so people in different geographic locations can collaborate without latency because everyone has a local copy of the files. Dropbox is also a fantastic backup solution!

Real Time Monitoring

The most exciting feature is the HDMI monitoring output! Simply connect a TV or monitor to see live status of the Blackmagic Cloud Store! The storage map shows a graphic representation of the memory core and where the read and write access is happening for the connected users. It’s quite mesmerizing to watch! There are also four graphs that show you the data transfers on the four main 10G Ethernet connections. The main space indicator shows you the capacity of the memory core and how much is currently used. You can also add a custom name to the store! The status for each Dropbox connection is also shown. It's even possible to see connected users and the power supply status.

Redundant Design for Mission Critical Use

The Blackmagic Cloud Store saves files in a RAID 5 array of M.2 flash memory cards, ensuring protection of your data. Although the flash memory used in Blackmagic Cloud Store is extremely reliable, using RAID 5 adds extra protection! RAID 5 means every 6th M.2 card is used for parity. The parity card holds error correction data that can then be used to rebuild the files after eplacing an M.2 card. Plus the Blackmagic Cloud Store memory will automatically wear level, avoiding excessive data writes to the same location. It even has dual power supplies so it will keep operating if a power supply fails! All parts are common, allowing the Blackmagic Cloud Store to be repaired.

High Performance 10G Ethernet

The Blackmagic Cloud Store has four high speed 10G Ethernet ports, which are only found on expensive workstation computers. With 10G Ethernet, you get 10 times the speed of regular Ethernet. Plus most computers can be upgraded to add 10G Ethernet! The Blackmagic Cloud Store is so fast, it will run each 10G Ethernet port to its maximum capacity. Even when running all four 10G Ethernet ports at the same time! With a built in Ethernet switch, each port can be plugged into a separate computer, or they can be used together for 40G Ethernet. The Ethernet also features very low latency for fast access times. Two extra 1G Ethernet ports let you keep the 10G Ethernet ports free for faster computers.

Supports Local Backup and Ingest via USB-C Disks

The two USB-C ports on the Blackmagic Cloud Store can be used for loading and backup of files. If you connect a media card reader or a USB-C disk to the ingest port, then all files on that disk will be loaded into the cloud store. This means you don't need to tie up computers just to load files. Backup is also important and while Dropbox is a good backup solution, by connecting a USB disk to the backup port, you can do local backups without any ongoing costs and with total privacy. It works with a USB-C disk, or even large USB-C disk arrays. The latest files will be loaded first and the Blackmagic Cloud Store will keep backing up for as long as the disk is connected.

Repairable Design for Long Life

Blackmagic Cloud Store is easy to repair by a service engineer, even though it’s not a rack mount design! The design is based on a core chassis that attaches all memory PCBs and power supplies. This means various assemblies can be unbolted from the core chassis and replaced. The memory core is made up of M.2 cards arrayed on interface PCBs, with each M.2 card represented by a fault LED so you can identify and replace a card. Plus Cloud Store runs Blackmagic OS and applies wear leveling, so each M.2 card won't see excessive data writes. You can see any card faults on the utility and the HDMI monitor output. The utility also lets you run a rebuild on the memory core once a card is replaced.

Free Software for Mac and Windows

When you need to change settings, you can use the Blackmagic Cloud Store utility that's available on Mac and Windows. By default, the Blackmagic Cloud Store Mini is set to DHCP, so you can connect it to your network and start transferring files. In many ways, it plugs in just like a regular hard disk. That means it's so easy to setup, you won't need an IT person to get started! However if you want to customize your network, then the utility software lets you change the network settings in the cloud store. The utility also lets you add Dropbox sync folders.
