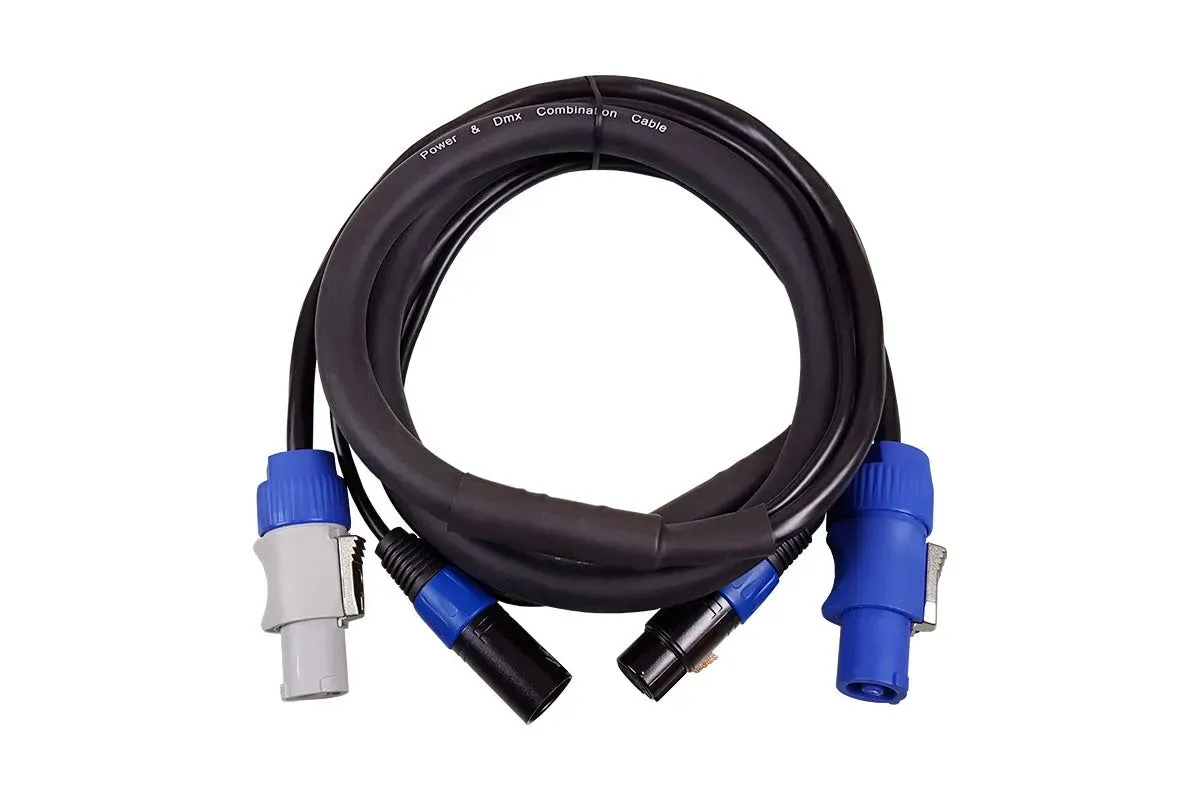

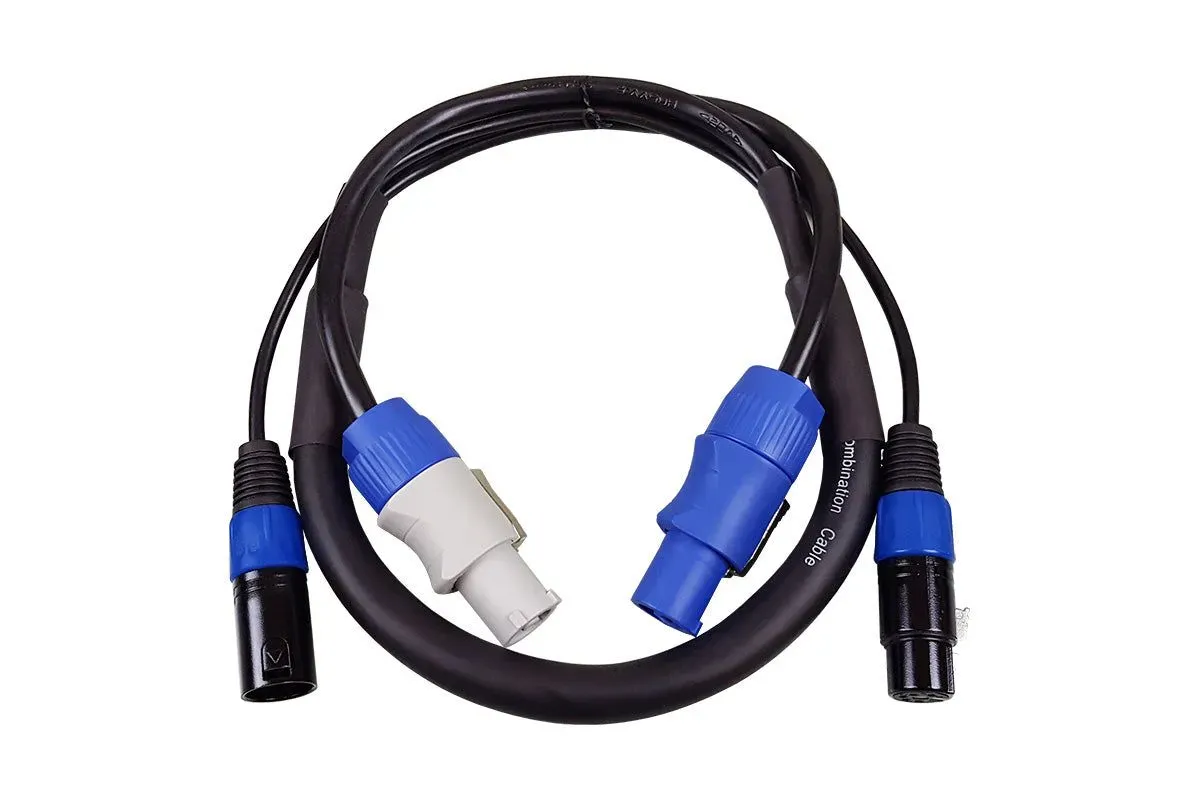

Blizzard Lighting Cool Cable 5-Pin DMX + powerCON Compatible Combo Cable, 3 ft
One combo cable replaces the pair of power and DMX jumpers that normally sit between two fixtures. The power side is 14 AWG three-conductor cord rated to 15 A with powerCON compatible input (blue) to output (white) connectors; the data side is a 5-pin XLR male-to-female Cool Cable DMX run at 120 ohm with low capacitance and a double foil-and-braid shield.
Both cables are bound in a single flexible black PVC jacket with heat shrink at the ends, and Blizzard includes hook-and-loop straps for coiling. At three feet it is sized for adjacent fixtures on the same bar. Note that the power connectors are compatible with Neutrik powerCON hardware but are not manufactured by or endorsed by Neutrik. Lifetime warranty.
| Data | 5-pin XLR connectors, double shielded |
|---|---|
| Impedance | 120 ohm, low capacitance |
| Power Cord | 14 AWG, 3 conductor |
| Max Current | 15 A |
| Power Connectors | powerCON compatible input (blue) to output (white), UL recognized components |
| Jacket | Flexible black PVC with heat shrink |
| Included | Secure hook-and-loop cable straps |
| Warranty | Lifetime |
