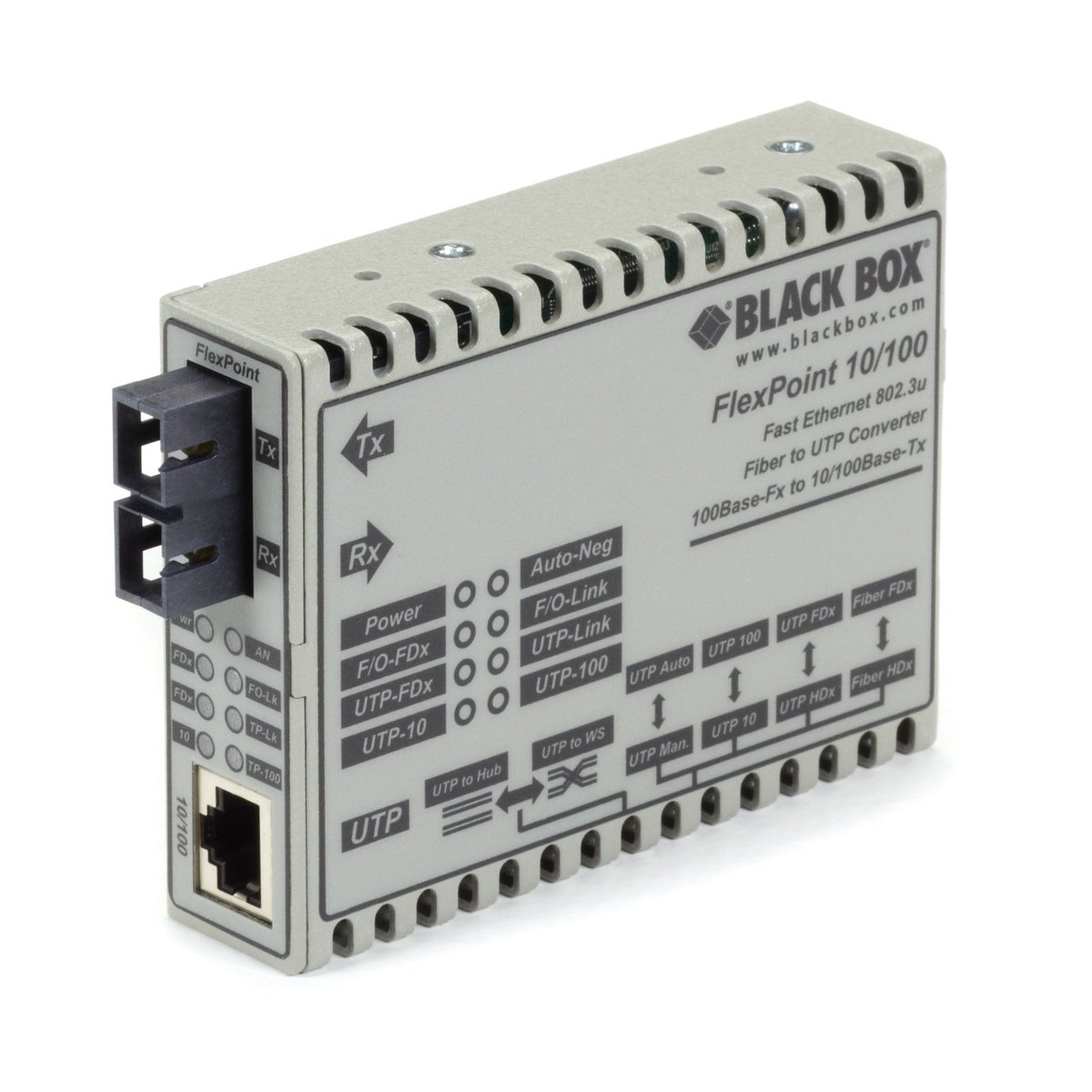

Black Box LMC100A-SC-R3 Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 1300nm, 2km, SC, North America Power Supply

Where the copper run stops, the LMC100A-SC-R3 picks it up on glass: 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 1300nm, 2km, SC, North America Power Supply. Speed: 100-Mbps. Connectors are (1) RJ45.

It measures 1-in. H x 3-in. W x 4-in. D (2.5 x 7.6 x 10.2-cm) and weighs 0.4-lb. (0.182-kg). Rated for Standard (0 to +40 C).

Speed100-Mbps
Connectors(1) RJ45; (1) SC
Standards100BASE-FX
Operating TemperatureStandard (0 to +40 C)
Dimensions1-in. H x 3-in. W x 4-in. D (2.5 x 7.6 x 10.2-cm)
Weight0.4-lb. (0.182-kg)
Country of OriginUnited States
Copper Data Transfer Rate10/100-Mbps
