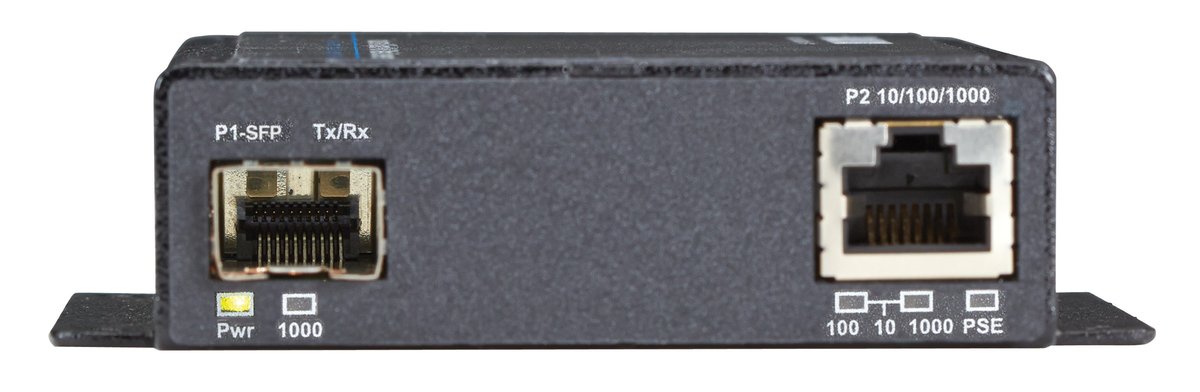

Black Box LGC5300A LGC5300 Series Gigabit Ethernet (1000-Mbps) Industrial PoE Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps SFP Fiber, Extreme Temperature

Where the copper run stops, the LGC5300A picks it up on glass: 10/100/1000-Mbps Copper to 1000-Mbps SFP Fiber, Extreme Temperature. Connectors are (1) RJ45.

Power: DC terminal block: 46-57 VDC, 800 mA typical. It measures 1-in. H x 4.5-in. W x 6-in. D (2.54 x 11.4 x 15.2-cm) and weighs 1.1-lb. (0.5-kg). In the box: (1) Unit, (1) Cable Strain Relief Kit, (1) Plastic Cable Clamp, (2) Washers, (1) Lock, (1) Flat, (1) 3-Position Phoenix Connector.

Connectors(1) RJ45; (1) LC; (1) SFP
PowerDC terminal block: 46-57 VDC, 800 mA typical
Dimensions1-in. H x 4.5-in. W x 6-in. D (2.54 x 11.4 x 15.2-cm)
Weight1.1-lb. (0.5-kg)
ApprovalsRoHS2; CE; UL; FCC Class A
Country of OriginUnited States
EthernetCopper: 10/10-/1000BASE-T; Fiber: 1000BASE-X
PoE15.4 W per UTP port
