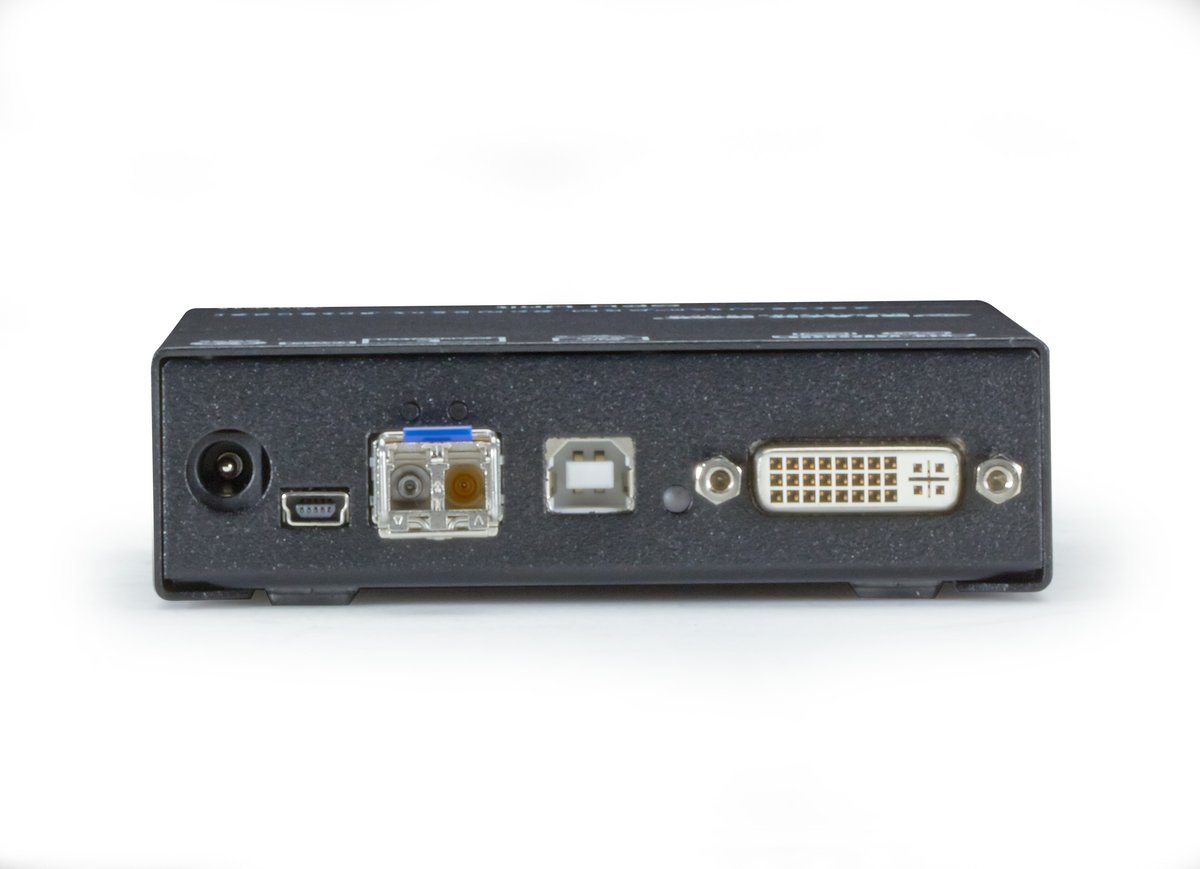

Black Box ACX1T-11-SM KVM Extender Transmitter - Single-Monitor, DVI-D, (2) USB-HID, 1G, (1) Singlemode Fiber

Black Box builds the ACX1T-11-SM to put the console somewhere other than the rack: Single-Monitor, DVI-D, (2) USB-HID, 1G, (1) Singlemode Fiber. Resolution: 1920 x 1200 at 60 Hz. Connectors are (1) LC Singlemode.

Power: Per unit: 5-VDC. Front-panel indication: Status LEDs.

Resolution1920 x 1200 at 60 Hz; up to 24-bit color depth
Distance32,800 feet (10,000 m) using single-mode 9-um fiber cabl; 3,280 feet (1000 m) using multimode 50-um (OM3) cable; 1,300 feet (400 m) using multimode 50-um cable; 650 feet (200 m) using multimode 62.5-um cable
Connectors(1) LC Singlemode; (1) DVI-D; (1) USB Type-B; (1) Mini USB
Operating System SupportAll Windows, MAC, Sun, Linux/Unix
Hotkey SupportYes, when main DKM switch is connected (Shift, Shift)
PC SelectionPoint to Point: no interface, always connected DKM KVM Switch: Hotkeys
IndicatorsStatus LEDs
PowerPer unit: 5-VDC; Single-head devices: 800 mA max.; Dual-head devices: 1600 mA max Output Voltage: 5 VDC Output Current: 5 Amps
