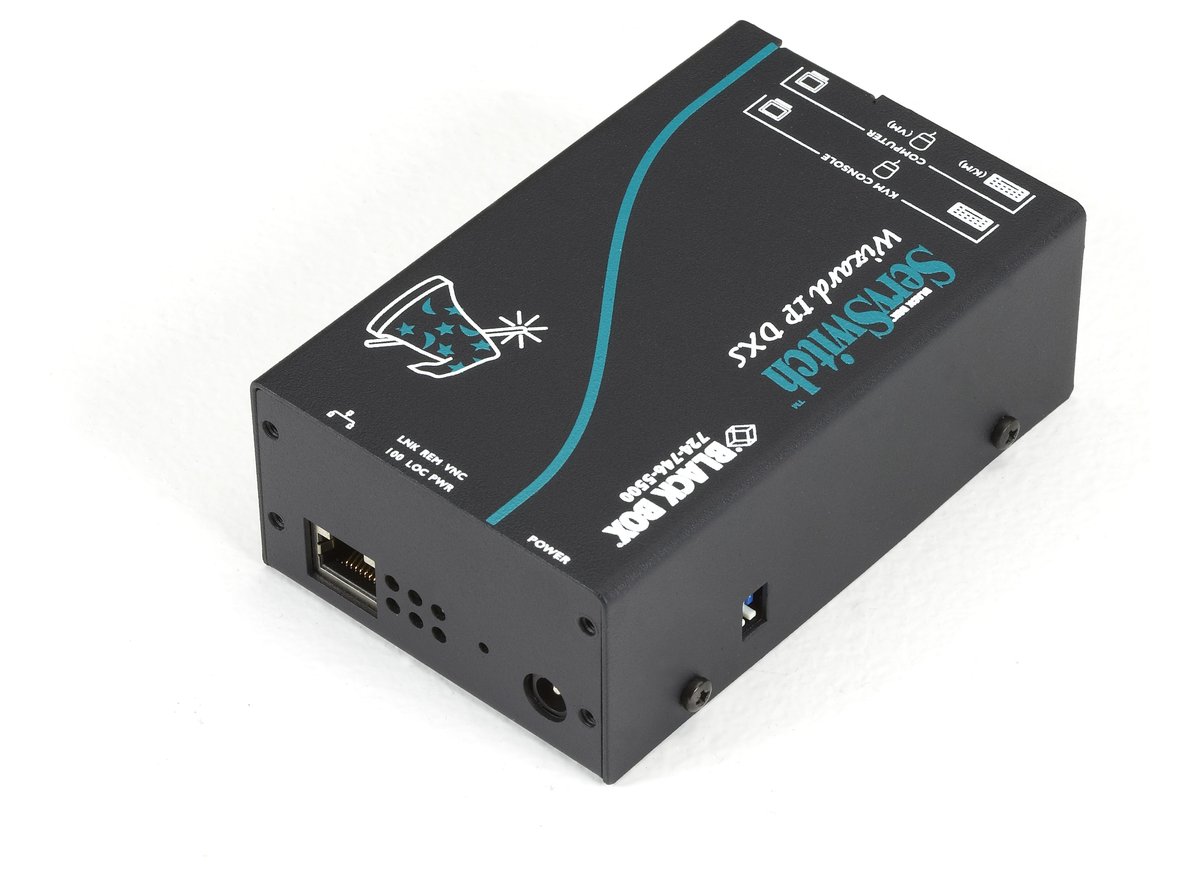

Black Box ACR201A ServSwitch Wizard IP DXS KVM-over-IP Gateway - Dual-Access VGA, PS/2
A small-form-factor IP engine that attaches to a server - or to the console port of an existing KVM switch - and makes it reachable over the LAN or the internet. It handles VGA targets up to 1600 x 1200 with USB or PS/2 keyboard and mouse (the USB adapter is supplied), and video performance and mouse tracking over IP are the parts Black Box built this box around.
Security comes from AES 128-bit encryption, RSA 2048-bit public key authentication and RealVNC, which gives you a ciphered session and a client that already exists on most admin machines. Sixteen user profiles and access data logging cover the audit side. Dual access means a local user at the unit and a remote user over the WAN, and the Ethernet port autosenses 10/100 Mbps.
| Function | KVM-over-IP gateway for a server or KVM switch |
|---|---|
| Video | VGA targets up to 1600 x 1200 |
| Target connection | USB or PS/2 keyboard and mouse (USB adapters included) |
| Remote protocol | VNC (RealVNC) |
| Security | AES 128-bit encryption, RSA 2048-bit public key authentication |
| User management | 16 user profiles with access data logging |
| Network | Autosensing 10/100 Mbps Ethernet |
| Access | Dual access - local user port plus remote LAN/WAN |
