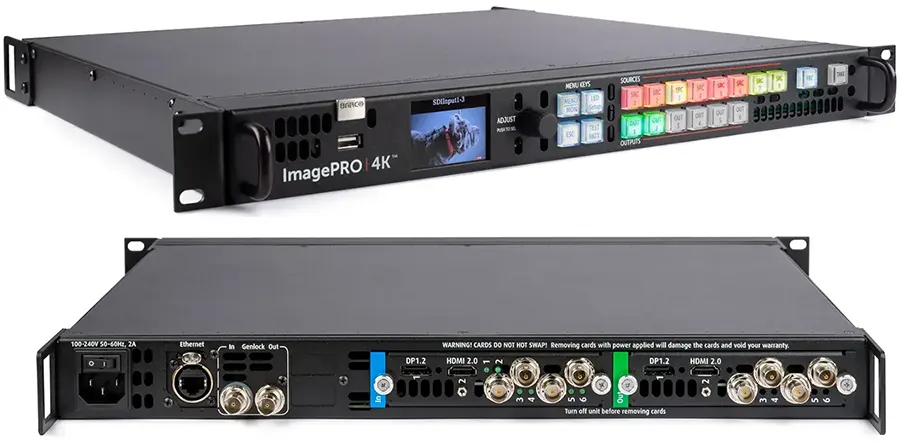

The Barco ImagePRO 4K is a compact all-in-one scaler, converter, and switcher for live visuals, handling the highest-quality signals - 4K at 60p, 4:4:4 sampling, and 10-bit color - with just one frame of latency. Twelve-bit internal processing manages pre-scaling and cropping, so glitches are solved before they reach the screen.
The unit comes from the factory with a TriCombo input card that accepts 1x HDMI 2.0, 1x DisplayPort 1.2, and either 2x 12G-SDI or 4x 3G-SDI, plus a matching output stage that delivers up to six HD scaler outputs or two 4K60p outputs with independent scaling, sizing, color correction, and image rotation. Everything fits in a rugged 2RU chassis.
Resolution
Up to 4K 60p
Color
4:4:4 sampling,
Internal Processing
12-bit
Latency
1 frame, progressive
Input Card
TriCombo: 1x 2.0, 1x DisplayPort 1.2, 2x or 4x 3G-
Scaler Outputs
Up to 6x HD or 2x 4K60p, independent scaling, sizing, color, rotation
Form Factor
Compact 2RU rugged chassis
Dimensions
Height: 4.37 cm / 1.72" 1 RU Rack mount Width: 48.41 cm / 19.06" Incl. rack mount Depth: 40.41 cm / 15.91”
Weight
6.8 kg / 15.2 lbs
Power
Input power: 100-240 VAC 50/60Hz 125w
Outputs
1x DisplayPort 1.2 4K60p 4:4:4 10bit
10-bit1,024 tonal steps per colour channel, against 256 in 8-bit. Smoother gradients and more room for grading.
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
12G-SDISDI at 12 Gbit/s. One coaxial cable carries 4K video at up to 60 frames per second.
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.
