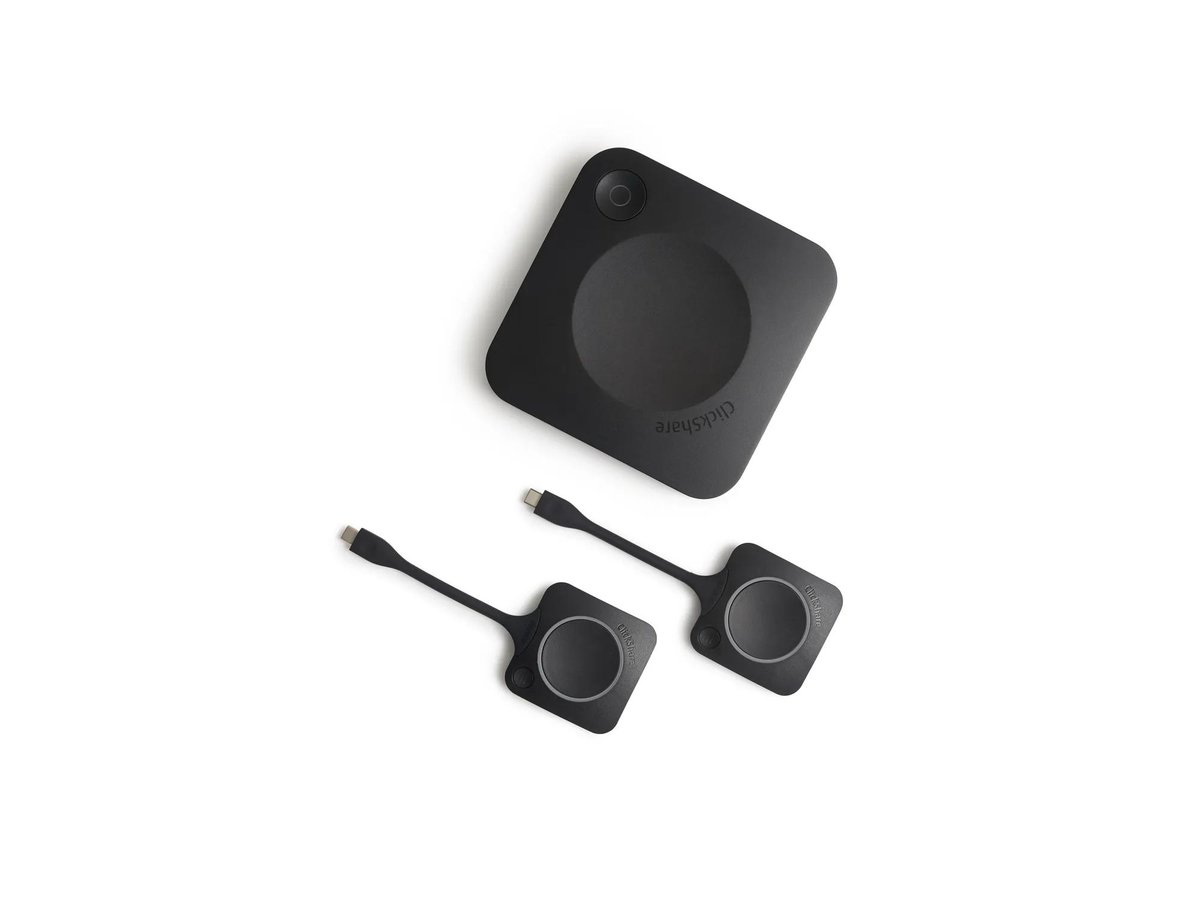

Barco CX 20
The ClickShare CX-20 is Barco's entry-level wireless conferencing base unit for small meeting rooms and huddle spaces. Walk in, connect once, and it automatically links your laptop to the room's cameras, microphones, speakers, sound bars, and display, so you can run a meeting from your own machine on your preferred video platform.
Sharing and conferencing are one click on the included ClickShare Button or through the ClickShare App, for both employees and guests. The base unit outputs 4K UHD at 30Hz over HDMI or USB-C, connects by 1Gbit Ethernet or Wi-Fi, and is fully encrypted and cloud-managed. It ships with one ClickShare Button.
| Video Output | 4K UHD (3840 x 2160) at 30Hz, HDMI 1.4b or USB-C DisplayPort 1.2 |
|---|---|
| ClickShare Buttons | 1 (included) |
| Conferencing | Via ClickShare App or Button, connects to room peripherals |
| Native Protocols | Airplay, Google Cast, Miracast |
| Max Sources On Screen | 1 |
| Connections | 1x Ethernet 1Gbit, 1x USB-C 2.0 (front), 1x USB-A 2.0 (front) |
| Dimensions | 34 x 135 x 135 mm (H x W x D), 900 g |
| Management | Encrypted, cloud-managed, LAN and Wi-Fi |
