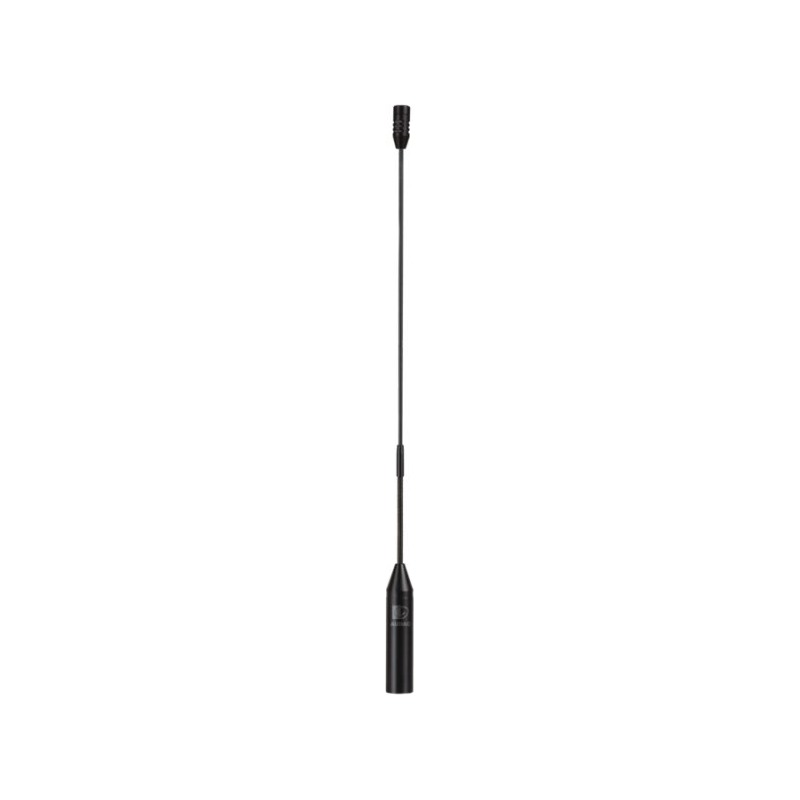

AUDAC CMX215 Pipe-Neck Condenser Microphone

The CMX215 is AUDAC's pipe-neck condenser microphone. The capsule is a Back electret condenser with a Cardioid (unidirectional) pickup pattern. Sensitivity measures -45 dB +/- 3 dB / Pa (@ 1 kHz) at 1 W / 1 m over a 50 Hz - 18 kHz response with a maximum sound pressure of 130 dB. Signal to noise is 75 dB.

Power comes from 10 ~ 52 V DC Phantom Power. It measures 0.75 x 15.28 in (dia. x L) (CMX215/30) and weighs 0.15 lb. Supplied with Windscreen (MWS200/B). Order codes: CMX215/30 is the 30 cm version; CMX215/45 is the 45 cm version; CMX215/55 is the 55 cm version.

  • Connector3-pin XLR
  • Polar PatternCardioid (unidirectional)
  • Frequency Response (+/- 3 dB)50 Hz - 18 kHz
  • Sensitivity (1W/1m)-45 dB +/- 3 dB / Pa (@ 1 kHz)
  • Power Supply10 ~ 52 V DC Phantom Power
Microphone TypeBack electret
Polar Pattern (unidirectional)
Frequency Response (+/- 3 dB)50 Hz - 18 kHz
Sensitivity (1W/1m)-45 dB +/- 3 dB / Pa (@ 1 kHz)
Impedance +/- 30%200 ohms
Signal / Noise75 dB
Sound Pressure (Max. W/1m)130 dB
Power Supply10 ~ 52 V DC
Weight0.070 kg
Connector3-pin
