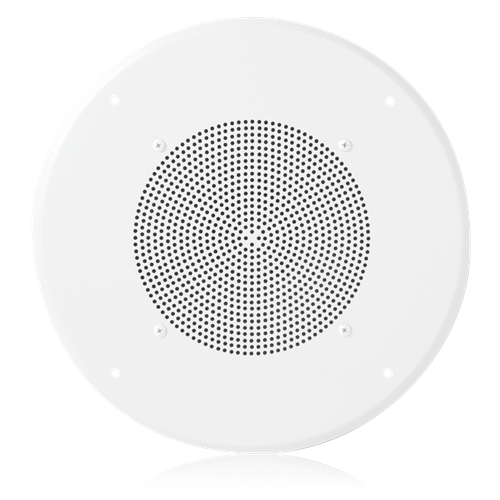

AtlasIED UKT70-2C-U51-8 8" Dual Voice Coil In-Ceiling Speaker for Fire Signaling with 5-Watt 70V Transformer and

The AtlasIED UKT70-2C-U51-8 is an 8" dual voice coil in-ceiling speaker for fire signaling with 5-watt 70V transformer and U51-8 baffle. AtlasIED's UKT70-2C-U51-8 are 8" diameter dual voice coil speakers equipped with dual (whizzer) cone and 10 oz. Ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Published frequency response is 60Hz - 8kHz.

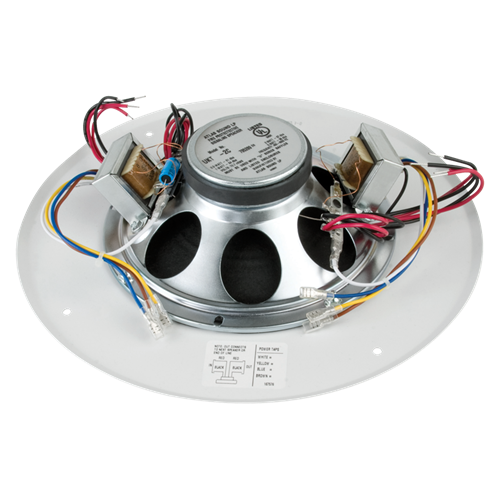

Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle. To comply with UL requirements, speaker packages must be used with UL-approved enclosures. AtlasIED lists attractive ceiling-loudspeaker/baffle assemblies provide unobtrusive appearance of life safety and emergency signaling loudspeakers; listed under UL standard 1480 (speakers for fire-protective signaling systems); selection of baffle styles and multi-tapped transformers meet a variety of aesthetic and application requirements; selection of UL approved, companion enclosures is offered. It measures 2 7/8" deep and 8" in diameter. It is safety listed to UL 1480 and carries a manufacturer warranty of 60 months from date of purchase.
