AtlasIED SM8SUB70-W 8" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer - White
Discontinued by the manufacturer. Still available while our remaining stock lasts - contact us to confirm availability before ordering.
The AtlasIED SM8SUB70-W is an 8" surface mount subwoofer with 60-watt 70V/100V transformer - white. The SM8SUB70 8" subwoofer system is perfect for restaurants, bars, and high-fashion retail outlets. The system utilizes a 8" woofer housed in a 915 cubic inch multi-angle, flyable, wood enclosure system to provide extended low frequency response with a wide variety of mounting options. It runs a sub driver over 55Hz - 100Hz.

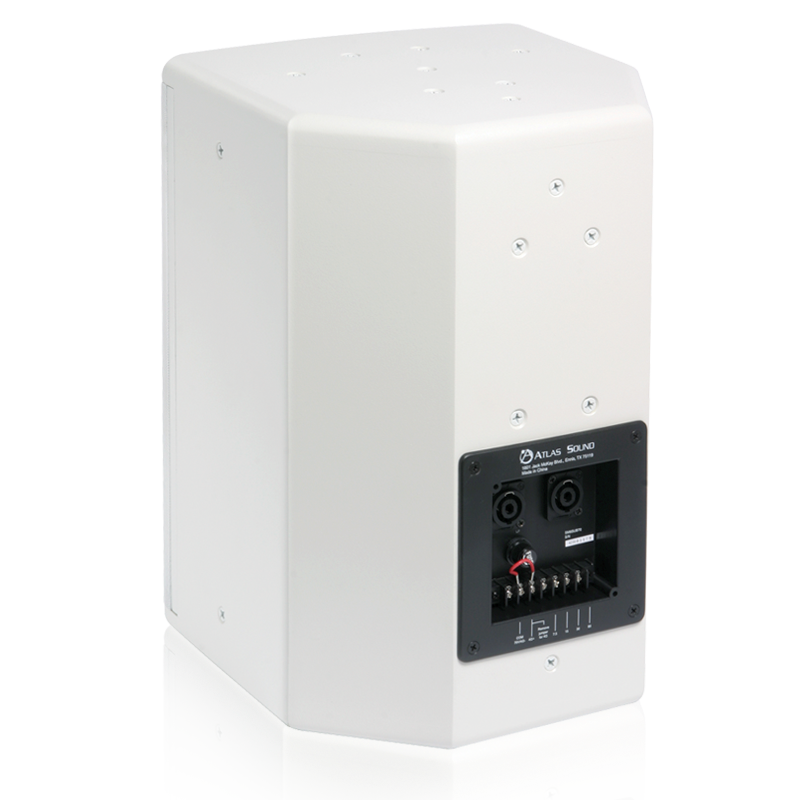

(Not for outdoor use!). Inserts are included for use with 1/4"-20 drop forge eyebolts, optional SM8CBKT-B /-W mounting bracket. AtlasIED lists attractive, yet heavy-duty grille assembly; barrier strip input for 70.7/100V/8 ohm or parallel 4 pole speak-ON™ input for 8 ohm operation only; durable white, rough-coat finish; fuse protection for driver. It measures 15 1/2" high, 10 5/8" wide, and 10 3/8" deep. It ships at 26.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | SM8SUB70-W |
|---|---|
| Frequency Response | 55Hz - 100Hz |
| Sensitivity | 89dB |
| Power Taps | 7.5, 15, 30, 60 & 8Ω |
| Speaker Type | Sub |
| Dispersion | Omni |
| Height | 15 1/2" (39.37 cm) |
| Width | 10 5/8" (26.9875 cm) |
| Depth | 10 3/8" (26.3525 cm) |
| Shipping Weight | 26.00 lbs (11.79 kgs) |
| Warranty Period | 60 months from date of purchase |
