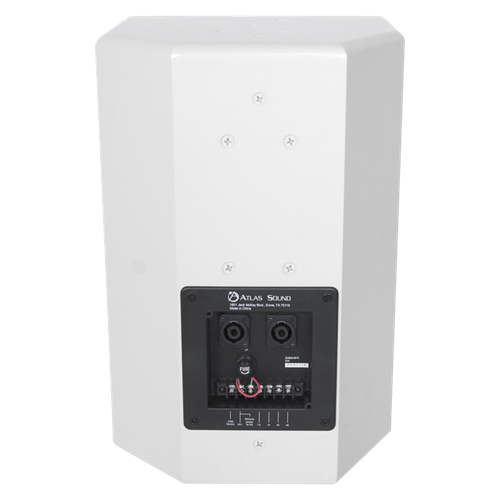

AtlasIED SM8CXT-W 8" 2-Way Compression Driver Coaxial Surface Mount Speaker with 60-Watt 70V Transformer - White
Discontinued by the manufacturer. Still available while our remaining stock lasts - contact us to confirm availability before ordering.
The AtlasIED SM8CXT-W is an 8" 2-way compression driver coaxial surface mount speaker with 60-watt 70V transformer - white. SM Series speakers offer quality sound reproduction and contemporary styling. The SM8CXT-W features the SM8CXT60 - a 150 watt speaker that combines an 8" diameter, low frequency transducer and a 1" exit, compression driver. The driver is a HIGH PERFORMANCE COAXIAL.
The speaker has a curvlilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. AtlasIED lists attractive, heavy-duty grille assembly; barrier strip input for 70.7/100V/8 ohm or parallel 4 pole speak-ON™ input for 8 ohm operation only; durable white finish; fuse protection for low and high frequency drivers. It measures 15 1/2" high, 10 5/8" wide, and 10 3/8" deep. It ships at 19.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | SM8CXT-W |
|---|---|
| Speaker Type | HIGH PERFORMANCE COAXIAL |
| Sensitivity | 92dB |
| Power Taps | 7.5, 15, 30, 60 Watts & 8Ω |
| 8Ω RMS Power | 150 Watts |
| Dispersion | 90° |
| Height | 15 1/2" (39.37 cm) |
| Width | 10 5/8" (26.99 cm) |
| Depth | 10 3/8" (26.35 cm) |
| Shipping Weight | 19.00 lbs (8.62 kgs) |
| Warranty Period | 60 months from date of purchase |
