AtlasIED SM12CXT-W 12" Coaxial Surface Mount Speaker, White
The SM12CXT-W is the white-finish version of AtlasIED's 12" coaxial surface-mount speaker, built for school auditoriums, gymnasiums, cafeterias, and sanctuary systems where a lighter enclosure blends into the room. A curvilinear, treated-paper cone and 1" compression driver exit run through a built-in crossover network for integrated two-way output.

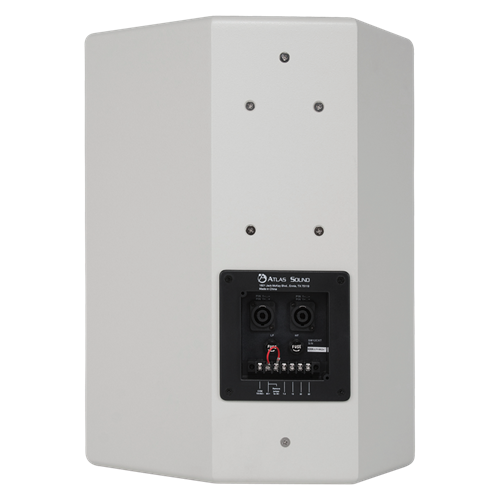

Twelve quarter-inch inserts support overhead suspension, and a 60-watt 70V transformer handles standard distributed wiring; the same cabinet ships in black as the SM12CXT-B for rooms that need the darker finish instead.
| Part Number | SM12CXT-W |
|---|---|
| Speaker Type | 12" low-frequency + 1" compression driver, 2-way |
| Power Rating | 250W |
| Transformer | 60W, 70V |
| Dispersion | 90-degree conical (2kHz octave band) |
| Mounting | 12 quarter-inch inserts for overhead suspension |
| Finish | White wood enclosure, metal grille |
| Application | Auditoriums, gymnasiums, cafeterias, sanctuaries |
