AtlasIED Q4612 12 inch Q Series 3 Cubic ft Enclosure Square

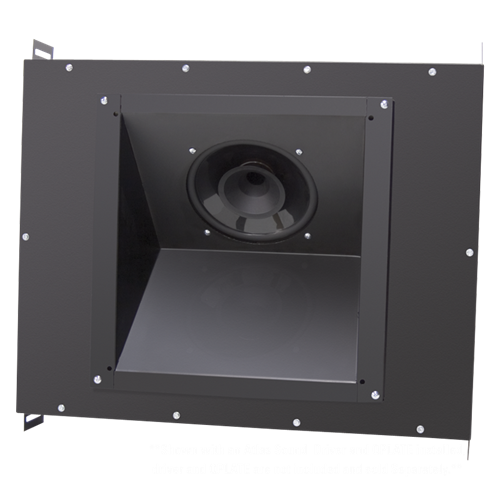

The AtlasIED Q4612 is a 12 inch Q Series 3 cubic ft enclosure square. **Shown with an AtlasIED Driver and QPLATE installed, driver and QPLATE are not included and sold Separately.**. This 12" Q Series enclosure has a unique acoustical fiber board permanently affixed to the inner walls of the enclosure which effectively eliminates the "hangover" and vibration normally associated with large metal enclosures. It is cut for 12" loudspeakers.
To achieve additional rigidity, unique ribs are formed on the back side of the enclosure. In addition, the inner walls are lined with 1 1/2" (38mm) thick fiberglass with a 1 1/2 lb./cu.ft. AtlasIED lists 3 cubic foot capacity - matches well with C12BT60 driver; high performance enclosure for 12" loudspeakers; requires 164-12A (white) or 164-12A-052 (black) baffle. It measures 12" high, 23" wide, and 18" deep. It ships at 36.50 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | Q4612 |
|---|---|
| Speaker Size | 12 |
| Mounts Baffle | 164-12 |
| Height | 12" (30.48 cm) |
| Width | 23" (58.42 cm) |
| Depth | 18" (45.72 cm) |
| Shipping Weight | 36.50 lbs (16.56 kgs) |
| Warranty Period | 60 months from date of purchase |
