AtlasIED AP-S15RTHR 15A Half Width Rack Power Conditioner with Remote Activation
Discontinued by the manufacturer. Still available while our remaining stock lasts - contact us to confirm availability before ordering.
The AtlasIED AP-S15RTHR is a 15A half width rack power conditioner with remote activation. The AP-S15RTHR has been designed to fit into Atlas half width equipment racks. The AP-S15RTHR meets or exceeds most installation requirements for AC power distribution and equipment power protection.

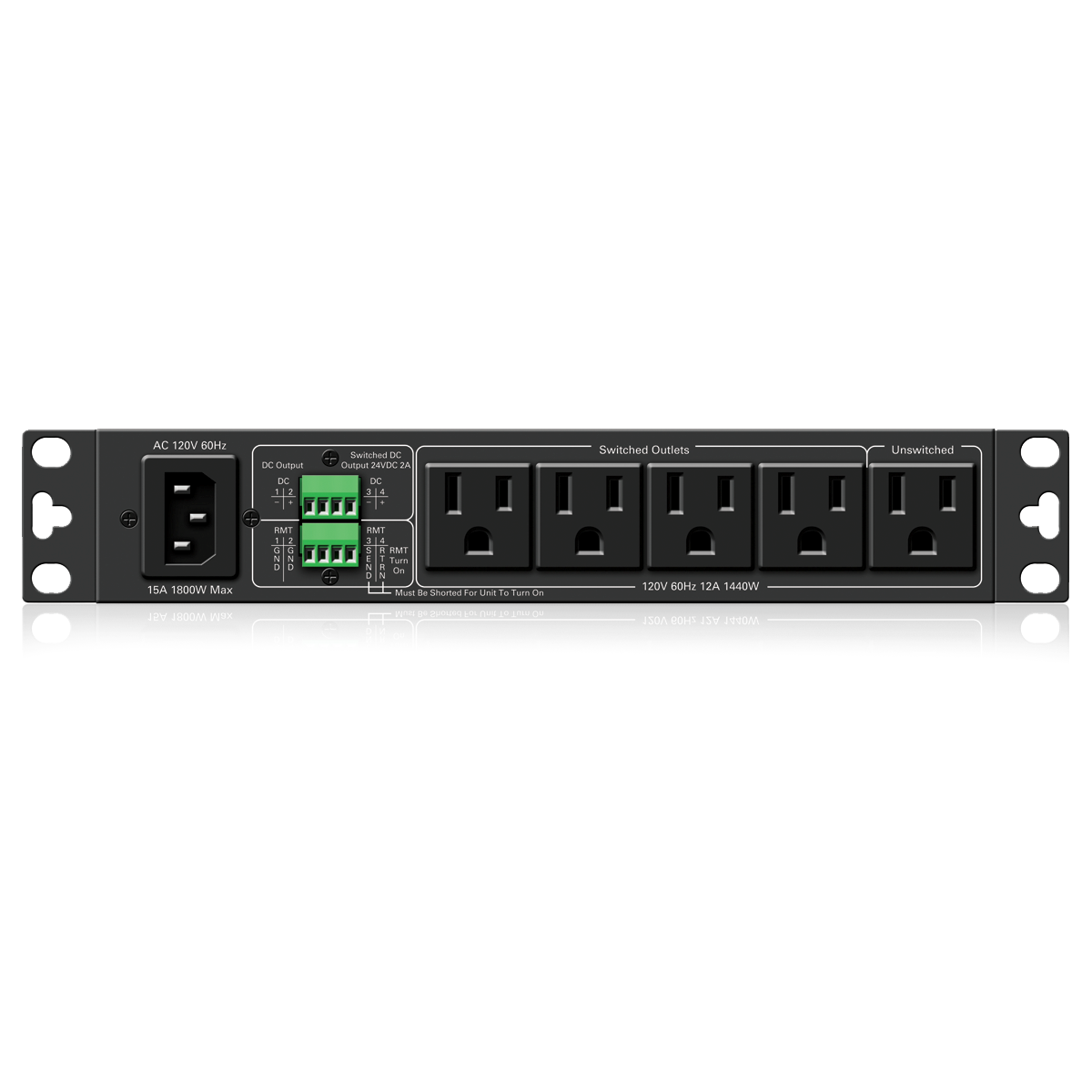

The AP-S15RTHR design offers power management control, remote activation, 24VDC 2000mA output, noise filtering, spike/surge protection and six AC outlets making it the most compact, cost effective power management protection system on the market today. The AP-S15RTHR features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. AtlasIED lists half width rack design 8.9" wide with removable rack ears; circuit breaker protection @ 15A; 6 total outlets , 4 rear panel switched; removable IEC power cord with a retainer bracket. It measures 1.75" (44.5mm) high, 8.9" (215.9mm) No Rack Ears wide, and 8" (203mm) deep. It carries a manufacturer warranty of 12 months from date of purchase.
| Part Number | AP-S15RTHR |
|---|---|
| Max AC Mains Current | 15 Amp |
| Temperature Range | 5° - 35°C |
| Operating Voltage | 102VAC - 132VAC |
| Power Consumption | 8-Watts |
| Noise Attenuation | 10dB @ 10kHz/40dB @ 100kHz/10dB @ 10MHz |
| Height | 1.75" (44.5mm) |
| Width | 8.9" (215.9mm) No Rack Ears |
| Depth | 8" (203mm) |
| Weight | 5.5 lbs. (2.49kg) |
| Warranty Period | 12 months from date of purchase |
