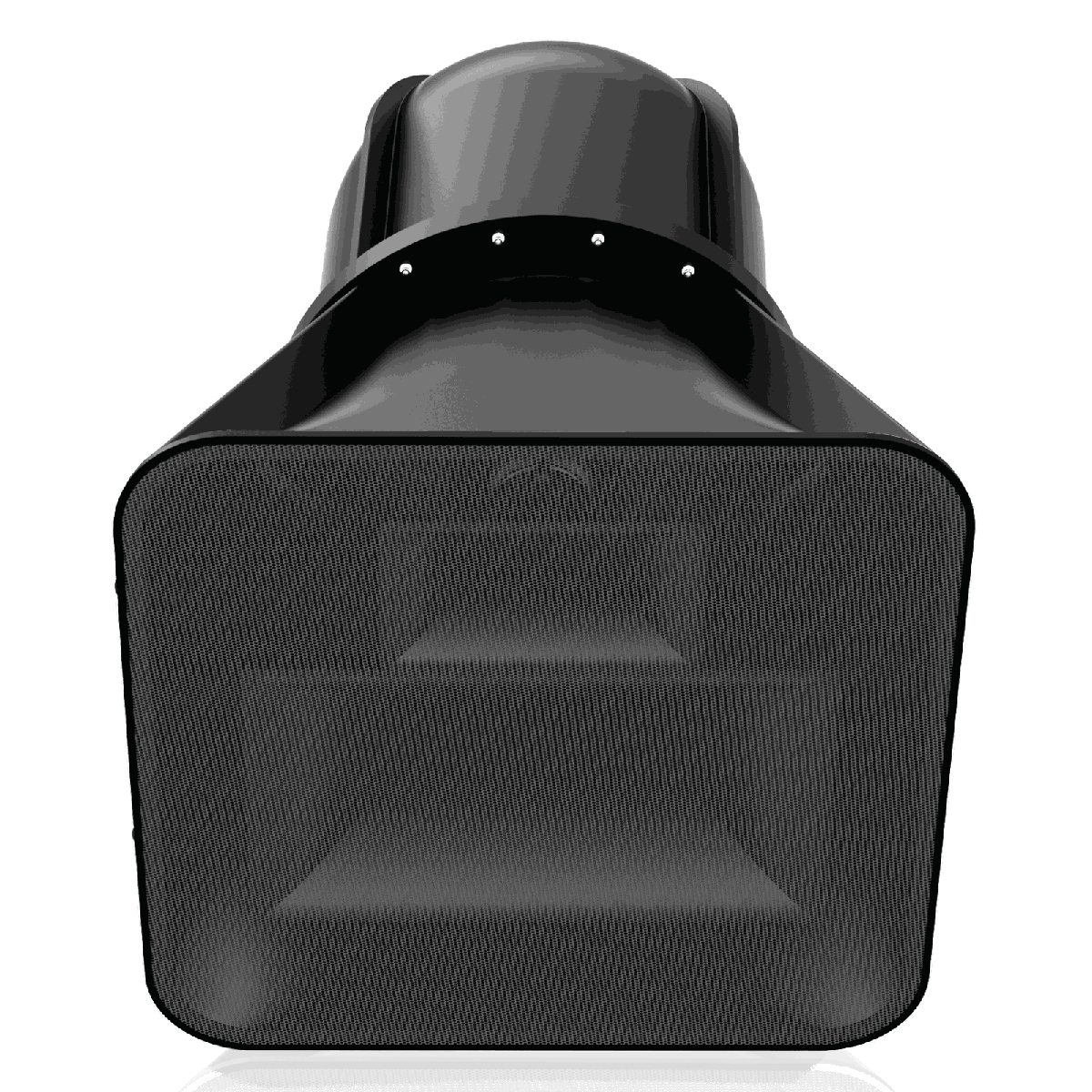

AtlasIED AH94-212 3-Way Stadium Horn System - 90 x 40
The AH94-212 covers a wide 90-degree horizontal by 40-degree vertical pattern, positioned between the narrow-throw AH42-212 and the wide AH66-212 for stands and seating bowls that are broad but not deep. It carries the same dual 12" woofer, 1.5" compression midrange, and 1" compression tweeter three-way design in a UV-resistant fiberglass enclosure rated for 750 watts RMS full-range, or bi-amped for finer control.
Three-stage corrosion-resistant steel mesh filtering protects the drivers in permanent outdoor stadium and arena installs, and forged eyebolts provide multiple suspension points for catwalk or structural mounting.
| Part Number | AH94-212 |
|---|---|
| Configuration | 3-way: dual 12" woofers, 1.5" mid compression driver, 1" HF compression driver |
| Coverage Angle | 90 x 40 degrees |
| Power Handling | 750W RMS (full-range mode); bi-ampable |
| Impedance | 8 ohms nominal |
| Enclosure | UV-resistant fiberglass |
| Weatherproofing | 3-stage corrosion-resistant steel mesh filtering |
| Mounting | Multiple forged eyebolts for suspension |
