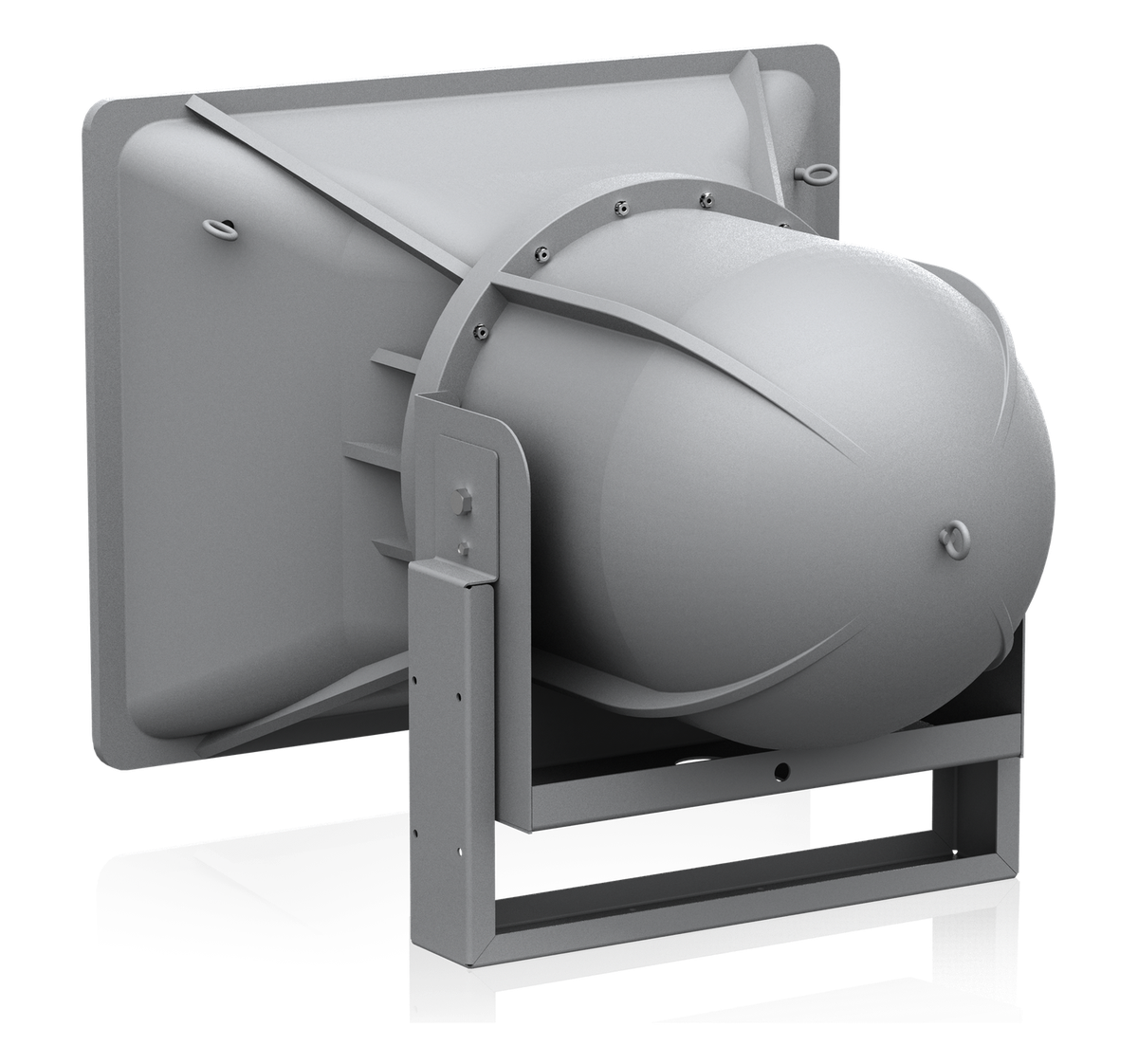

AtlasIED AH94-15-BSG 15" 2-way Stadium Horn Speaker System 90° x 40°

The AtlasIED AH94-15-BSG is a 15" 2-way stadium horn speaker system 90° x 40°. AtlasIED model AH94-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums. Published frequency response is 75Hz - 14.5kHz.

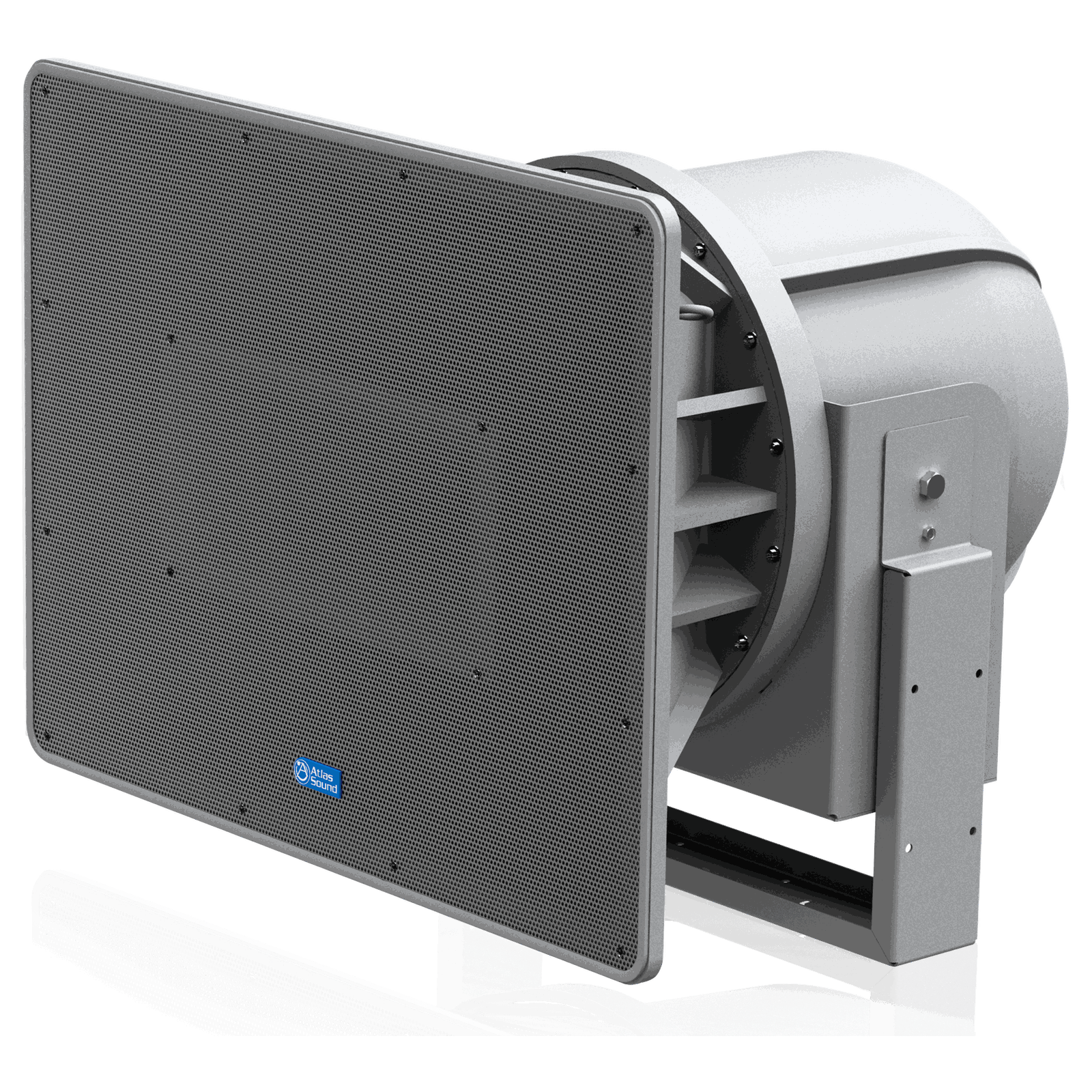

Weather resistant construction features of the AH94-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer. AtlasIED lists 250 watts power handling; 8-ohm nominal system impedance (70.7 volt operation via optional Atlas sound model AF140 transformer); constant directivity design offers controlled coverage of 90° horizontal by 40° vertical (2kHz octave band); driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 90°H x 40°V HF horn. It measures 20 1/2" high, 30" wide, and 31" deep. It carries a manufacturer warranty of 60 months from date of purchase.
