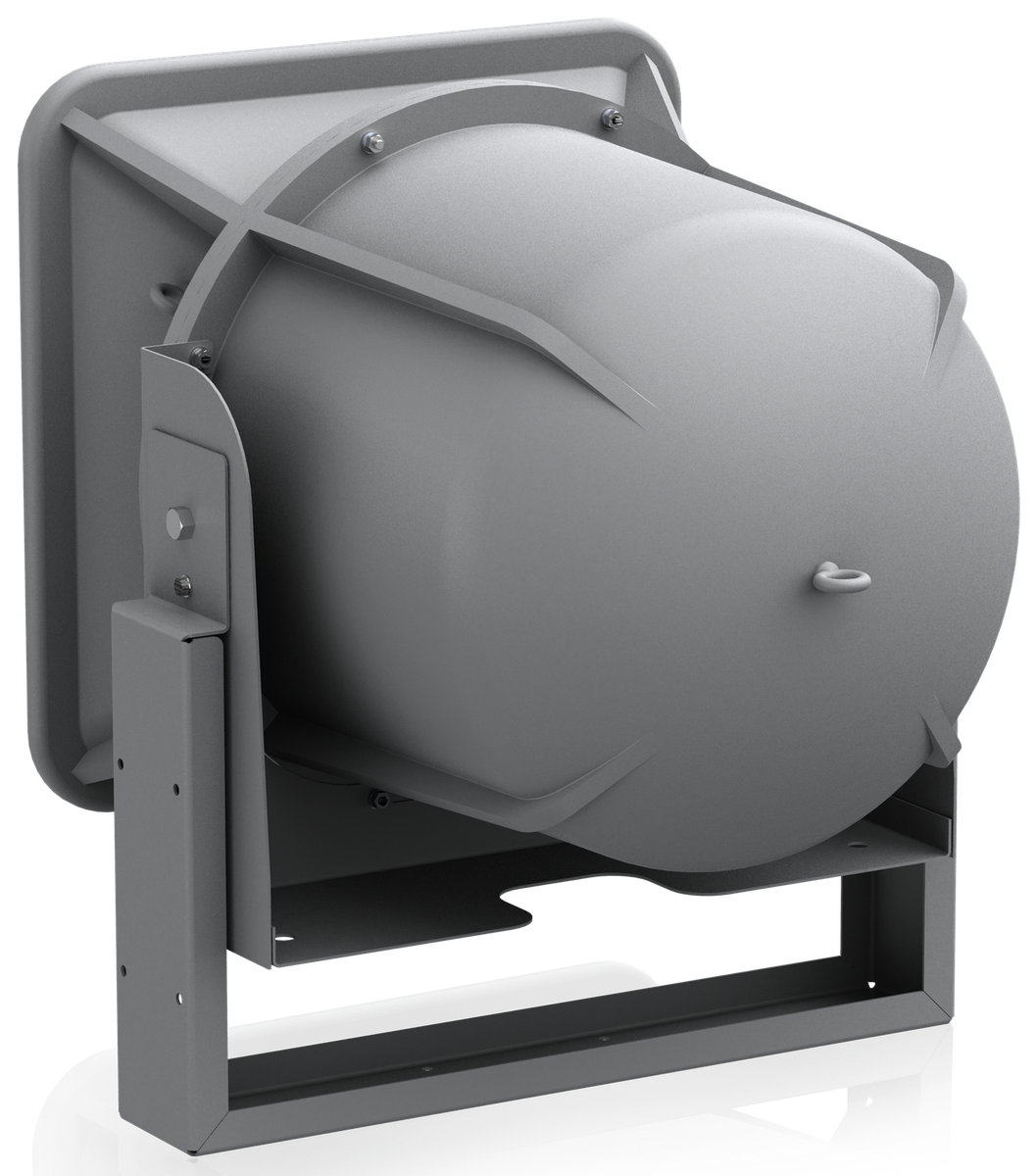

AtlasIED AH66-12T-BSG 12" 2-Way Stadium Horn Speaker System 65° x 65°

The AtlasIED AH66-12T-BSG is a 12" 2-way stadium horn speaker system 65° x 65°. AtlasIED model AH66-12T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums. Published frequency response is 80Hz - 15kHz.

A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally. AtlasIED makes the TSD-HF11 unit specifically to protect paging horns from low frequency damage. AtlasIED lists constant directivity design offers controlled coverage of 65° horizontal by 65° vertical (2kHz octave band); driver compliment includes 12" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn; efficiency rating of 102dB (1W/1m); heavy duty mounting bracket (included) allows for easy installation to most any flat surface. It measures 21.41" (54.38cm) wide. It carries a manufacturer warranty of 60 months from date of purchase.

Part NumberAH66-12T-BSG
Power Taps7.5, 15, 30, and 60 Watts & 8Ω
Sensitivity101dB SPL
Frequency Response80Hz - 15kHz
Driver Type1" HF and 12" LF
Dispersion65° x 65°
Width21.41" (54.38cm)
Weight82.00 lbs (37.19 kgs)
Warranty Period60 months from date of purchase
