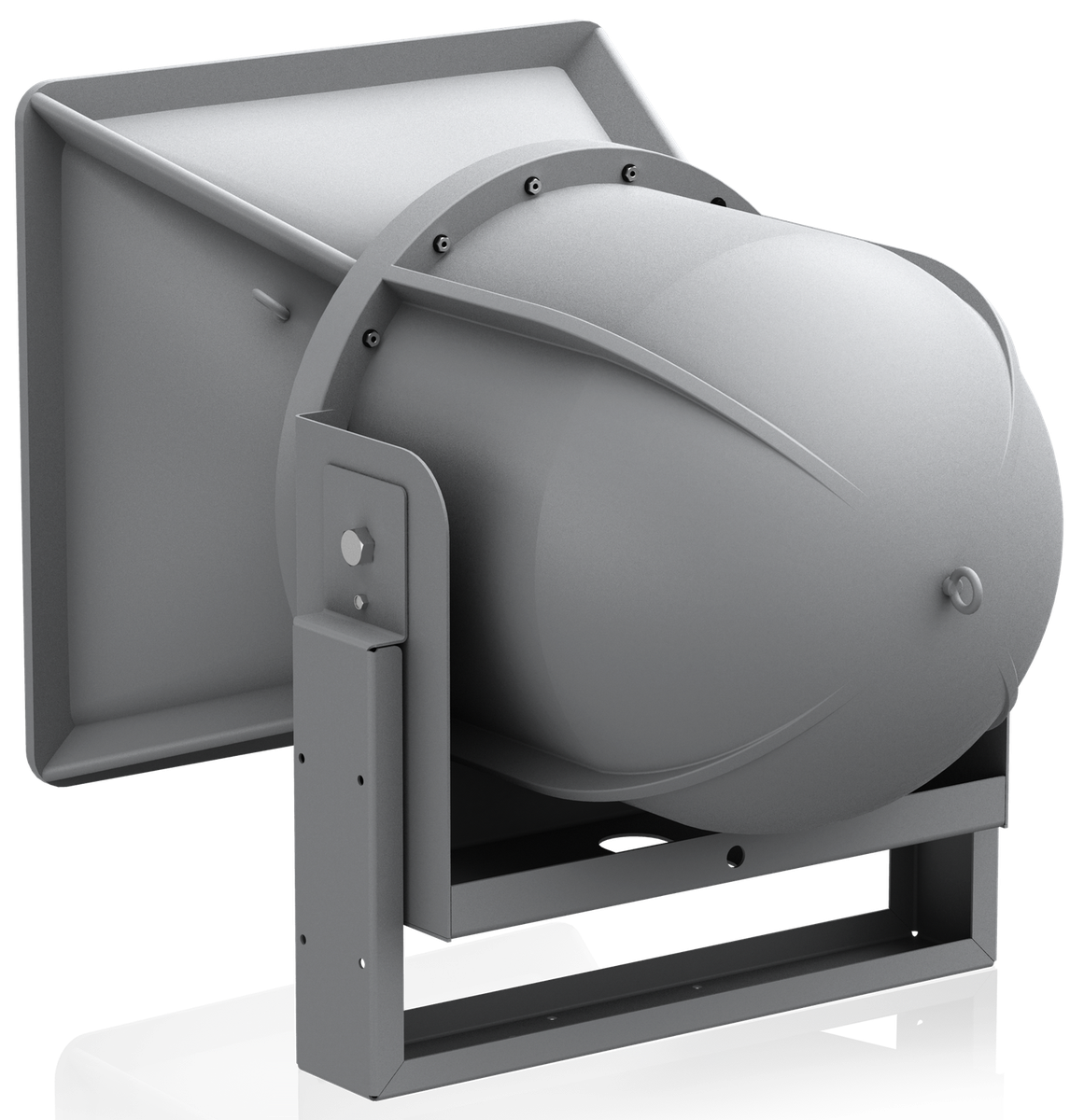

AtlasIED AH54-15-BSG 15" 2-Way Stadium Horn Speaker System 50° x 40°

The AtlasIED AH54-15-BSG is a 15" 2-way stadium horn speaker system 50° x 40°. AtlasIED model AH54-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums. Published frequency response is 75Hz - 14.5kHz.

A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally. Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage. AtlasIED lists 250 watts power handling; 8-ohm nominal system impedance (70.7 volt operation via optional Atlas sound model AF140 transformer); constant directivity design offers controlled coverage of 50° horizontal by 40° vertical (2kHz octave band); driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 50°H x 40°V HF horn. It measures 20 1/2" (52.07cm) high. It carries a manufacturer warranty of 60 months from date of purchase.
