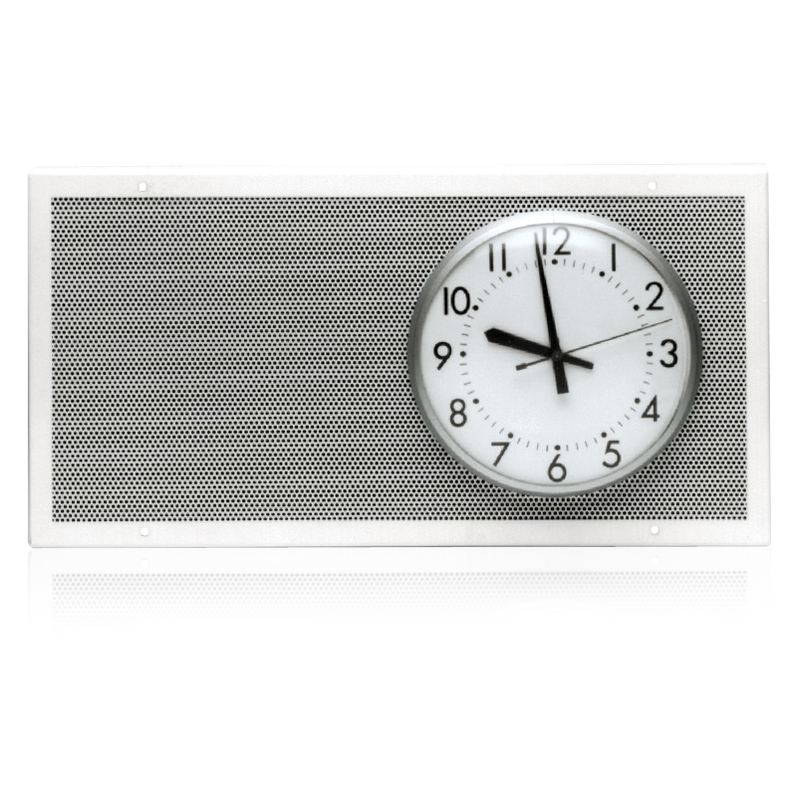

AtlasIED 840-89A Perforated Baffle for 8 inch Speaker and 8 inch or 9 inch Analog Clock (Clock By Others)
The AtlasIED 840-89A is a contemporary clock/loudspeaker baffle assembly features a CRS grille and trim ring mounted to an 18-gauge CRS panel with cutouts for mounting an 8" loudspeaker and 8" or 9" clock.
AtlasIED lists can be recessed or surface mounted using 195 Series enclosures; mounts into position using a double-action torsion spring system to provide a hardware-free appearance; panel, grille, and trim ring components are finished in a white epoxy. It measures 13 11/16" high and 26 3/4" wide. It ships at 4.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | 840-89A |
|---|---|
| Clock Hole Size | 8 3/4" |

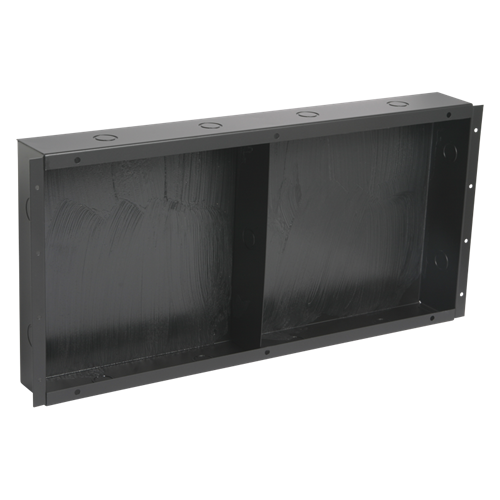

| Compatible Enclosures | 195-89, SM195-89 |
| Height | 13 11/16" (34.76625 cm) |
| Width | 26 3/4" (67.945 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Warranty Period | 60 months from date of purchase |
