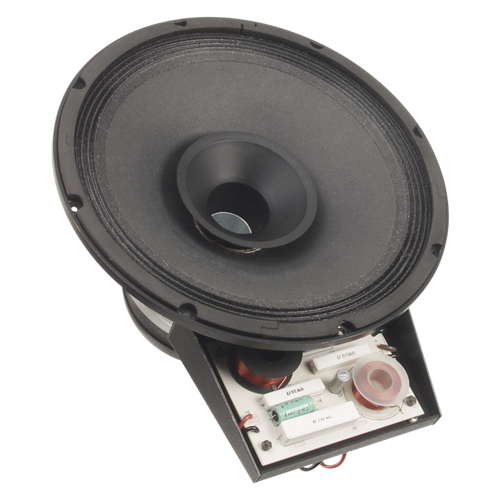

AtlasIED 12CXT60 12" Coaxial Compression Driver with 60-Watt 70V/100V Transformer

The AtlasIED 12CXT60 is a 12" coaxial compression driver with 60-watt 70V/100V transformer. Model 12CXT60 is a 250 watt speaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer. It runs a compression driver coaxial driver over 45Hz - 18kHz.

The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers. Model 12CXT60 operates within a frequency response range of 45Hz -18kHz with a sensitivity of 99dB and a dispersion angle of 90° (-6dB/2kHz octave band). AtlasIED lists 1" exit compression driver coupled to a specially designed conical wave-guide horn; 90 degree conical dispersion (2 kHz octave band); high efficiency cone woofer optimally matched to high frequency device via a specially designed crossover to insure even transition; perfectly suited for use with Atlas sound "Q" Series enclosures. It measures 8" deep. It ships at 27.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
