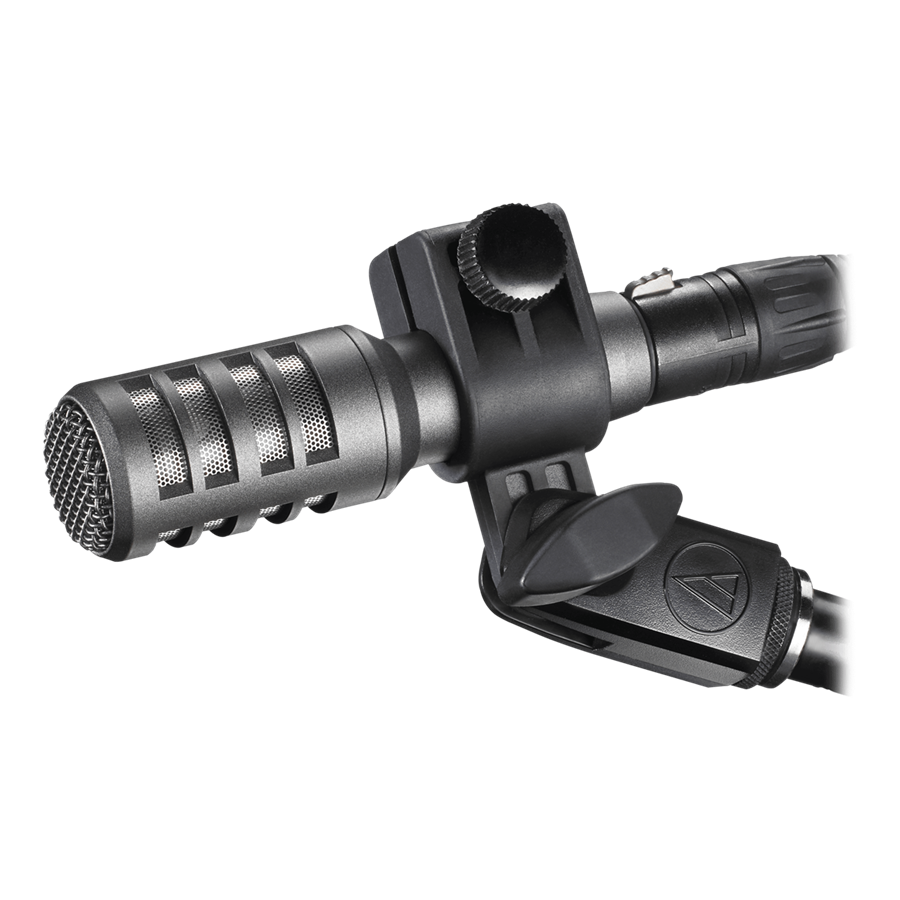

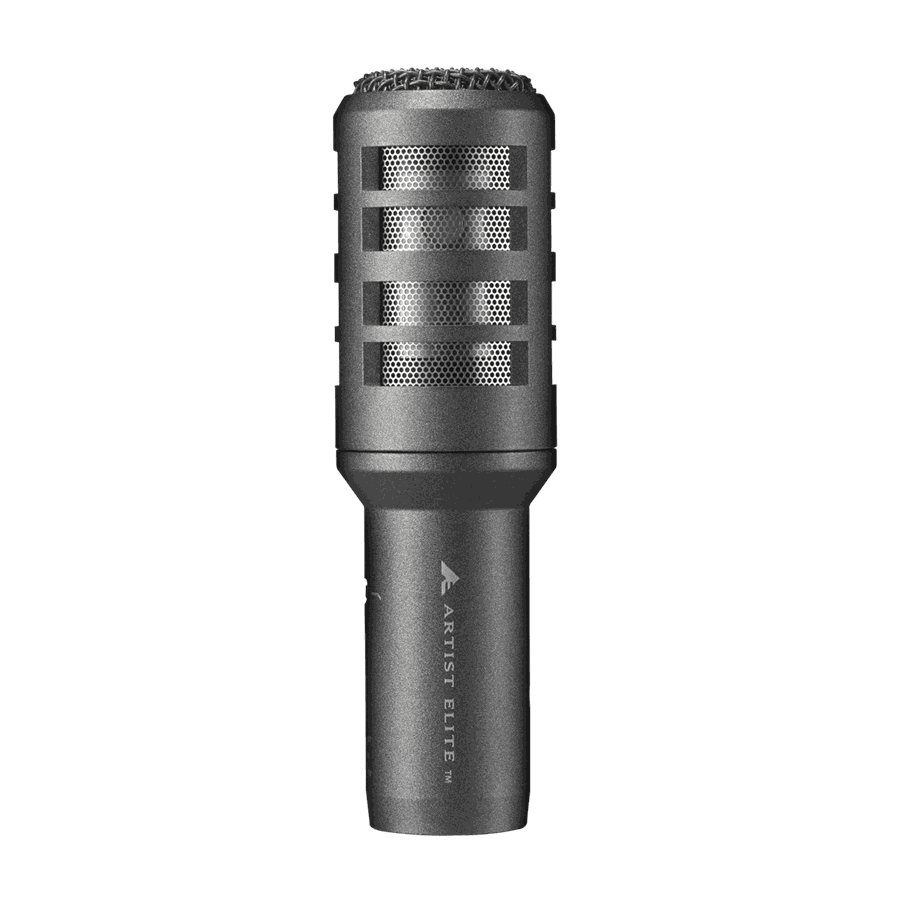

Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone

The Artist Elite AE2300 is a cardioid dynamic instrument microphone whose proprietary double-dome diaphragm gives it high-frequency and transient response well beyond a typical dynamic. That extra detail captures the bite of a guitar cabinet or the snap of a snare without the dullness dynamics are known for. Its rugged, low-profile body handles high SPLs and fits into tight spaces around a drum kit or amplifier.

A precision-machined housing and internal shock design keep handling noise low on a busy stage. The cardioid pattern rejects sound from the sides and rear, so it isolates one source in a loud backline. It connects over a standard 3-pin XLR output, needs no phantom power, and is built to take the knocks of nightly live and studio use.

  • OutputIntegral 3-pin XLRM-type
  • Polar PatternCardioid
  • Frequency Response60–20,000 Hz
  • ElementDynamic
  • Impedance250 Ω
Element
Polar Pattern
Frequency Response60–20,000 Hz
Impedance250 Ω
OutputIntegral 3-pin XLRM-type
Audio-Technica AE2300 at NAMM (Guitar World)
Audio-Technica AE2300 and ATM230 Drum & Instrument Mics
3items in the box

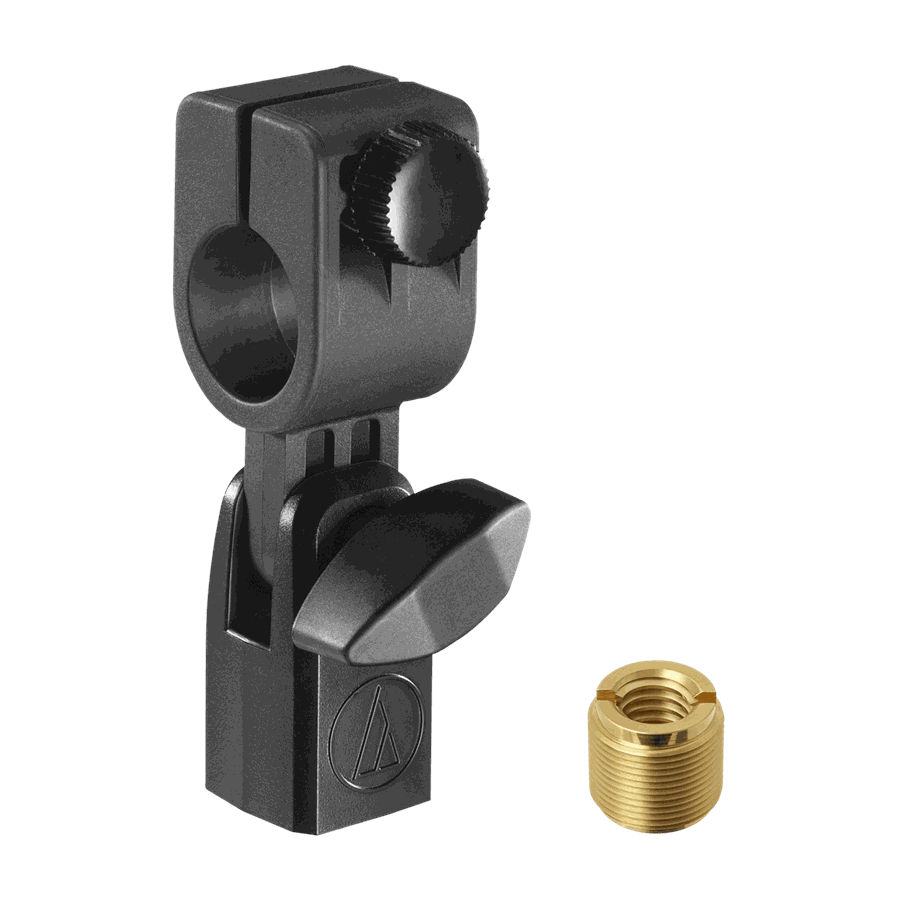

  • AT8471 isolation stand clamp for 5/8"-27 threaded stands
  • 5/8"-27 to 3/8"-16 threaded adapter

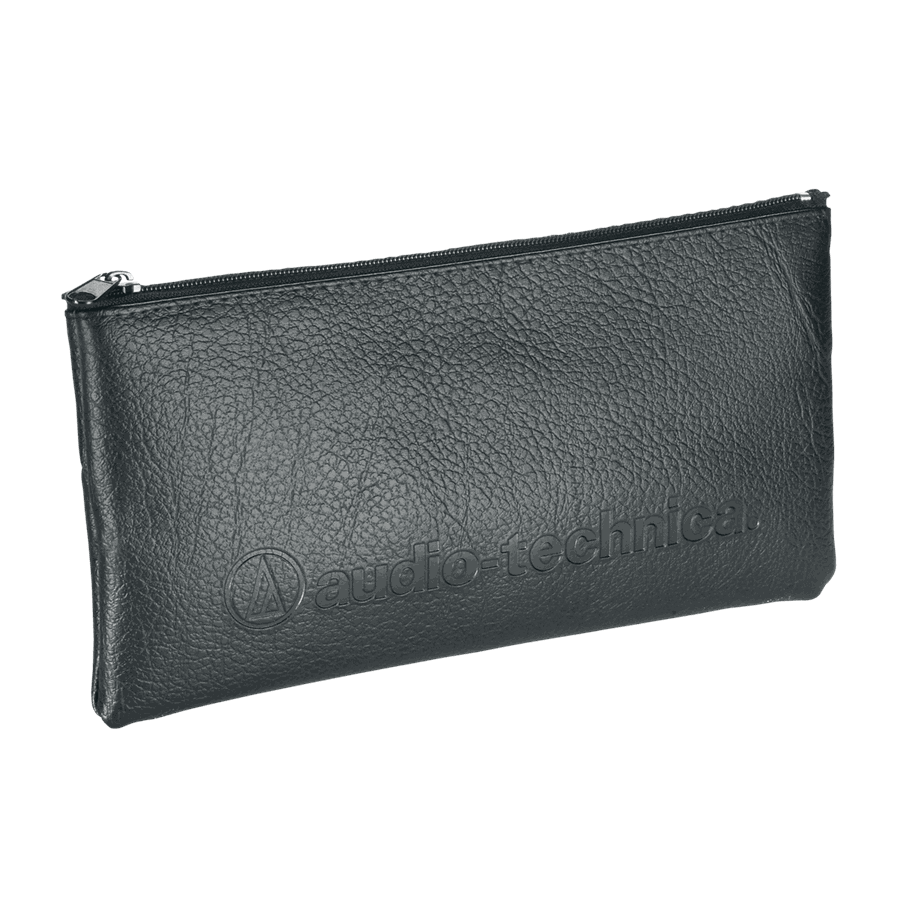

  • Soft protective pouch
