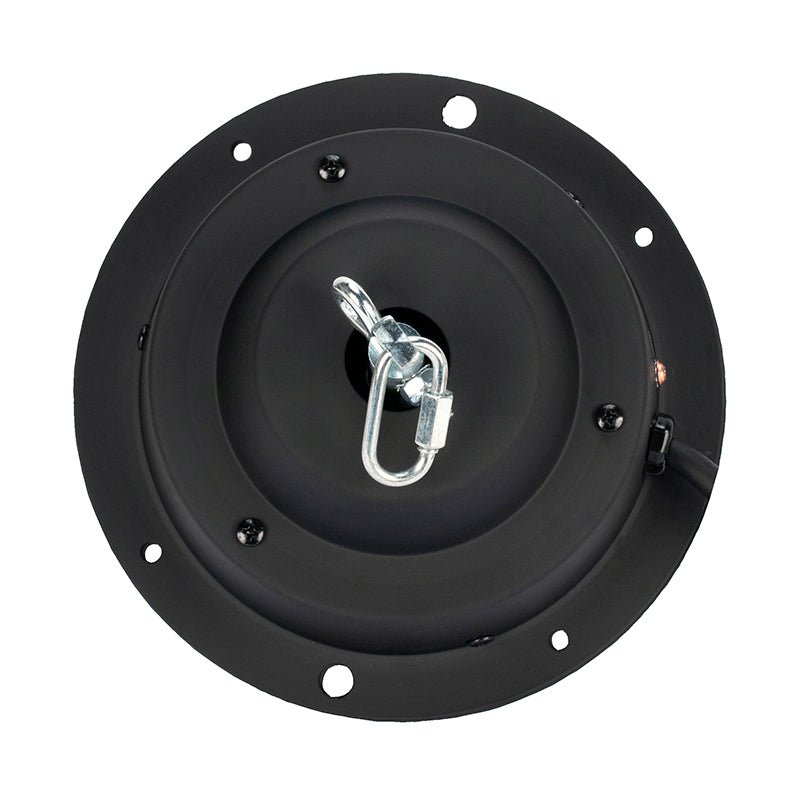

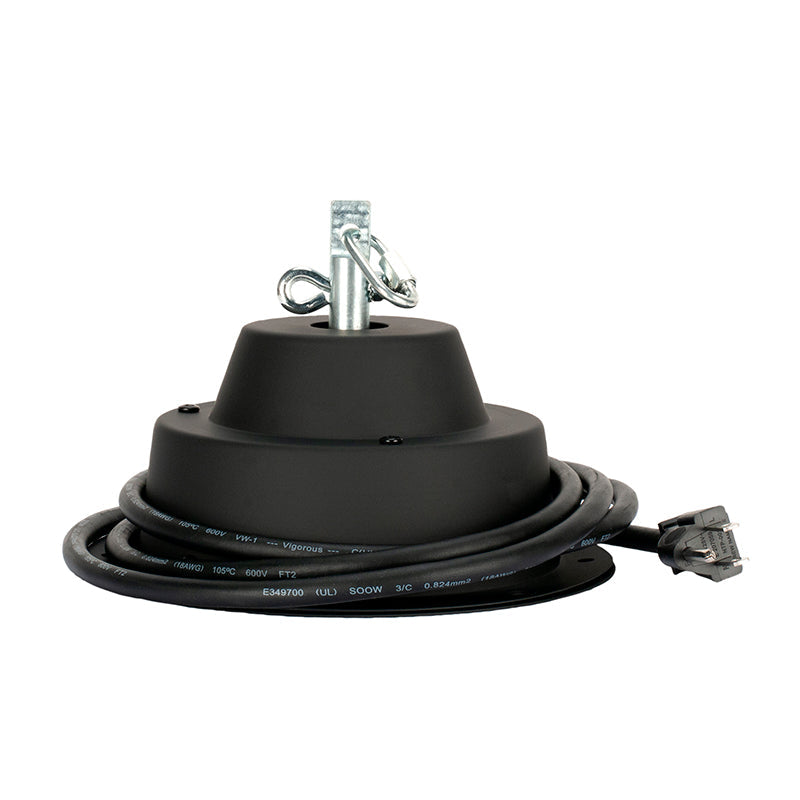

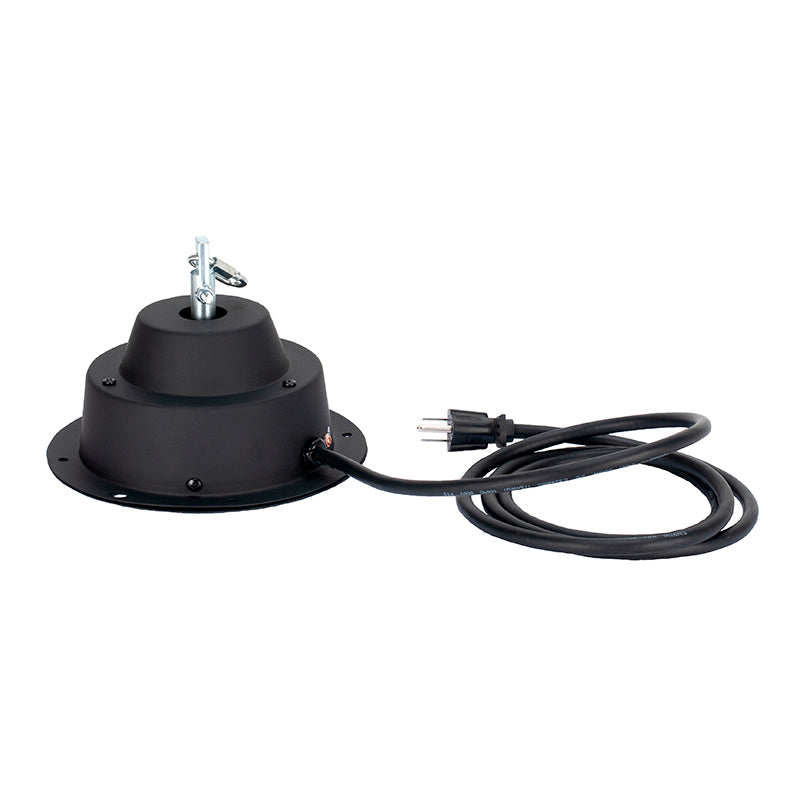

AmericanDJ M-103HD Heavy-Duty Mirror Ball Motor

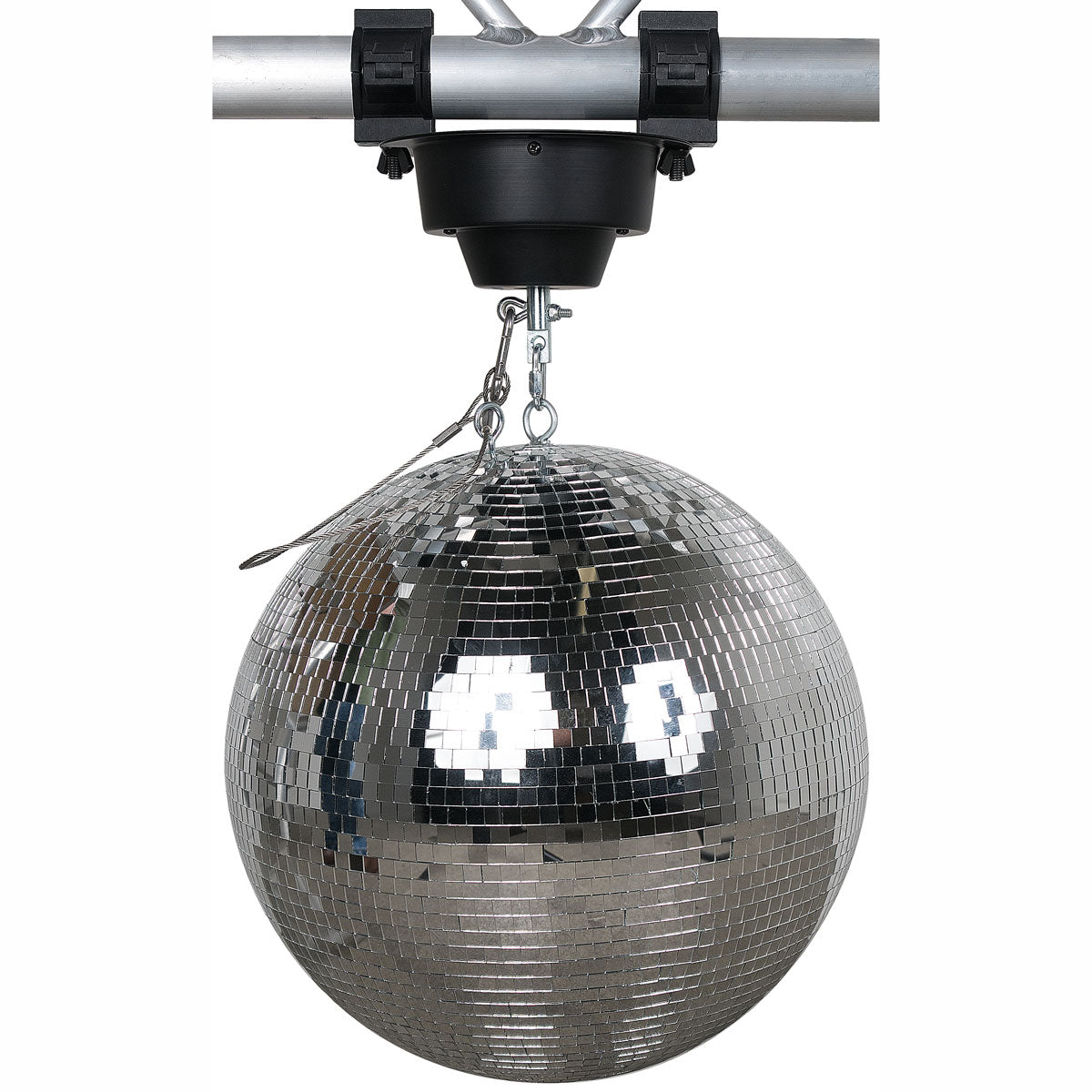

The M-103HD is the heavy-duty mirror ball motor - the one you reach for when the ball is bigger than a novelty and the hang has to be right. It carries up to 22 pounds and turns a ball as large as 20 inches at 2.5 to 3 RPM, slow enough that the scattered beams stay legible across a large room rather than sweeping past too quickly to see.
It is a plug-and-play fixture: no control line, no address, it turns whenever it has power. The motor is built for AC 120V/60Hz or 230V/50Hz, but the voltage is fixed at the factory and is not switchable, so order the version that matches your supply. ETL and CE certified, indoor use only. The mirror ball and the safety cable are sold separately, and a safety cable is not optional on a load this size.
| Manufacturer | ADJ Products (American DJ) |
|---|---|
| Part Number | M-103HD |
| Rotation Speed | 2.5-3 RPM |
| Maximum Ball Size | 20 in (50 cm) |
| Maximum Load | 22 lb (10 kg) |
| Power | AC 120V/60Hz or 230V/50Hz (non-switchable) |
| Dimensions | 5.5 x 5.5 x 3.25 in (136 x 136 x 80 mm) |
| Weight | 2.5 lb (1.055 kg) |
| Certification | ETL, CE |
| Use | Indoor only |
