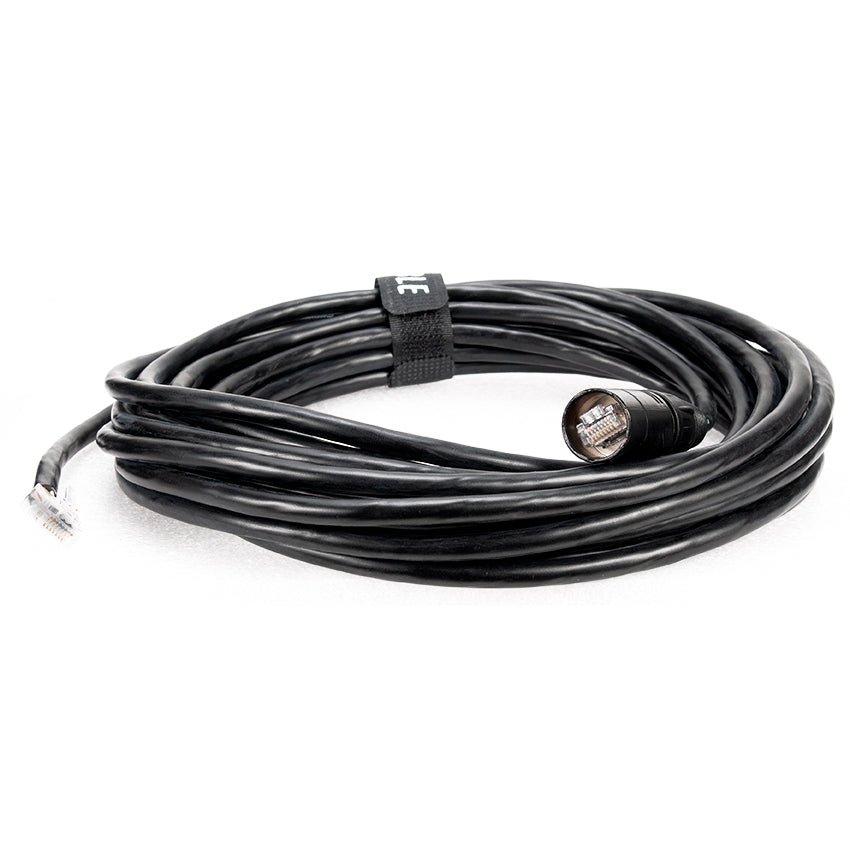

AmericanDJ CAT6PRO25FC 25 ft CAT6 Network Cable
This is ADJ's 25-foot CAT6 Pro network cable, the first-cable length in their data run. It is an 8-conductor twisted-pair build to the CAT6 T-568B standard, rated to 250 MHz, with a plastic separator running between the pairs to hold them apart and keep crosstalk down where a lighting network shares a truss with power.
The conductors are 24 AWG inside a 6.5 mm black flexible PVC jacket, so it coils for transport instead of taking a permanent set like a solid-core install cable. A single run tops out at 328 feet (100 m), the standard Ethernet limit - past that you need a switch or a repeater in the middle. CE certified.
| Manufacturer | ADJ Products (American DJ) |
|---|---|
| Part Number | CAT6PRO25FC |
| Length | 25 ft |
| Standard | CAT6, T-568B, 8-conductor twisted pair |
| Bandwidth | Up to 250 MHz |
| Maximum Run | 328 ft (100 m) |
| Conductor Gauge | 24 AWG |
| Outer Diameter | 6.5 mm |
| Jacket | Black flexible PVC |
| Certification | CE |
| UPC | 819730016720 |
