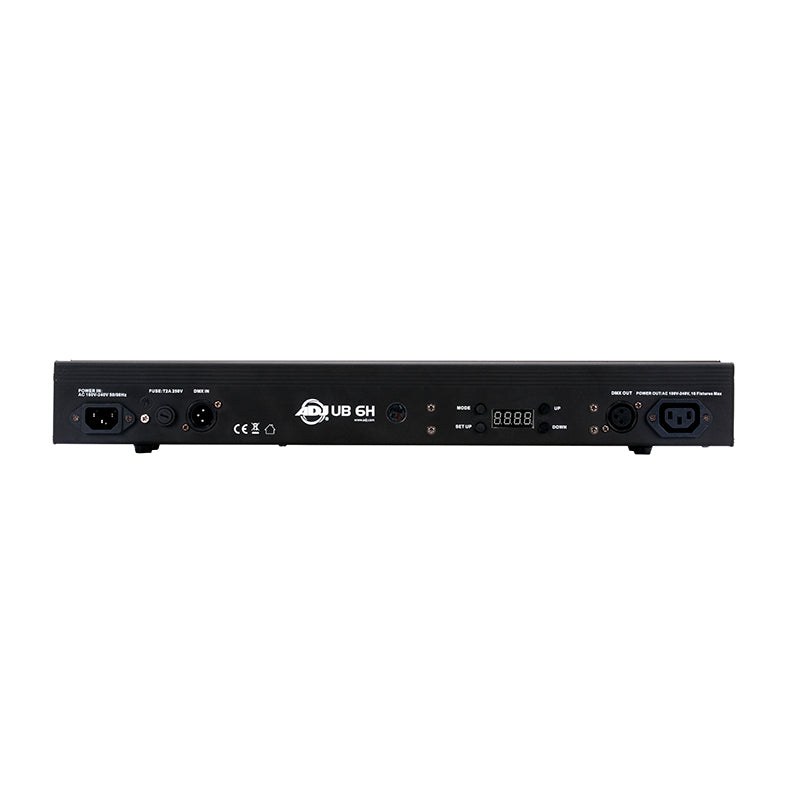

American DJ UB 6H LED Bar

The American DJ UB 6H is an LED bar from American DJ. Published beam angle: 40 degrees.

4 Dmx channel modes covers 6, 10, 12 or 18 channels. Power draw is quoted at 33W @ 120V. Listed dimensions (lxwxh): 22.5" x 2.5" x 3.75". Ordering code UB 6H.

4 DMX Channel Modes	6, 10, 12 or 18 channels
6 Operational Modes	Auto Run, Program Mode
Beam Angle	40 degrees
Electronic Dimming	0-100%
Power Draw	33W @ 120V
Linkable	DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 17 UB 6H fixtures max., @ 120V can be power linked)
Multi-voltage operation	AC 100V-240V 50/60Hz
Dimensions (LxWxH)	22.5" x 2.5" x 3.75"
