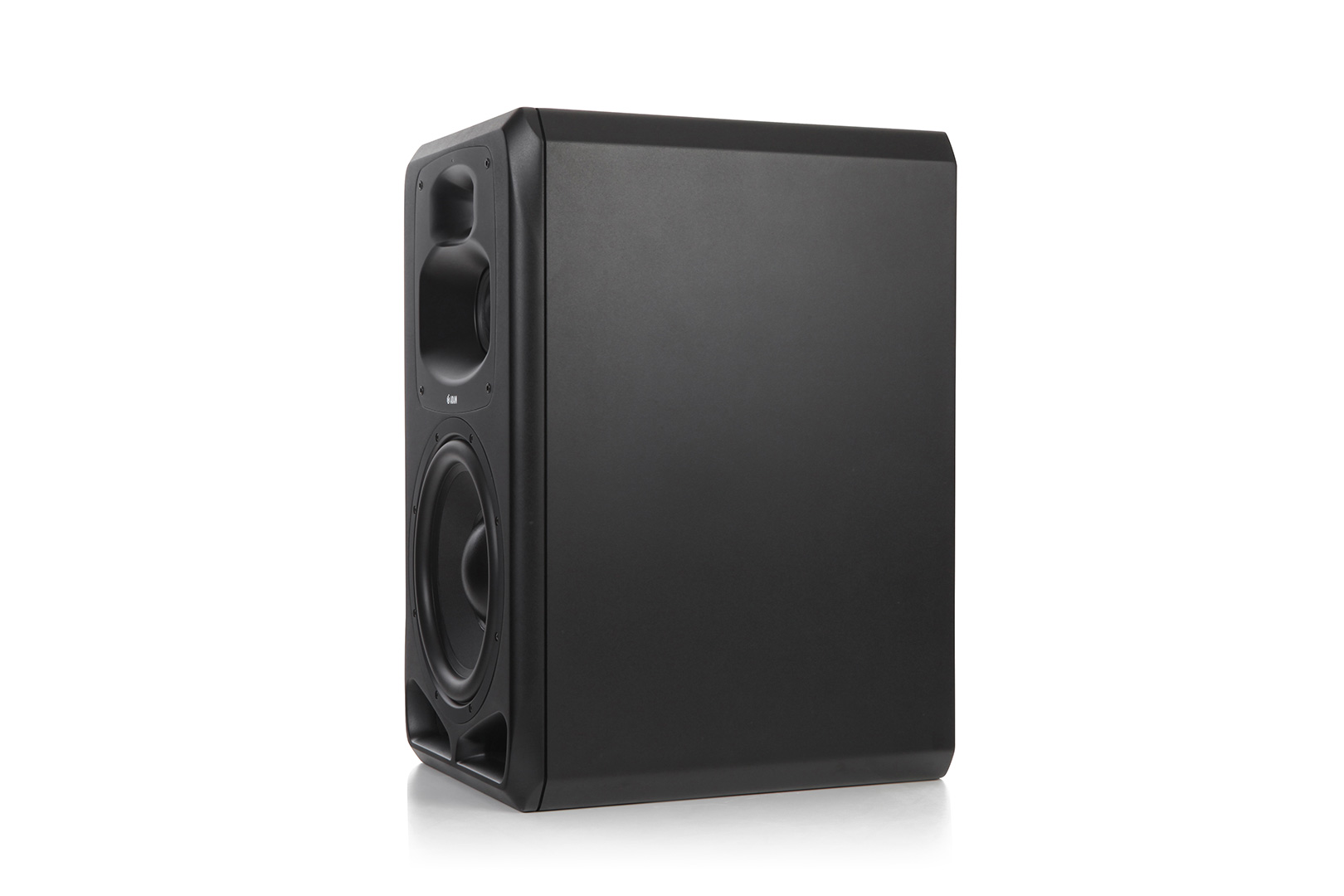

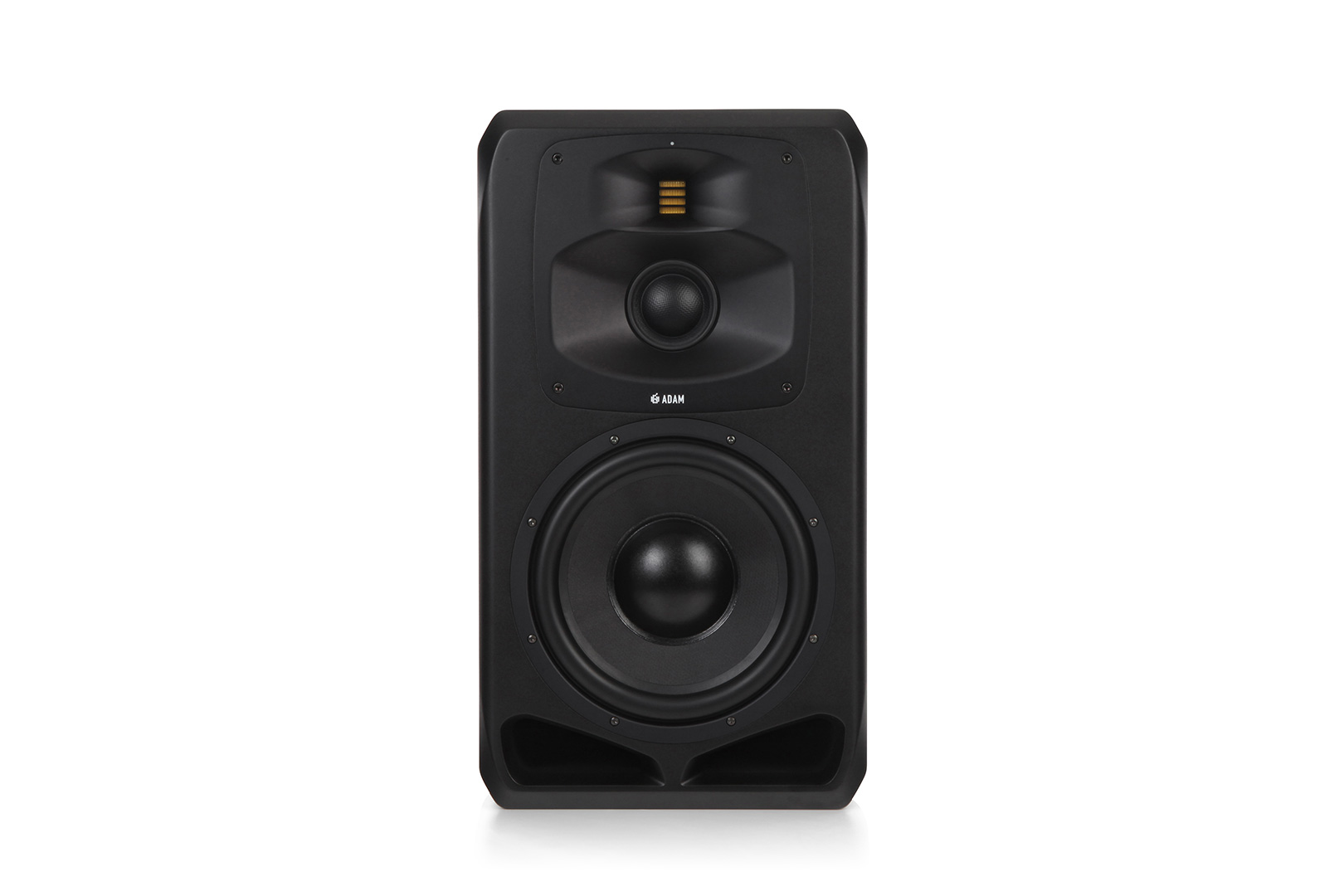

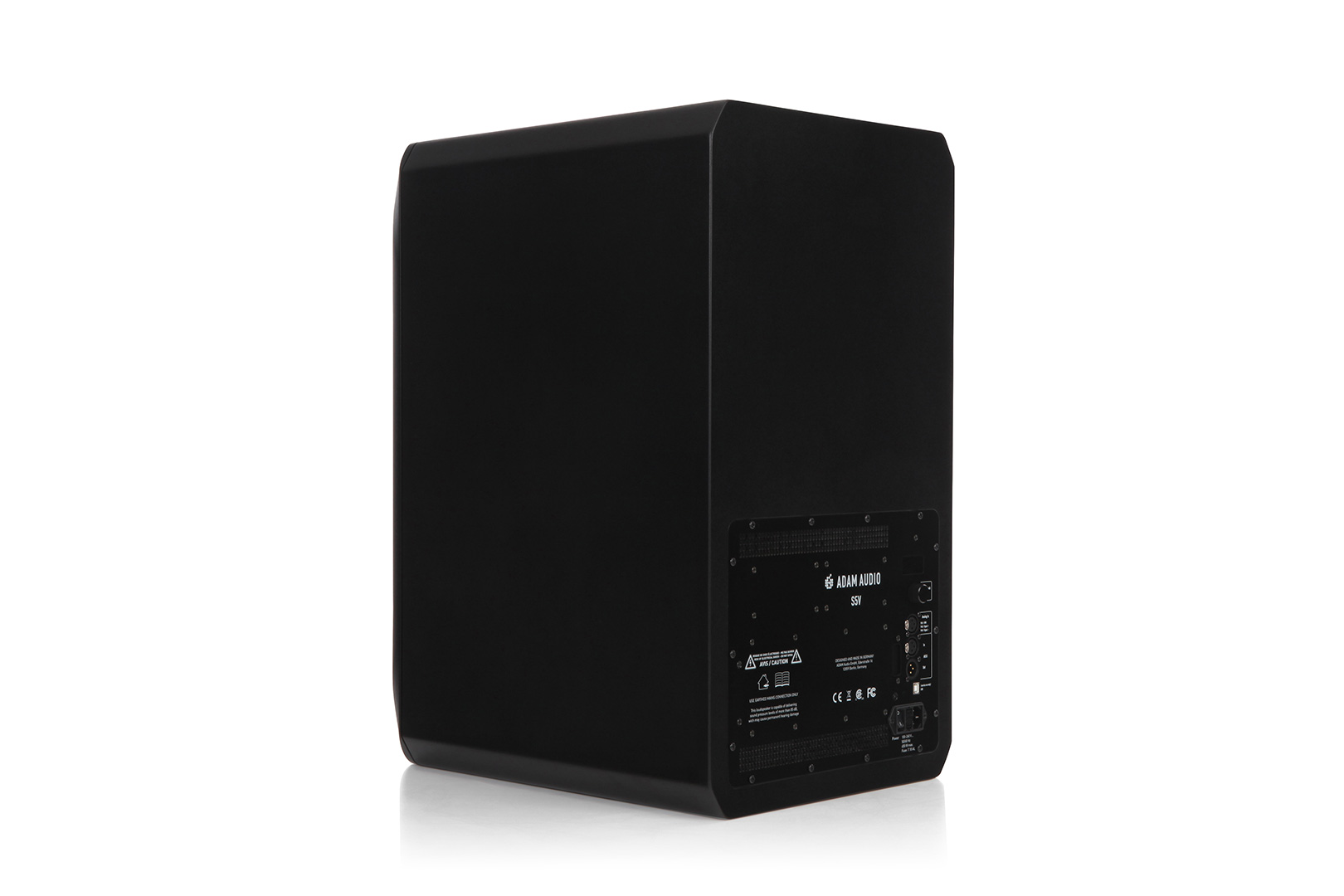

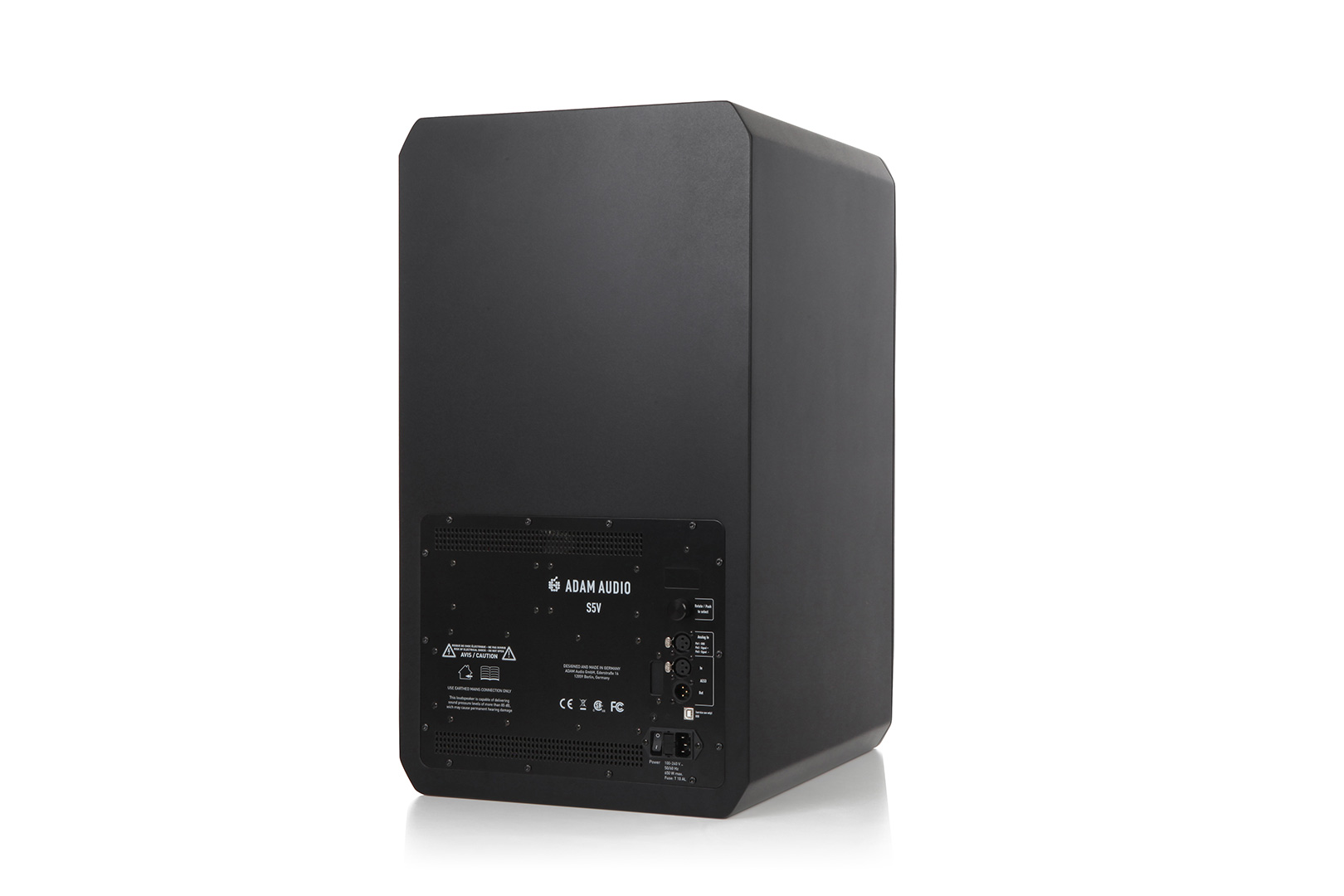

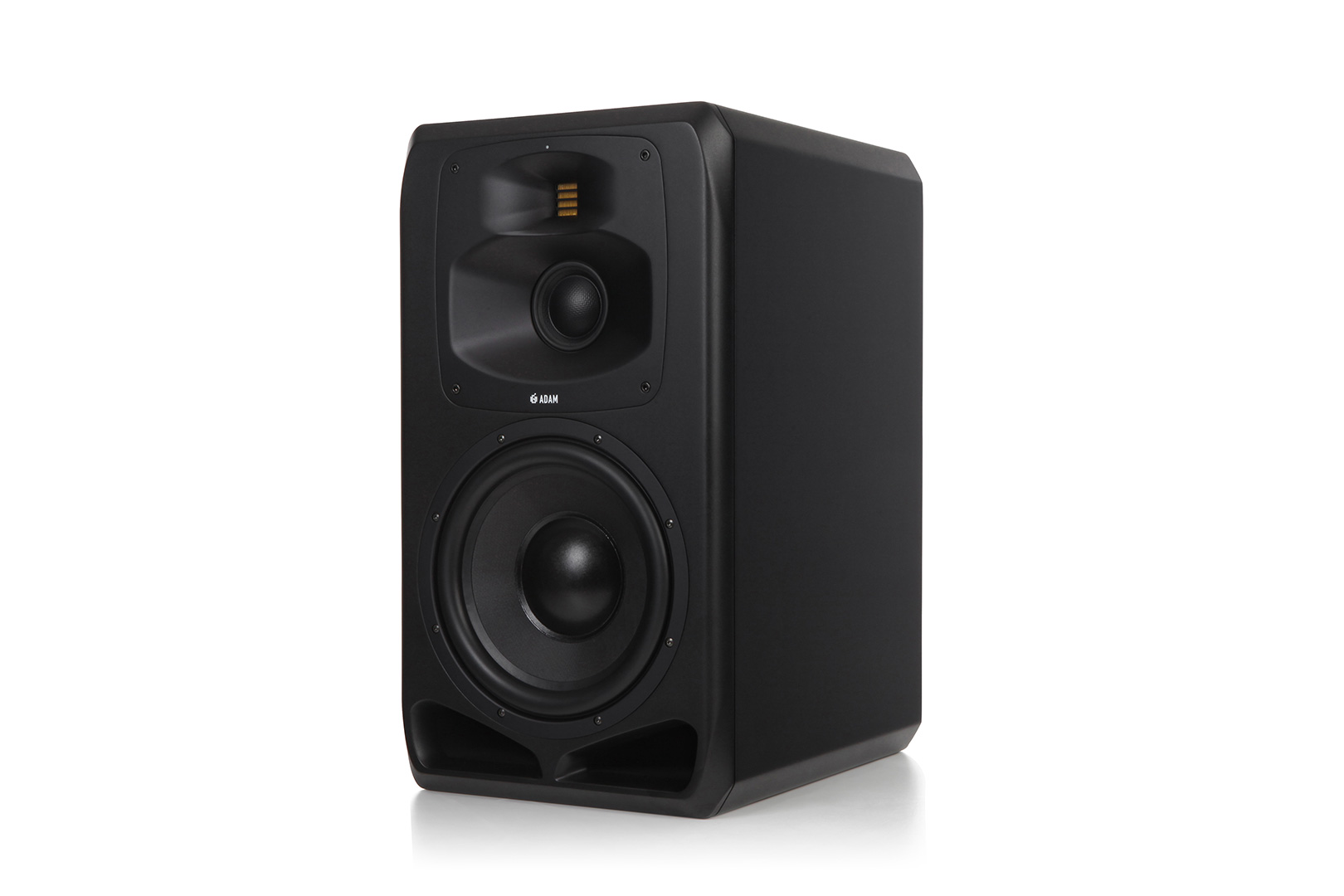

ADAM Audio S5V Three-Way Active Main Monitor
The S5V is a vertical main monitor built around a 12-inch HexaCone woofer with a 3-inch voice coil, a 4-inch carbon dome-cone midrange in an MPS waveguide, and the hand-built S-ART tweeter. Response runs from 25 Hz and a pair holds 128 dB at a meter, with THD at or below 0.3 percent above 100 Hz.
Amplification is 1100 W RMS, 700 W of it on the woofer. Inputs are balanced XLR at +24 dBu and AES3 digital, with the S Series expansion options for surround and immersive rooms. At 114.5 lb this is a soffit or heavy-stand monitor, not a desktop.
| Type | Three-way active main monitor |
|---|---|
| Woofer | 12 inch HexaCone, 3 inch voice coil |
| Midrange | 4 inch carbon-composite dome-cone hybrid with MPS waveguide |
| Tweeter | Handmade S-ART with HPS waveguide |
| Frequency Response | 25 Hz - 50 kHz (-20 dB) |
| Crossovers | 250 Hz and 3 kHz |
| Total RMS Amp Power | 1100 W |
| Max SPL per pair at 1 m | 128 dB |
| Weight | 114.5 lb (52 kg) |
