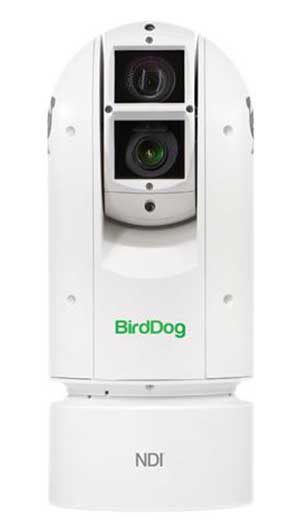

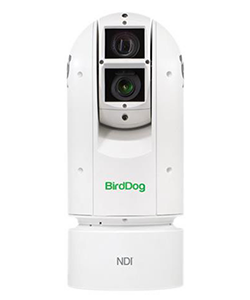

BirdDog BDA300 Weatherproof PTZ Camera

With an IP67 rating the A300 is perfect for fixed installations in outdoor and indoor environments. The nitrogen filled housing ensures no fog, and the external housing has been treated for corrosion resistance against salt spray. With -40°C to +60°C operating temperature rating A300 has been designed to withstand the most extreme elements on earth.

Never worry about missing the shot. With A300’s nitrogen filled housing there is no chance of the lens fogging up.

Category 4 Hurricane? Bring it. Designed for all weather conditions, A300 boasts an incredible Wind Load Durability rating equal to 60m/s. As long as you have it secured properly A300 will just keep on keeping on.

Built in infra red laser with a range of up to 500 metres helps with focusing in low light conditions.

360 degree continuous rotation, 255 preset positions, Zero Deviation Positioning technology, and a preset movement speed of 150 degrees per second mean you will never miss a shot again.

New GEN 2 Version Features:
The A300 now has the same color tools as the P200 models:

Full Colour Matrix - 64 positions of Hue (colour) and Saturation (brightness) for Red, Green, Blue, Cyan, Magenta, Yellow.

72 additional Gamma Positions

The A300 now supports Cam Control for Remote Shading which allows a full one cable solution for Video, PTZ Control, Power (using PoE injector), and Remote Shading.

Design tweaks not only look great but serve a purpose to assist in protection against the elements such as extruded lips around the lens. There is also an improved IR blaster design to allow more light to be sent from the camera when using it in low-light situations.

Specifications

CAMERA
VIDEO OUTPUT: NDI/SDI
OPTICAL ZOOM: 30x
IMAGE SENSOR: 1 / 2.8 inch CMOS 2.13MP
LENS: 4.3-129mm
DIGITAL ZOOM: 12x
HORIZONTAL ANGLE OF VIEW: 63.7° (W) – 2.3° (T)
APERTURE: F1.6 (W) – F4.7 (T)
MIN. ILLUMINATION: Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
SHUTTER SPEED: 1/1 – 1/10000s
FOCUS: Auto, Push, Manual
WHITE BALANCE: Auto, Indoor, Outdoor, Manual, OPW, ATW
EXPOSURE: Auto, Manual, Shutter/Iris Priority
BACKLIGHT COMPENSATION: YES

MECHANICAL
PAN MOVEMENT: Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.01°〜80°/S)
TILT MOVEMENT: Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1°〜90°/S)
PRESET POSITIONS: 255 (Speed adjustable: Up to 150°/s)
ENVIRONMENTAL: Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing
OPERATING TEMPERATURE: -40 – +60 (°C)
OPERATING HUMIDITY: ≤80%
ILLUMINATION: IR Laser, illumination up to 500m

VIDEO INTERFACE
VIDEO OUTPUT: NDI/SDI
VIDEO FORMATS:
1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
AUDIO I/O:
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)

CONTROL INTERFACE
IP PTZ CONTROL: NDI Control (auto configuring)
SERIAL PTZ CONTROL: RS422/RS485 Connector
SERIAL CONTROL PROTOCOL: VISCA / Pelco D

POWER & DIMENSIONS
POWER INPUT: AC 24v, PoE 80W Ready (BirdDog PoE 80W Injector needed, optional)
POWER CONSUMPTION: Min. 24W, Max. 80w (-40°C, IR Laser ON)
DIMENSIONS: 180x180x423mm
WEIGHT: 10.2kg

NETWORK
VIDEO COMPRESSION: Full NDI – i-frame high quality low latency NDI for production
NETWORK PROTOCOL: NDI – Discovery, configuration and control
WEB CONTROL INTERFACE: Full control via Web/Mobile UI including Scene presets

Click here to view the BDA300 user manual.
