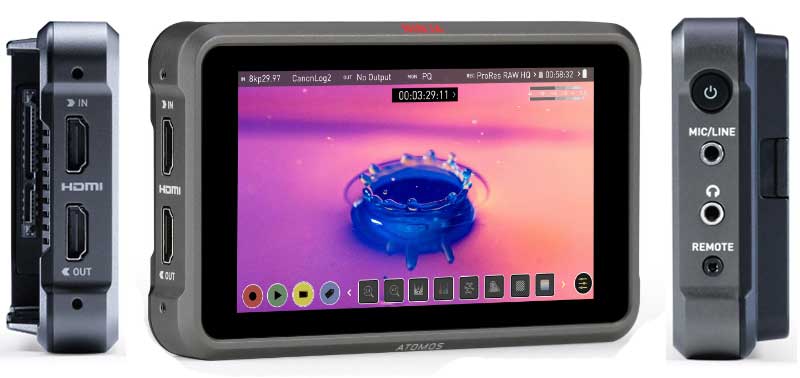

Atomos Ninja V+
5" 8K RAW HDR Monitor Recorder

Atomos Ninja V+ 5" HDR Monitor Recorder

The Ninja V+ is the next stage in the evolution of the multi-award winning Atomos Ninja, delivering up to 8Kp30 and 4Kp120 continuous recording in Apple ProRes RAW while inheriting HDR, 4Kp60 RAW and video as well as HDp120 slow motion from it's little brother, Ninja V.

Apple ProRes RAW - supporting 16bit RAW outputs from camera via HDMI and optionally via SDI
Apple ProRes - An industry standard edit-ready codec from Apple with scalable levels of compression.
Avid DNx - An industry standard edit-ready codec for Avid editors with scalable levels of compression.
H.265 (HEVC) - The highly efficient compressed codec allows you to create high-quality files with a low bit rate and small file size for sharing. You can also create 4K HDR 10-bit deliverables and have the option to "bake in" LUTs to achieve the final pixel LOOK without the need to grade the footage.
Includes:
- EVA Carry case
- 5" Protective Monitor sleeve
- Battery eliminator
- International DC power supply
- 1x MasterCaddy II

$799.00

FREE UPS SHIPPING

Atomos Ninja V+
5" 8K RAW HDR monitor recorder

Apple ProRes RAW - supporting 16bit RAW outputs from camera via HDMI and optionally via SDI
Apple ProRes - An industry standard edit-ready codec from Apple with scalable levels of compression.
Avid DNx - An industry standard edit-ready codec for Avid editors with scalable levels of compression.
H.265 (HEVC) - The highly efficient compressed codec allows you to create high-quality files with a low bit rate and small file size for sharing. You can also create 4K HDR 10-bit deliverables and have the option to "bake in" LUTs to achieve the final pixel LOOK without the need to grade the footage.
Includes:
- EVA Carry case
- 5" Protective Monitor sleeve
- Battery eliminator
- International DC power supply
- 1x MasterCaddy II

$799.00 FREE UPS SHIPPING

Description

The world’s first 8K RAW HDR monitor recorder
The Ninja V+ is the next stage in the evolution of the multi-award winning Atomos Ninja, delivering up to 8Kp30 and 4Kp120 continuous recording in Apple ProRes RAW while inheriting HDR, 4Kp60 RAW and video as well as HDp120 slow motion from it’s little brother, Ninja V.

With the ability to capture in 8Kp30 and 4Kp120, the Ninja V+ allows you to stay ahead of the game and ensure that you have the flexibility to grow your system as projects demand. Future proofed quality and formats allow you to stay compatible with newly released and existing cameras, in a world where new cameras are released frequently and technology is advancing at an incredible pace.

The Ninja V+ takes advantage of the new Atomos Silicon chip, the AtomIC3, AtomOS 10 and the incredible efficiency of ProRes RAW to deliver these increased resolutions and frame rates. The new formats also integrate seamlessly into the timeline of your existing ProRes RAW or ProRes projects, without huge storage or processing overheads.

Specs

Physical Specifications
Dimensions (W x H x D mm): 151 x 91.5 x 31 mm
Weight: 360 g / 12.7 oz
Mount points: 1 x Anti rotation 1/4" / 3/8 top and bottom

Environmental
Ambient operating temperature: Up to 40 Degrees Celsius
Construction and Control
Body: Aluminium with ABS plastic
Cooling: Actively controlled fan and Heat Sink
Tally light: Rear and front
Multi-function button: Power / lock Screen
AtomXpansion slot: Yes

Power
Input voltage: 6.2V to 16.8V
Operating power: 5.8-7.2v
Compatible batteries: NPF L series
Built in battery: No
Battery Run time (Record): 5200mAh - up to 2hrs (monitor & record 4K 60p)
Continuous power: Via Optional AtomX SYNC Module
DC in connector: Via DC Jack on Battery eliminator
Dtap: Via Battery Eliminator and optional DTap to DC cable

Display
Touchscreen: SuperAtom IPS panel (capacitive touch)
Size: 5.2"
Resolution: 1920 x 1080
PPI: 427
Bit depth: 10Bit (8+2 FRC)
Backlight Type: Edge lit
Brightness (cdm2 / nits): 1000 +/- 10%
Aspect ratio: 16 : 9
De-interlace mode: I > P and PSF > P
Color Gamut: Rec.709
Calibration support: Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)

Color Pipeline
Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM Log, Lecia L Log
Gamut: Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display: .Cube Format
3D LUT Down Stream: Loop out
3DLUT 50/50: Yes
Monitoring Modes: Native / HLG / PQ / 3D LUT
HDR output Conversion: Log / HDR to HLG / PQ / Dolby Vision

Video Input
HDMI: 1 x HDMI (2.0) 4k p60
HDMI RAW: Apples ProRes RAW up to 8k
SDI: Optional via AtomX SDI module
SDI RAW: Optional Activation Key required
Bit Depth: 8/10Bit Video / RAW up to 12Bit
Video Chroma Subsampling: 420 and 422
HDCP copy protection: Not supported

Metadata
HDMI: RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut
SDI: Optional via AtomX SDI module

Video Output
HDMIL: 1 x HDMI (2.0) 4k p60
SDI loop out: Optional Via AtomX SDI module
SDI Play out: Optional Via AtomX SDI module
Video Chroma Subsampling: 422
Bit Depth: 10Bit Video

Web Streaming
USB UVC: Optional Via Connect 4k

Video Signal Conversion
HDMI to SDI: Optional Via AtomX SDI module
SDI to HDMI: Optional Via AtomX SDI module

Audio In/Out
Audio Quality: 24/48kHz
Audio Codec: PCM
HDMI: 8ch 24Bit, input dependent
SDI: 12ch 24Bit, input dependent
Analogue Audio in: 3.5mm 2ch.
Analogue Audio Out: 3.5mm 2ch.
Headphone out: 3.5mm 2ch.

Timecode / Sync
Embedded: HDMI
Time of day: Yes, Time and Date
LTC: via 3.5mm audio Jack input (Requires post processing)
Wireless SYNC: Via Optional AtomX SYNC Module

Resolution and Frame Rates (Record, Monitor & Playback)
8k: RAW Only up to 30p via HDMI
6k: RAW Only up to 30p via HDMI
5k: RAW Only up to 30p via HDMI
4k DCI: 23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras
4k UHD: 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080: Optional via AtomX SDI module
Anamorphic: 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive: 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF: converted to P and looped out PsF
FHD 1920 x 1080 Interlaced: 50/59.94/60i
1280 x 720p: 50/59.94/60p

Recording CODEC
Apple ProRes RAW: ProRes RAW, HQ (Free activation key via visit my.Atomos.com)
Apple ProRes: LT, 422, 422HQ
Avid DNxHD: DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)
Avid DNxHR: LB, SQ, HQ, HQX. (Free activation key via visit my.Atomos.com)
H.265: LQ,MQ,HQ in 8/10Bit, 422 and 420 Free activation key via visit my.Atomos.com)

Playback
Playlist: Yes, Create customer play lists from full or sub clips
Loop: Yes, with user customisable in / out markers
Apple ProRes Raw: Yes, recorded clips
Apple ProRes: Yes, with Linear PCM audio
Avid DNx: Yes, with Linear PCM audio
H.265: Yes, recorded clips

Recording functions
Pre-roll record: Yes (HD 8s, 4K 2s) - Not available in RAW
Timelapse: Yes

Supported media
Master Caddy I: Not compatible
SSDmini: Native Size and Fit
CFast II: Via Supported cards via optional SSDmini CFAST II Adaptor
File Naming: Unit Name - Scene/Shot/Take File System: ExFAT

On screen tools
Waveform: Yes, 3 size / Position
RGB parade: Yes, 3 size / Position
Vector scope: Yes, 2 size / Position
1 x Zoom:Yes. 1:1 Pixel mapping for 4k
2 x Zoom:Yes
Focus peaking: Colour selected / threshold setting / colour
False colour: Yes, with Scale
Zebra: Yes, Adjustable
Isolate color channel: Blue Only
Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides: 9:16, 1:1, 191:1, 4:5
Safe areasAction and Graphic
Grid markers: 9 grid
Anamorphic desqueeze: 1.25x 1.33x , 1.5x ,1.8x ,2x
Display Flip: Vertical Only

Onboard Signal Processing
Pulldown Removal: 24/25/30pSF > 24/25/30p (2:2 pulldown)
4K UHD Downscale for HD: Loop out - 4K UHD to FHD
DCI Crop: Loop out - 17:9 to 16:9 Crop

Remote control
HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony
SDI: SDI trigger camera selectable
Serial 2.5mm Jack: LANC control and calibration via optional USB to serial cable
Bluetooth LE: Via optional AtomX SYNC module
Wireless RF: Via optional AtomX SYNC module

External Device Control
Serial 2.5mm Jack: Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE: Via optional AtomX SYNC module to compatible devices
Wireless RF: Via optional AtomX SYNC module to compatible devices

Supported Applications
XML: Cut tag EDL in FCPX XML
Apple ProRes RAW: Apple FCPX, Adobe Premier, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs: All Applications with support for Apple ProRes and Avid DNX in .MOV wrapper

Warranty
Standard: 1 year. Extended to 3 years on product registration

Includes:

Ninja V +
EVA Carry case
5" Protective Monitor sleeve
Battery eliminator
international DC power supply
1x MasterCaddy II
QuickStart Guide
