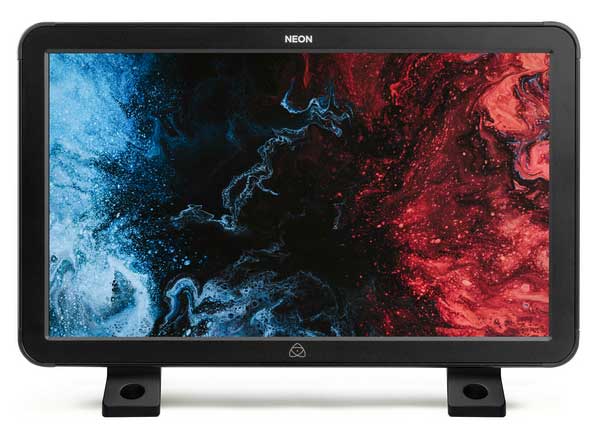

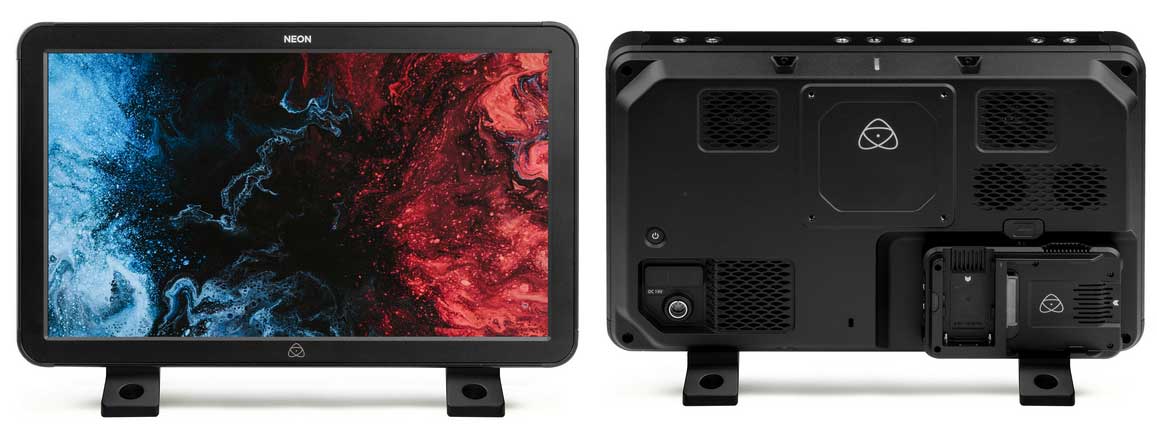

Atomos Neon 17
HD HDR Production Monitor/Recorder

This Atomos NEON 17" 4K HDR Monitor/Recorder is part of the NEON family of monitor/recorders designed to create a consistent viewing and recording pathway for productions. This 17" monitor/recorder features a 1920 x 1080 native resolution while supporting DCI and UHD 4K, as well as 1080p/i and 720p. The monitor provides a clear image well capable of supporting HDR and displaying a 10-bit image that covers 100% of the DCI P3 standard. Its 1000 cd/m² brightness and 128 zones of backlight allow the monitor to achieve a contrast ratio of 1,000,000:1.

The NEON features a Master Control Unit that runs the AtomosOS, controlling the monitor. The Master Control Unit is user-replaceable, so you can have the latest Atomos technology without having to replace the entire monitor. Limited control over the NEON is via an included IR remote, but for full control, it is best to use the downloadable app and your iOS mobile device. Input your video for display via HDMI or SDI (using the included SDI expansion module) and the monitor displays your video. It can also capture your footage as ProRes Raw, ProRes, DNx, or Cinema DNG to a 2.5" SSD (not included) in the Master Caddy II or to a separately available AtomX SSDmini. The monitor features loop-through and cross conversion outputs, and supports both Rec 709 and Dolby Vision.

• 1920 x 1080 Native Resolution
• Supports up to DCI 4K/UHD 4K
• 10-Bit DCI P3 Color Gamut Displayed
• 1000 cd/m² with 128 Backlight Zones

Neon Spec Sheet
